Brakes - Front Brakes Shudder
Date: March 16, 2004Order No.: P-B-42.10/33b
Supersedes: P-B-42.10/33a dated February 6, 2004
Group: 42
Revision: Updated Affected Production Range
SUBJECT:
Model 230.475 up to 07/01/2003 Production
Model 220.170 up to Model Year 2002
Model 220.175 up to Model Year 2002 (Except code (979) Special Protection version)
Model 215.375 up to Model Year 2002
Model 211.065/070 up to 07/01/03 Production (with code (Z04) Special Protection version)
Front Wheel Brake Shudders During Braking
If you receive customer reports in the above model vehicles of front wheel brake shudder during braking, replace the brake disks with revised parts (not necessary to replace brake pads). Reference the following WIS documents for brake disk removal/installation instructions: AR42.10-P-0220R models 211 and 230, and AR42.10-P-02201 models 220 and 215. Brake disks may only be replaced in pairs.
Note:
The brake shudder is the result of excessive thermal loads on the brake disk. The revised brake disks have a smaller cooling duct and therefore greater heat storage capacity.

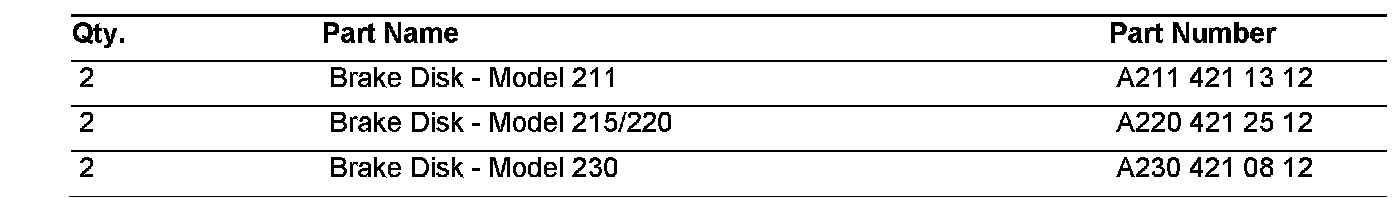

Parts Information

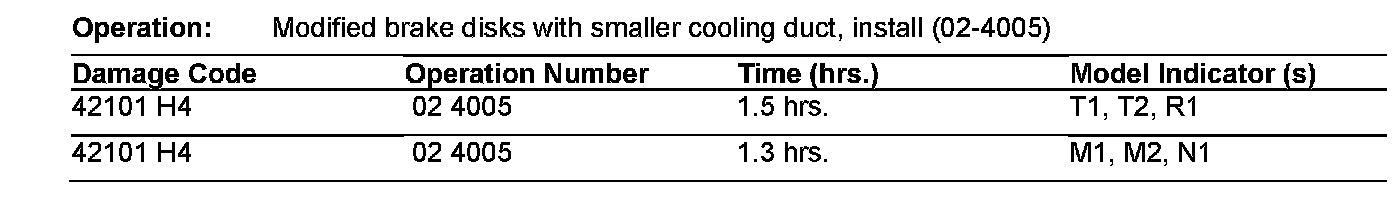

In Case of Warranty
