A/T - No Gear Engagement/No Vehicle Movement
Date: February 2, 2005Order No.: P-B-27.35/52
Supersedes:
Group: 27
SUBJECT:
Model 171.456
Model 171.454/473, Model Year 2006
Model 209.375/475
Model 209.356/456, Model Year 2006
Model 211.070
Model 211.056/087/256/287, Model Year 2006
Model 215.375
Model 219.375
Model 220.170/175
Model 230.475
No Transfer of Power from Automatic Transmission 722.9
Note:
For Information Only!
In the above model vehicles if after replacing the electro-hydraulic control unit on automatic transmission 722.9 (7G-Tronic) you experience the below conditions, this may be caused by an improper installation of the supply pipe for the multi-disc brake B3.
^ No gear can be selected in transmission mode "S" and there is no power flow in the transmission
^ In transmission mode "C" the vehicle can start off as usual.

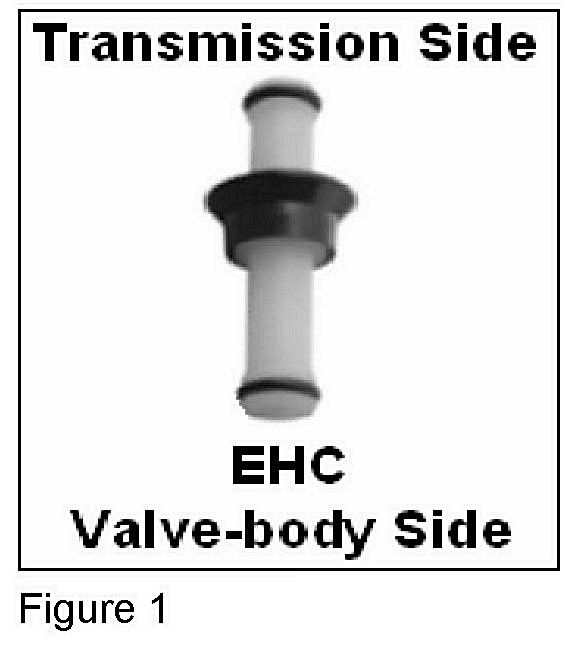

To resolve, remove the electro-hydraulic control unit as described in WIS document AR27.19-P-0200w. Before reinstallation, install the supply pipe (Figure 1) per WIS document AR27.19-P-0200w, step 6. Replacement parts are only necessary if the original pipe was damaged during the original installation of the valvebody.
Parts Information
