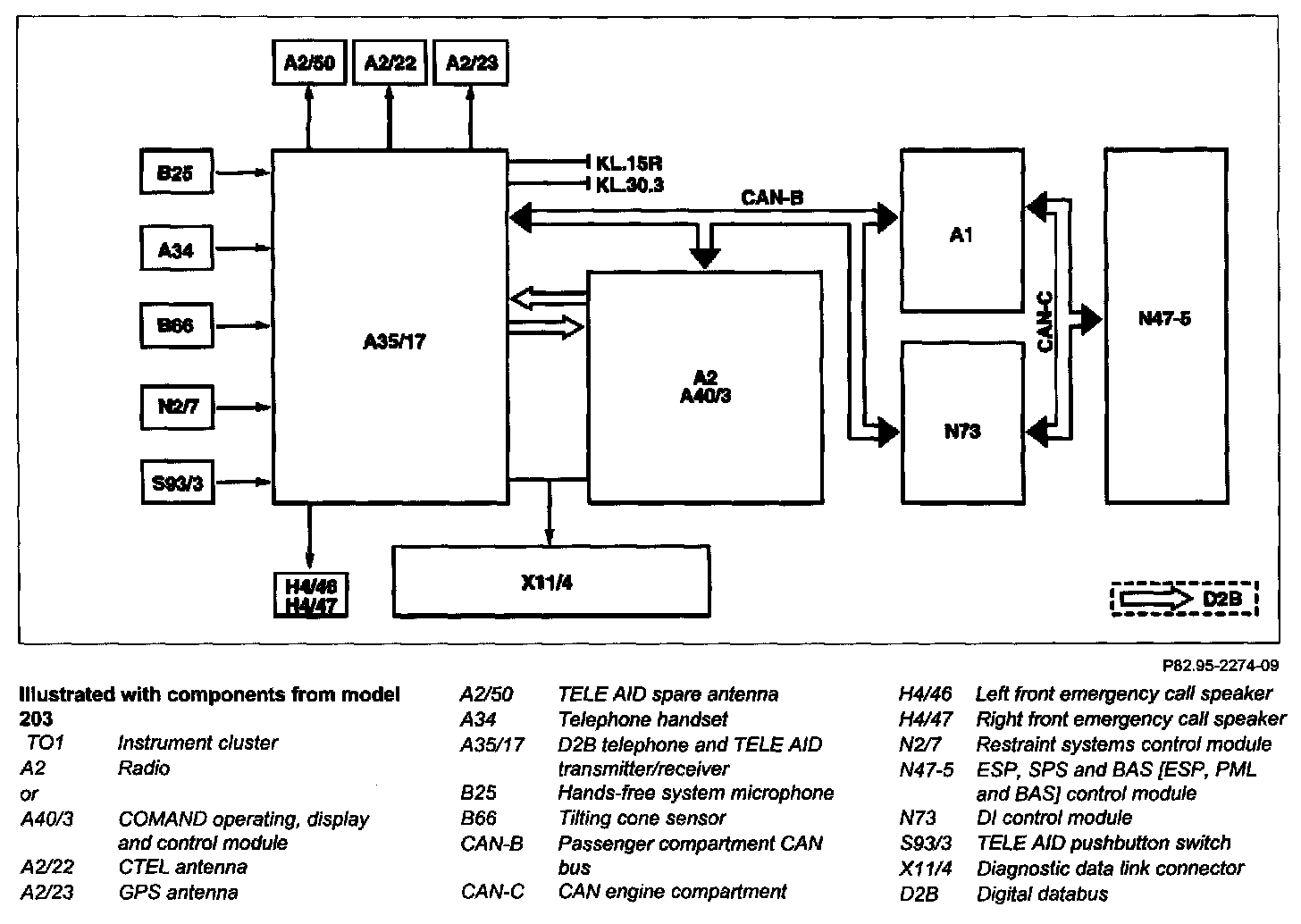

Tele Aid Block Diagram
Tele Aid Block Diagram
Tele Aid Block Diagram
Illustrated With Components From Model 203:
