Seat Heating/Seat Ventilation Switches, Location/Task

Seat Heating/Seat Ventilation Switches, Location/Task

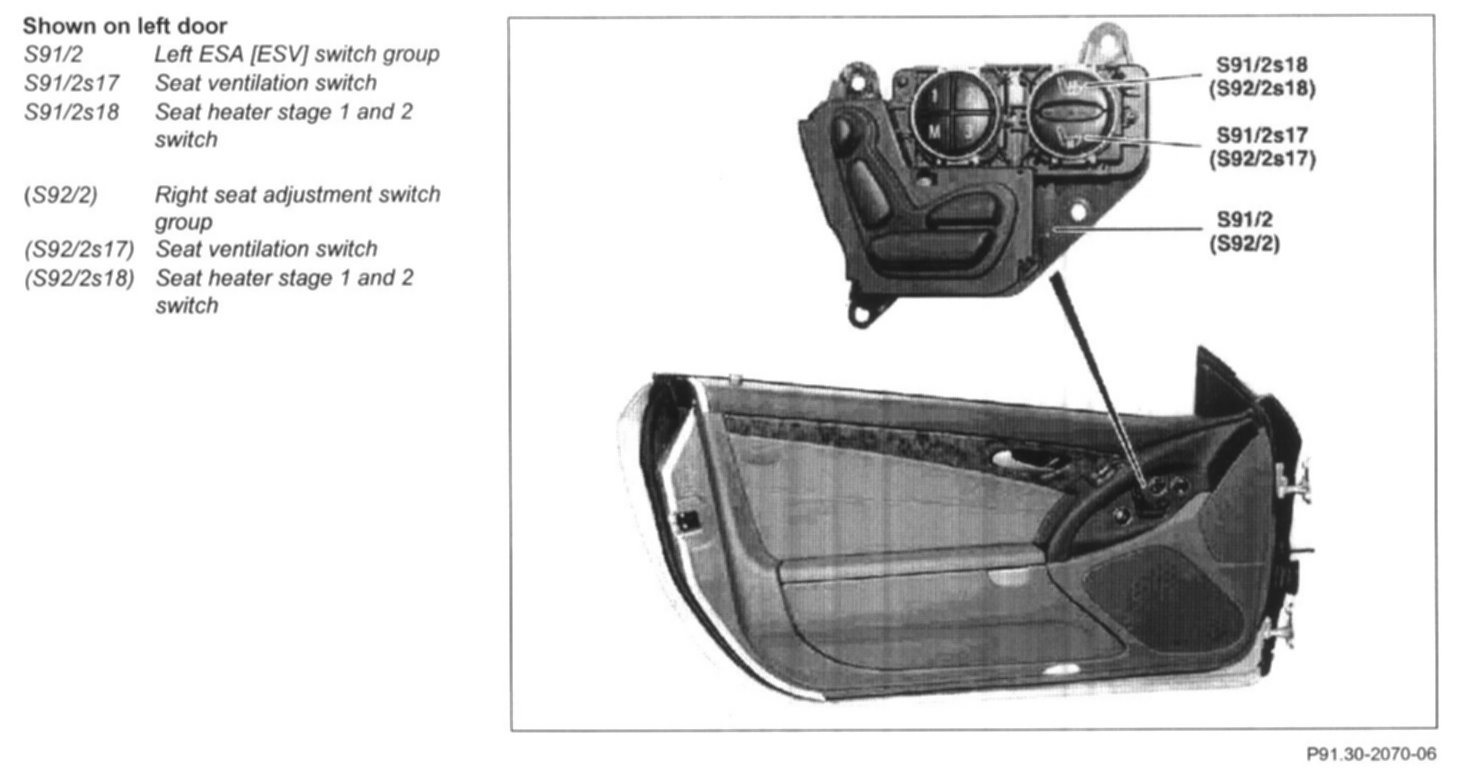

Shown on Left Door:

Location
The seat ventilation switch (91/2s17) and the seat heater stage 1 and 2 switch (S91/2s18) are located in the left seat adjustment switch group (S91/2). These are integrated in the door trim panel on the driver door.

Task
With the seat ventilation switch (91/2s17) and seat heater switch stage 1 and 2 (S91/2s18) the seat heater and the seat ventilation can be switched on and off in stages.The operating state of the seat heater and seat ventilation is indicated in this case by LEDs which are positioned between the switches.
