Camshaft, Lifters and Push Rods: Testing and Inspection

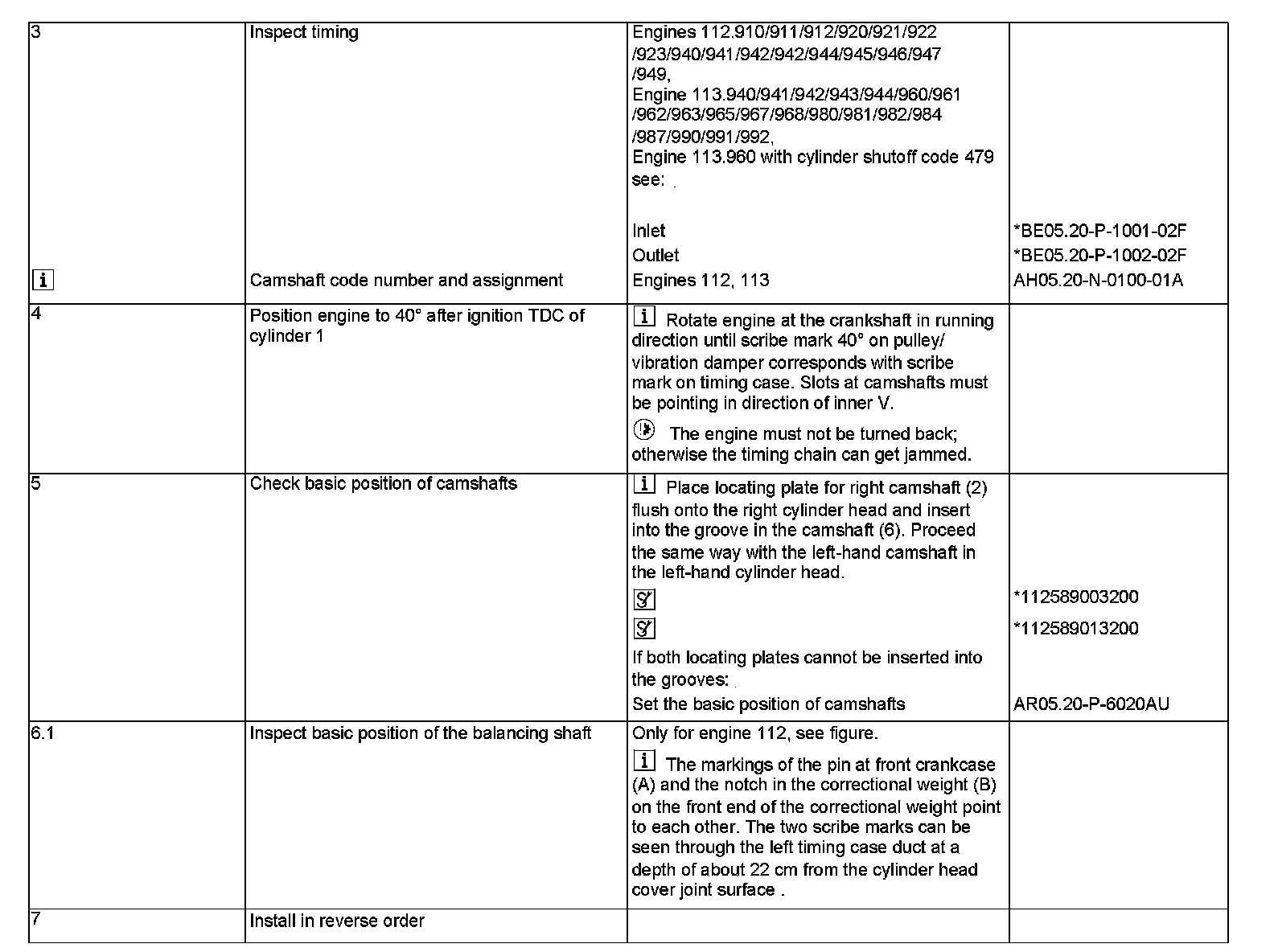

Inspecting timing for engine

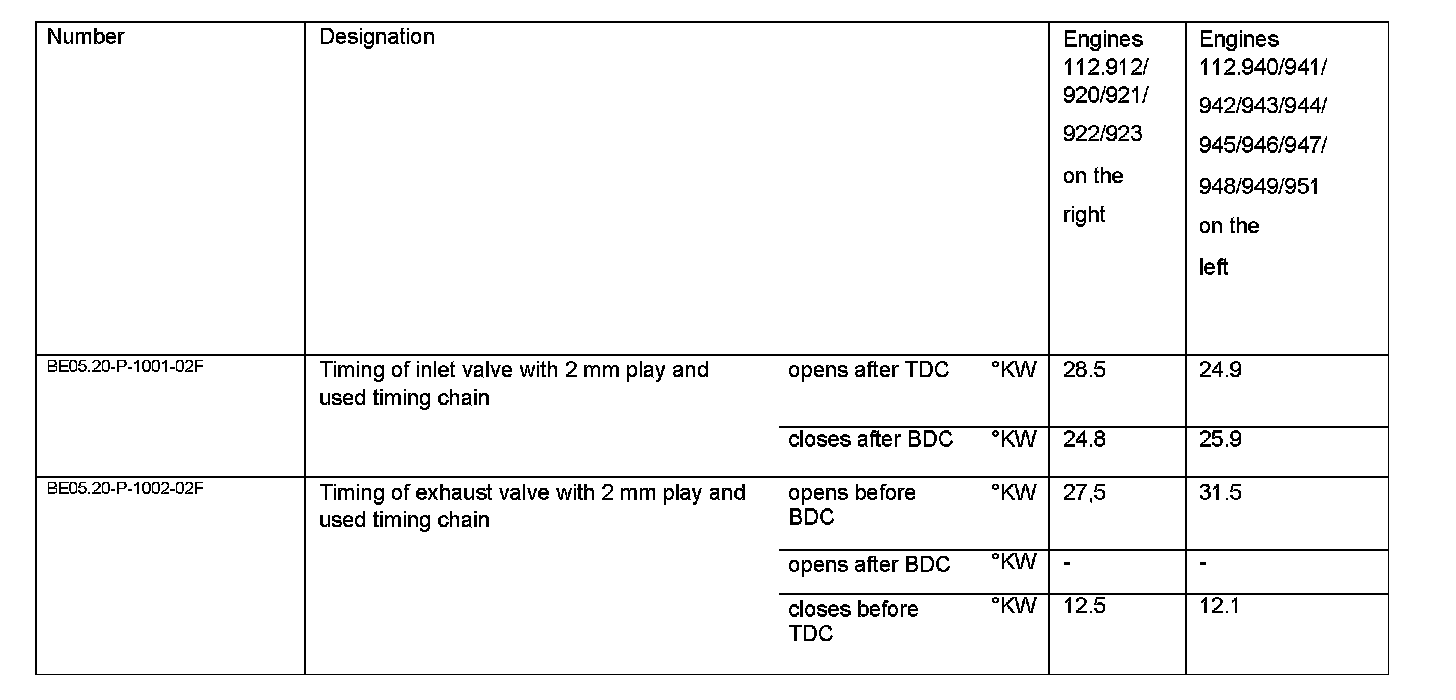

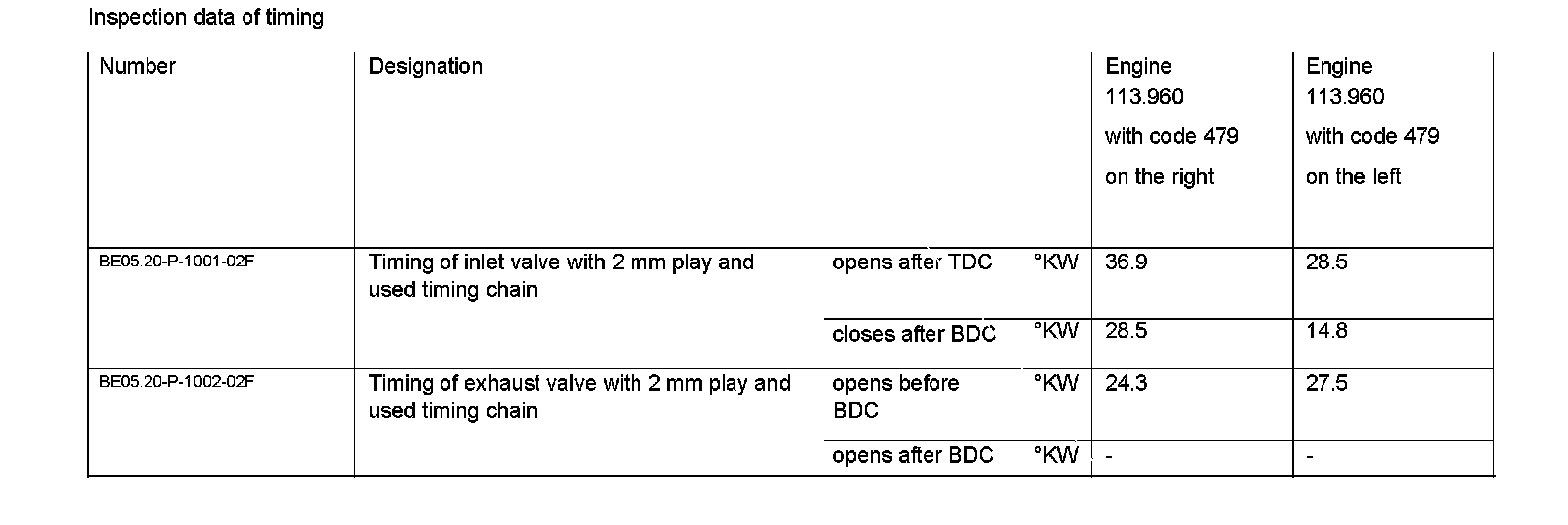

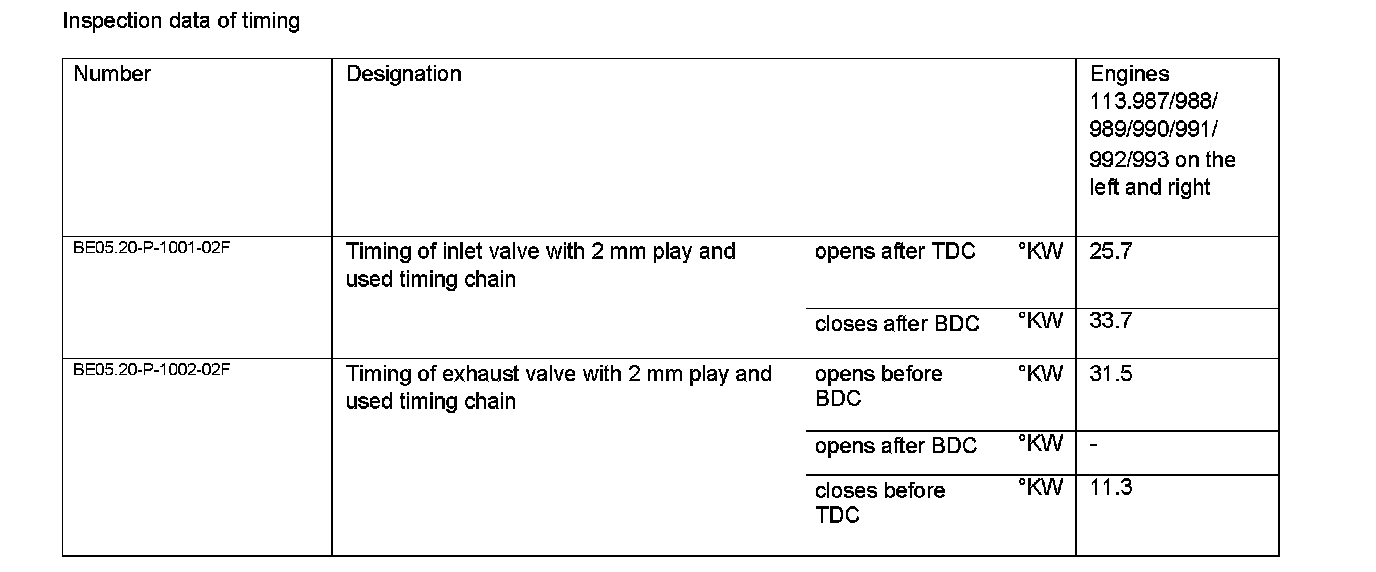

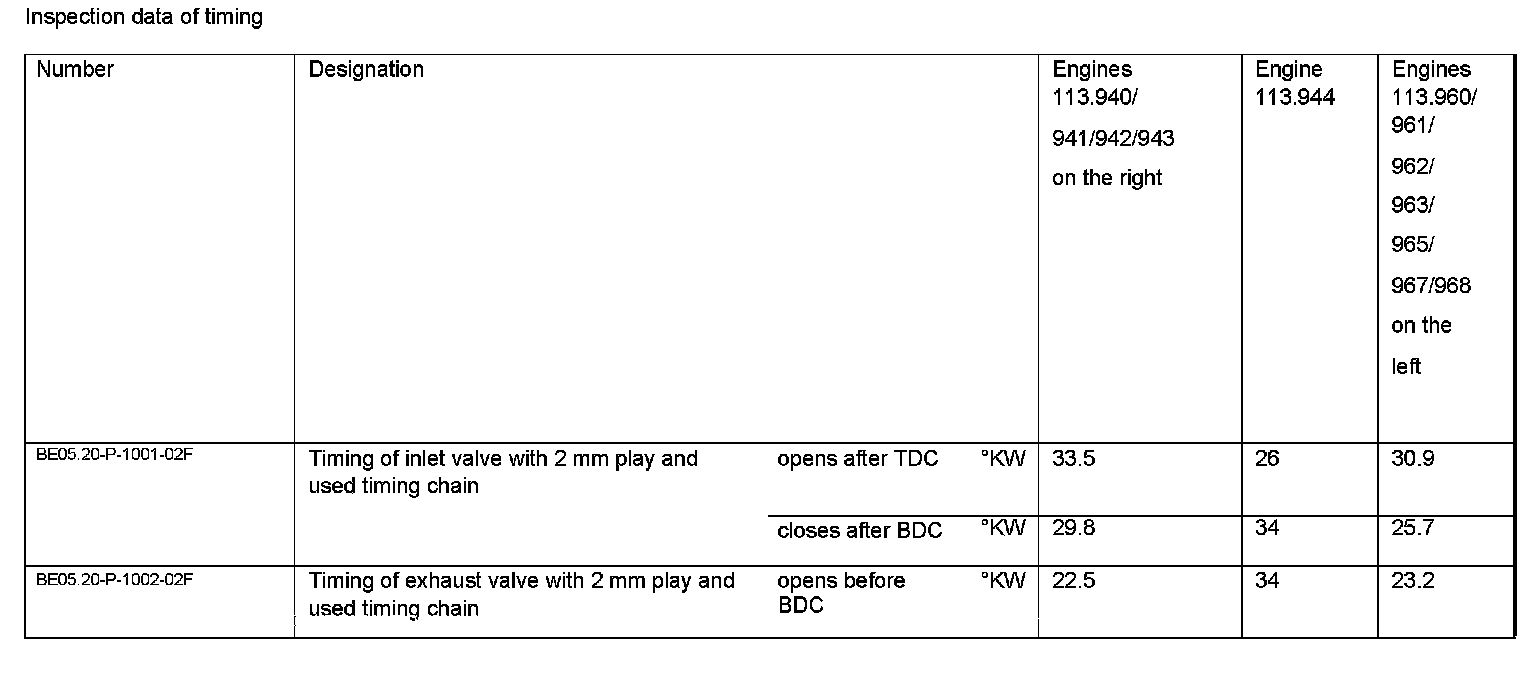

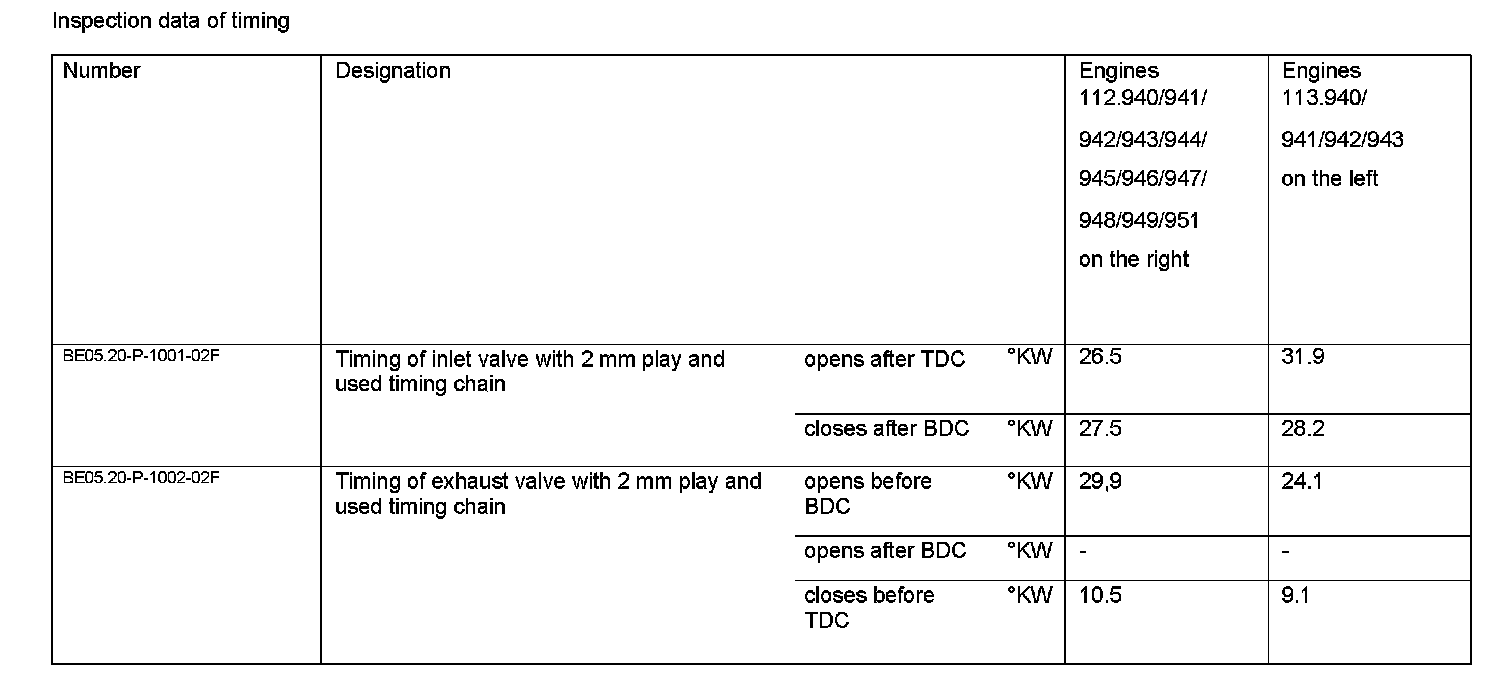

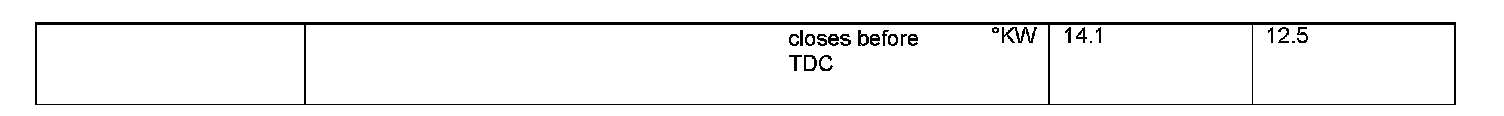

Inspection data of timing:
