GF27.10-P-0001-02RM Automatic Transmission (AT), Mercedes-Benz Driver Information Service

GF27.10-P-0001-02RM Automatic transmission (AT), Mercedes-Benz Driver Information Service
- TRANSMISSION 722.6
- up to 31.8.03

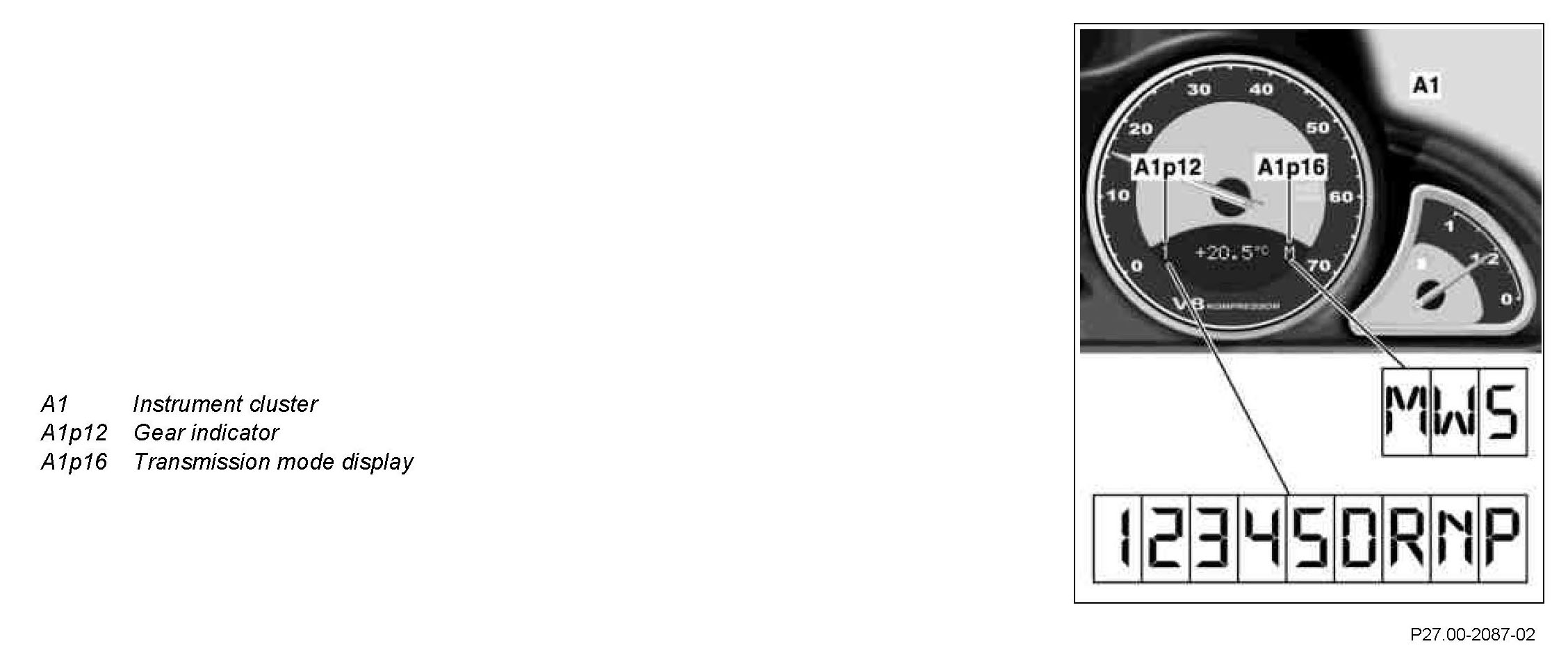

Component Identification:

Gear indicator (A1p12) in instrument cluster (A1) in standard program "S" and in winter program "W"
Informs the driver about which shift range "1", "2", "3", or "4" is currently selected or about the position of the selector lever "D", "R", "N" (neutral), or "P" (park).

Gear indicator (A1p12) in instrument cluster (A1) in manual program "M"
Informs the driver about which gear "1", "2", "3", "4", "5" is currently engaged.

Transmission mode display (A1p16) in instrument cluster (A1)
Informs the driver which program "S" (standard program), "W" (winter program) or "M" (manual program), is selected at the transmission mode switch (S16/5).
