Cabin Air Filter / Purifier: Service and Repair

Replacing Dust Filter for Heating/Ventilation

Model 170

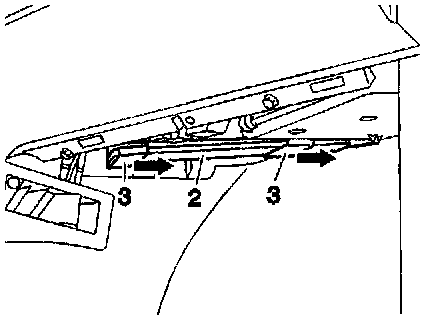

2 Cover
3 Retaining clips







1 Dust filter

Removal and Installation:

1. Remove cover below instrument panel (passenger side).
2. Remove cover (2), after sliding retaining clips (3) in direction of arrow.
3. Pull dust filter (1) out downward (arrows).

NOTE: Never clean the dust filter, always replace.

4. Reinstall in opposite order.
