Home >> Mercedes Benz >> 2003 >> SLK 230 (170.449) L4-2.3L SC (111.983) >> Repair and Diagnosis >> Heating and Air Conditioning >> Heater Core Case >> Service and Repair

Heater Core Case: Service and Repair



Remove/Install Heater Housing

























Component ID

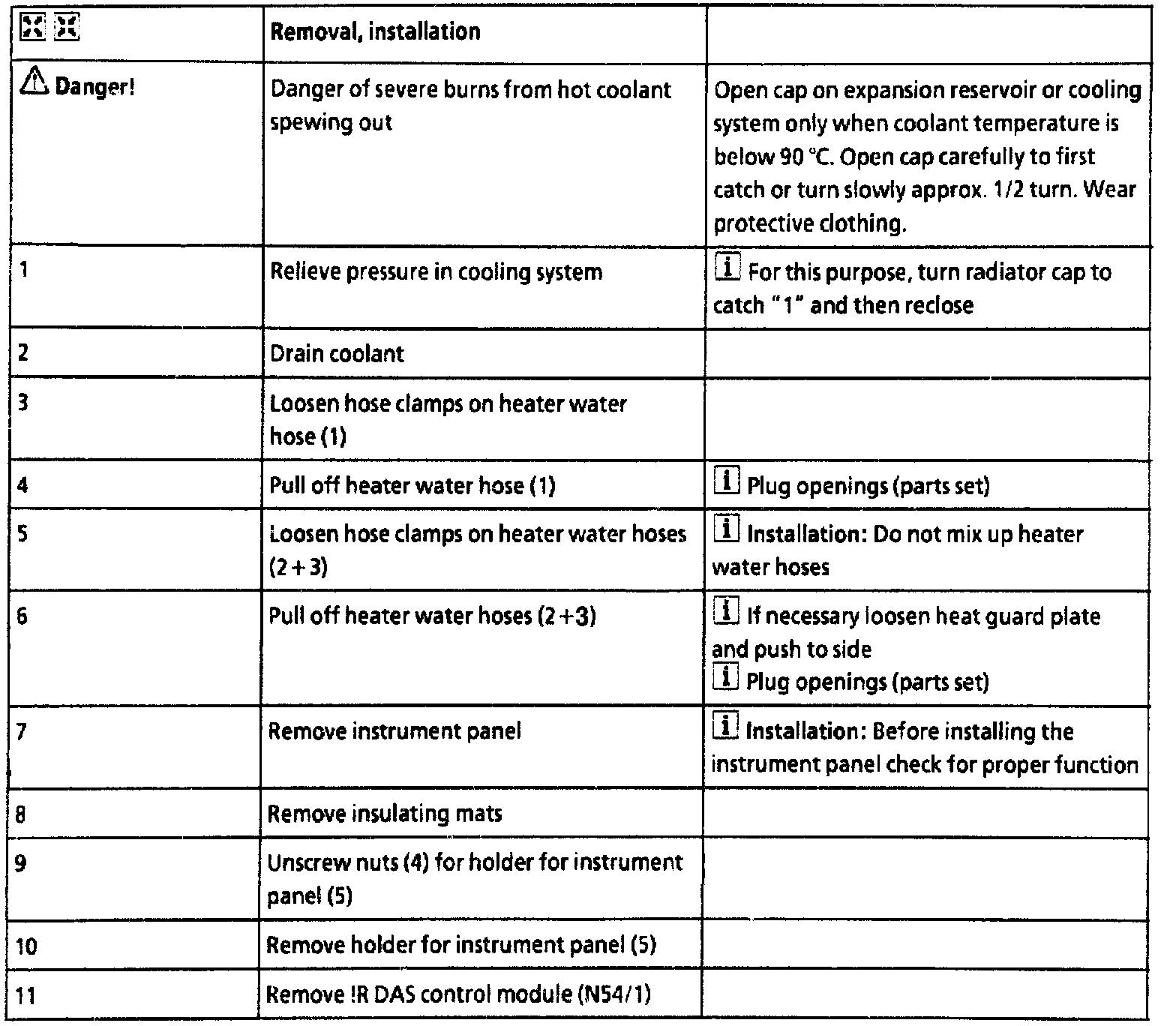

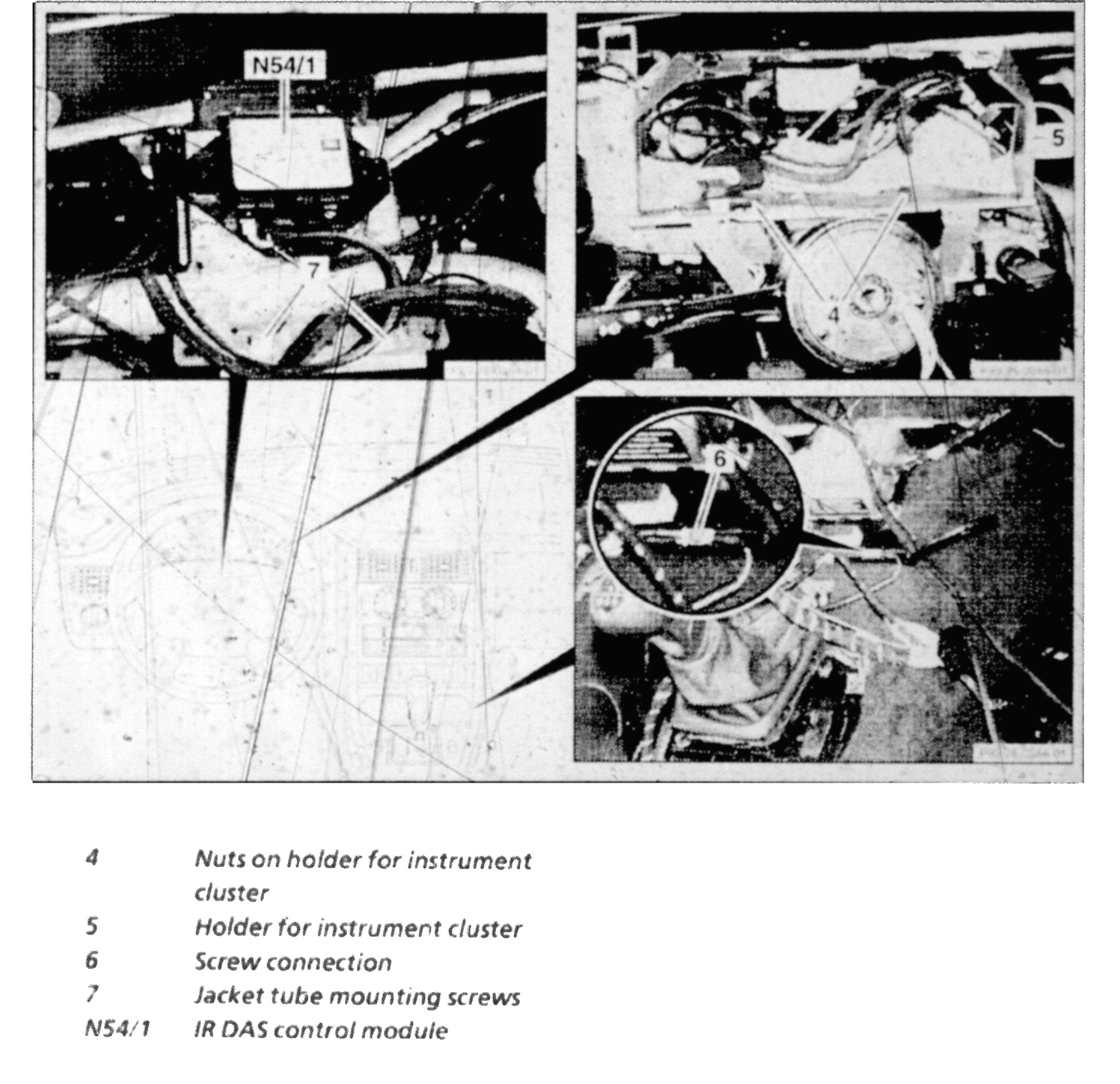

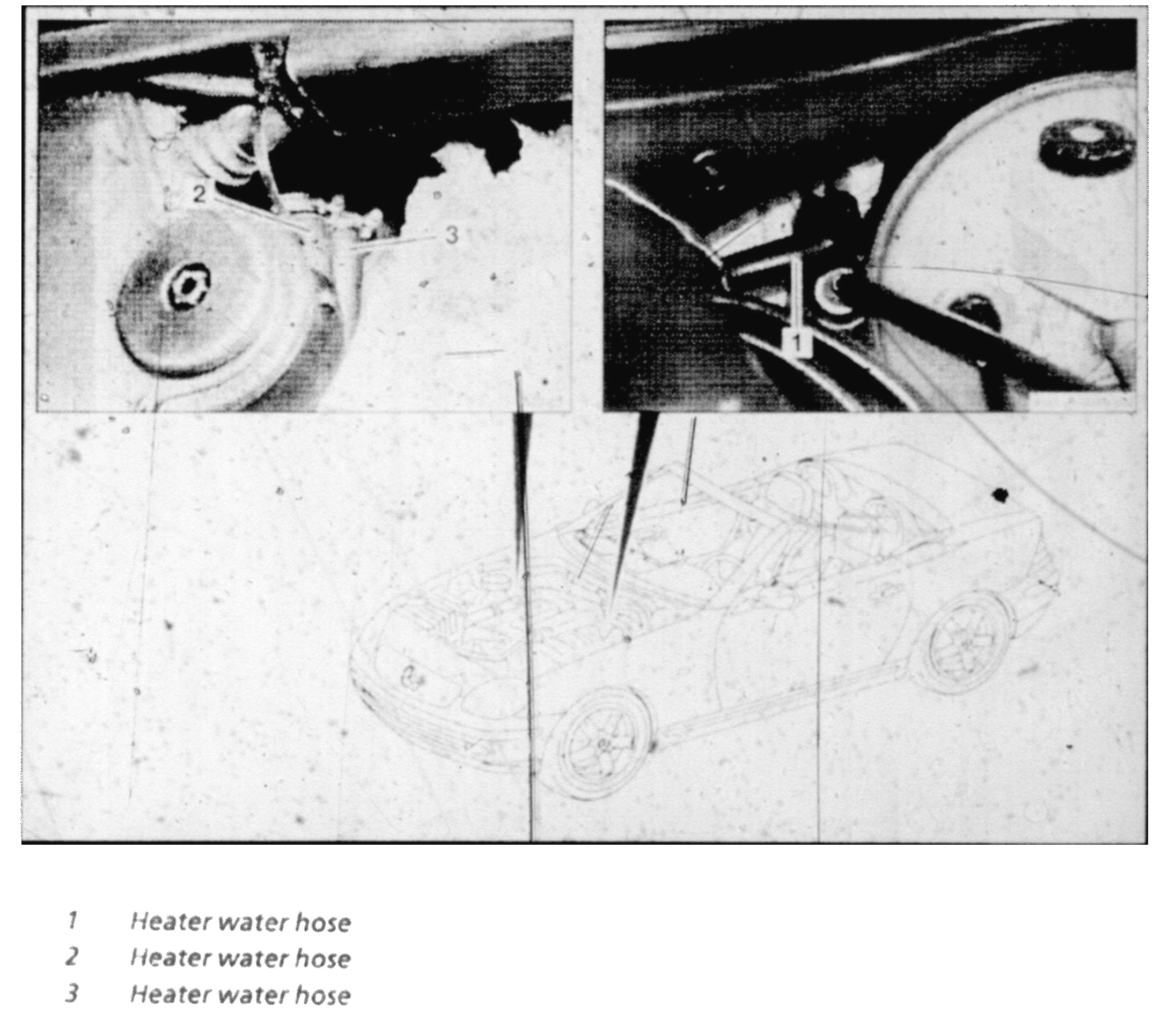

Removal, installation, Part 1 of 2

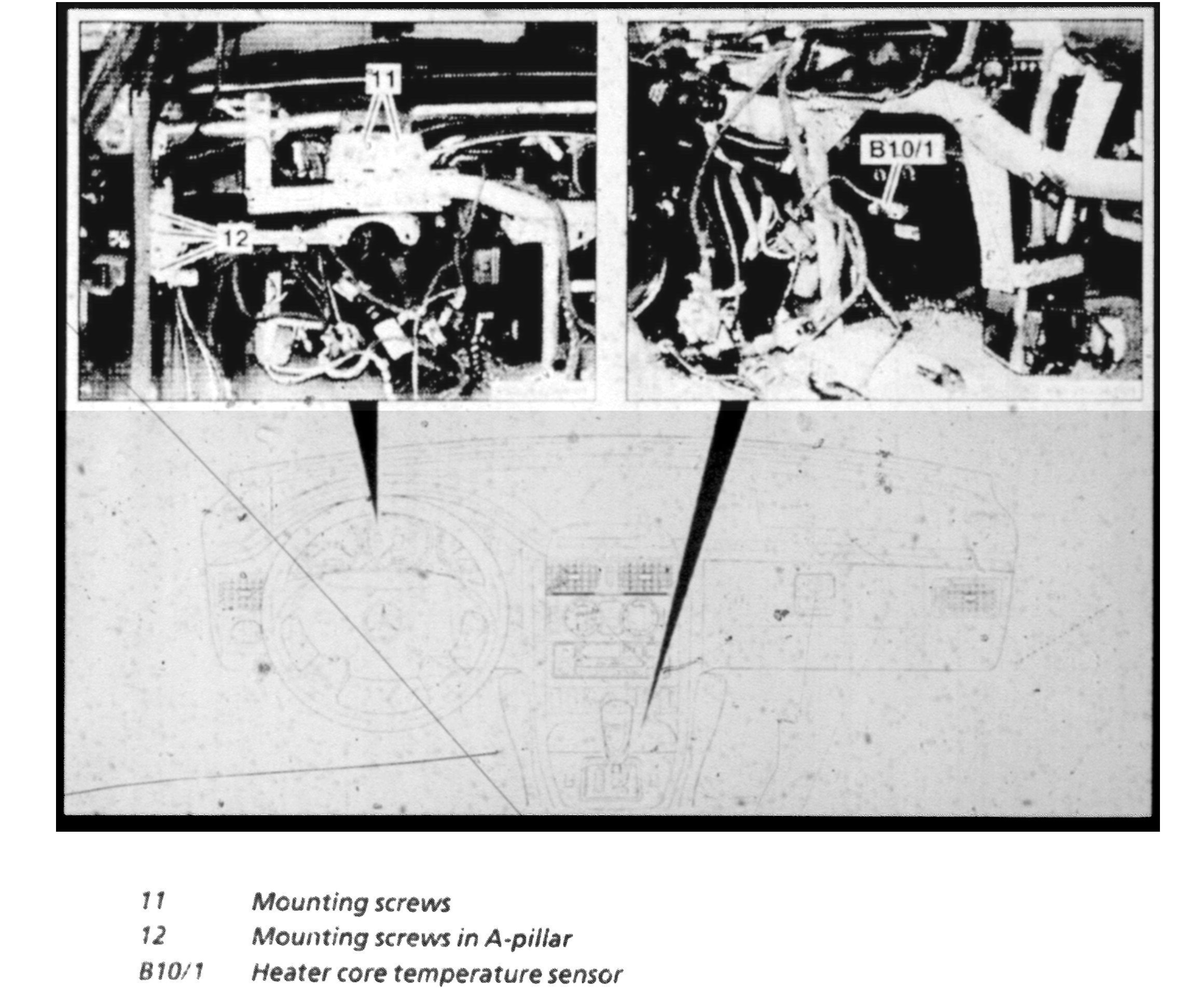

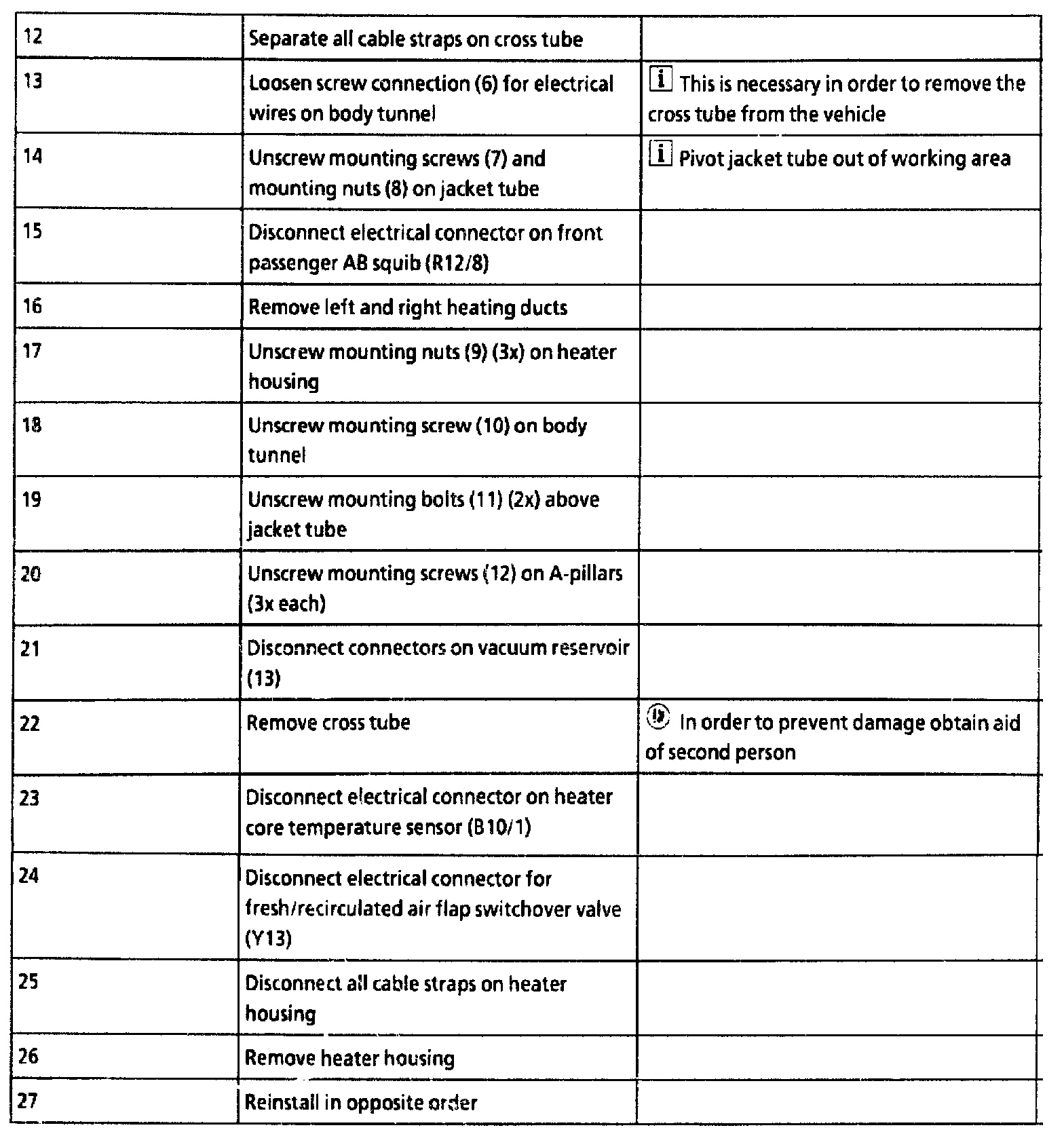

Removal, installation, Part 2 of 2
