Condenser HVAC: Service and Repair
AR83.30-P-6540PA Remove/Install Condenser

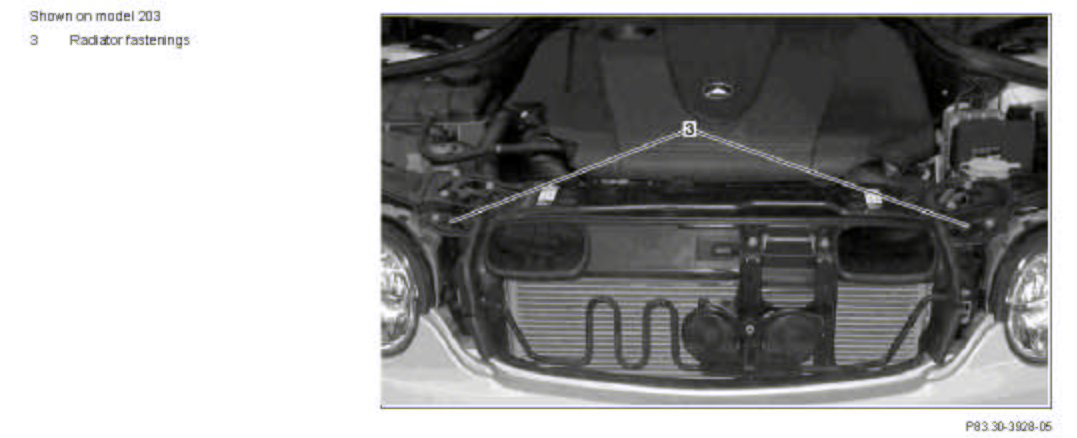

Component Identification:

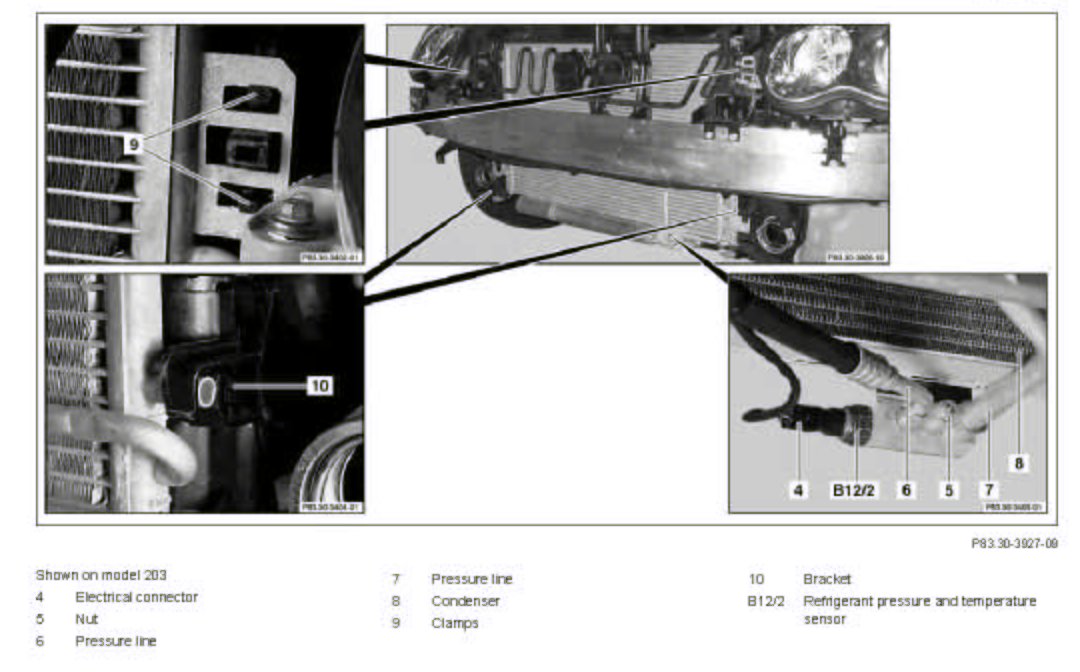

Component Identification:

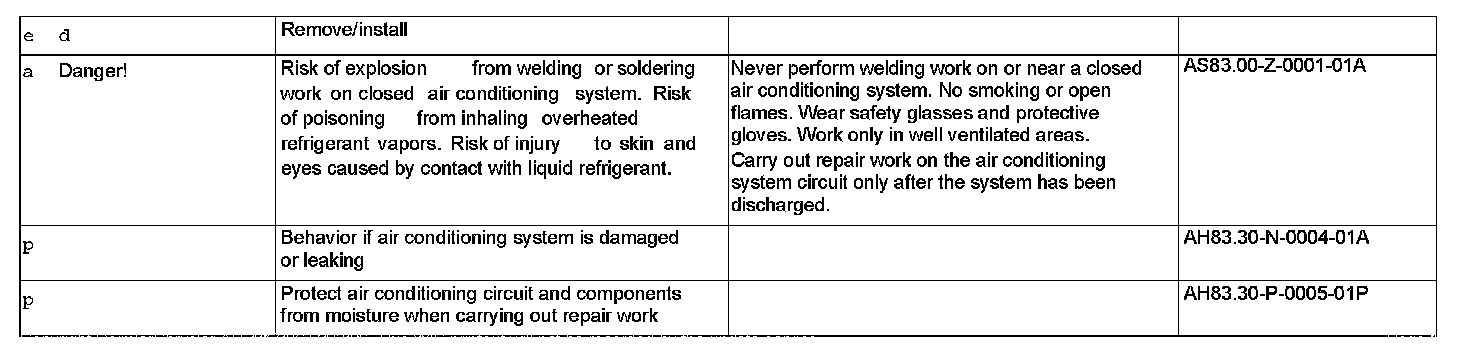

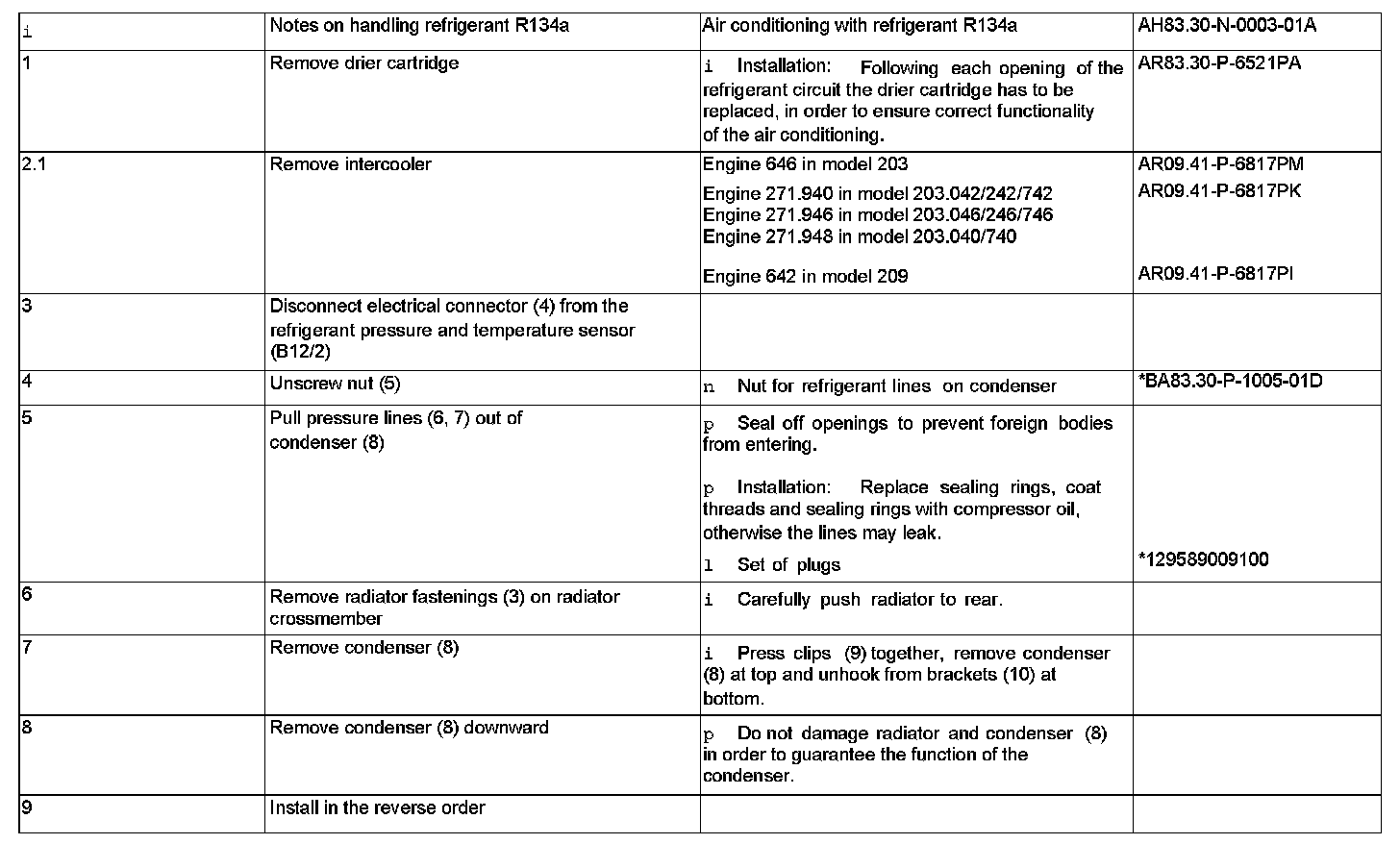

Steps 1 - 9:
Air Conditioning System:

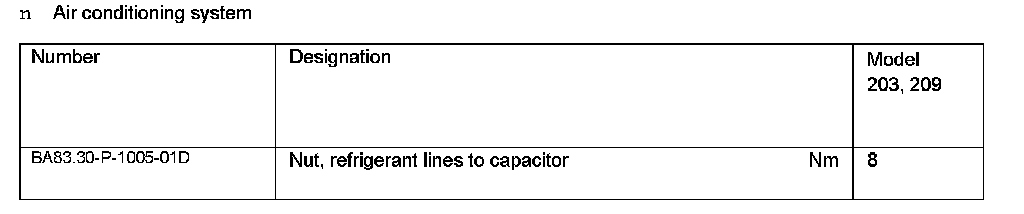

Special Tools:
