GF07.61-P-4024KE ME Fuel Reserve Signal, Function

GF07.61-P-4024KE ME Fuel Reserve Signal, Function
- up to model year 08

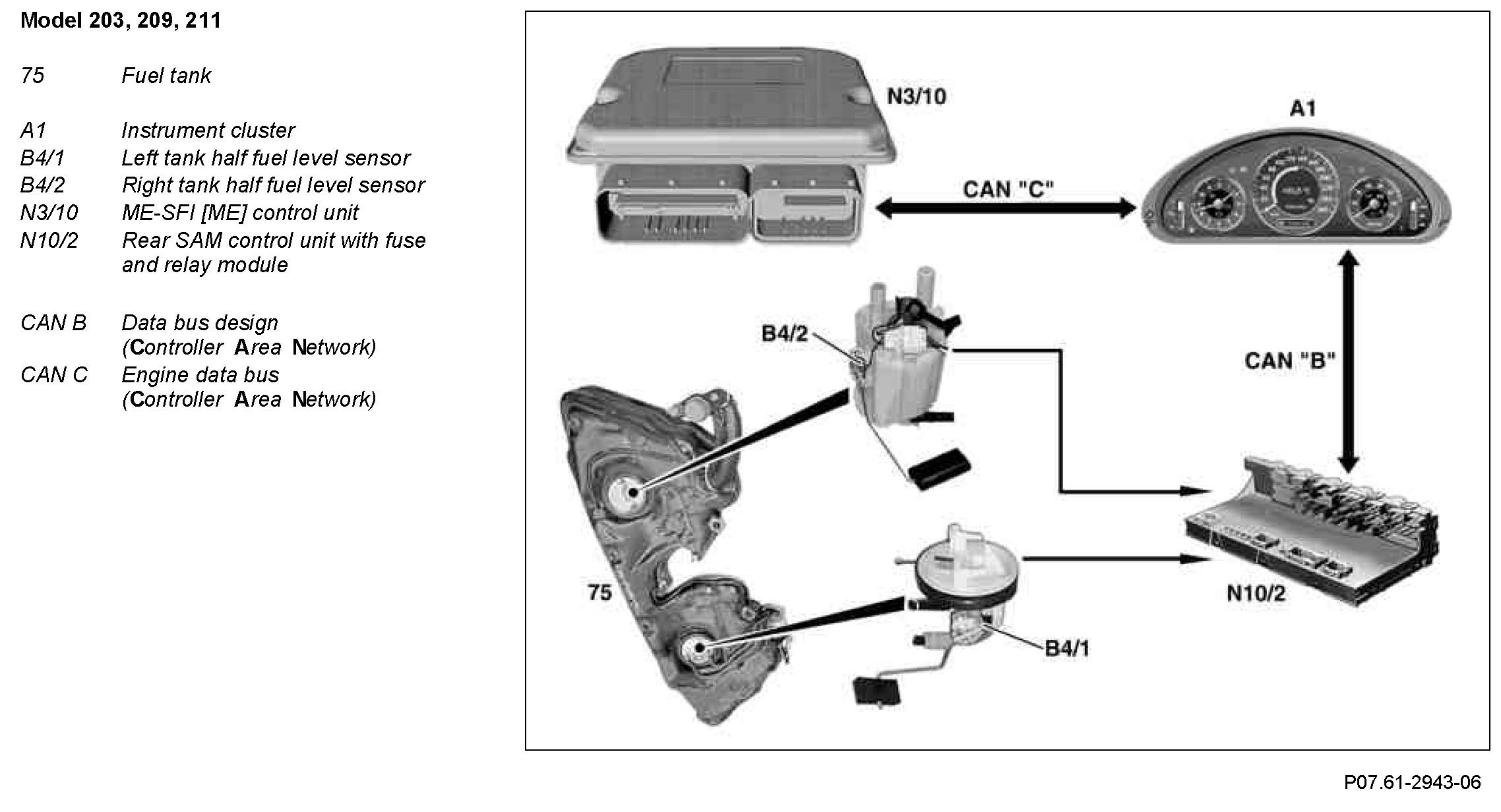

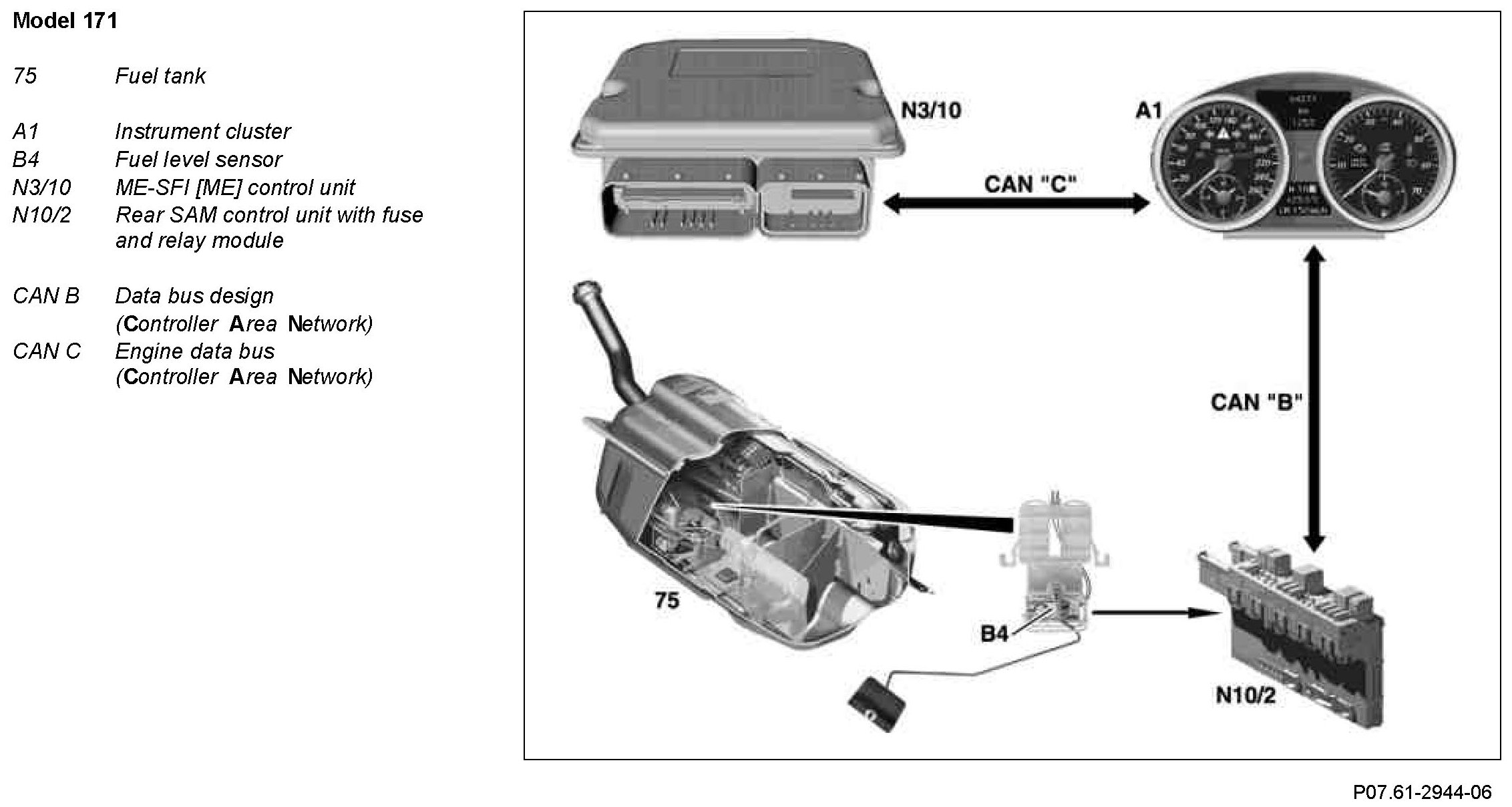

Component Identification:

The fuel reserve signal serves as supplemental information for the ME control unit for detection of combustion misfires through fuel starvation.
The rear SAM control unit evaluates both signals from the fuel level sensor and passes on the information of the fuel level via CAN "B" to the instrument cluster.
The rear SAM control unit evaluates both signals from the fuel level sensor and passes on the information of the fuel level via CAN "B" to the instrument cluster.

At United States of America
If the fuel tank is filled to less than approx. 1/4 or to more than 3/4, the leak test of the fuel system is suppressed. A test for major leakage is still performed.
