D. Configuring the D2B Ring
NOTICEDo not kink optical fibers, route them over sharp edges, or bend them in radii smaller than 25 mm.

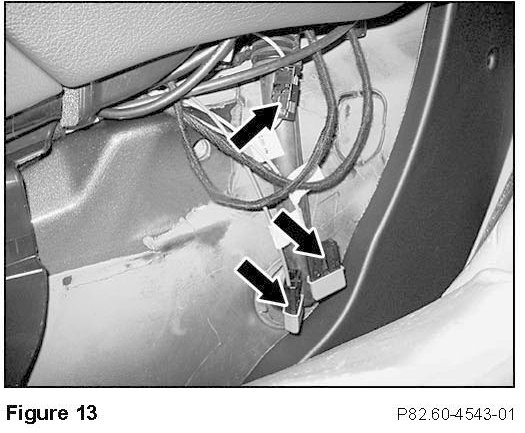

1. Expose the transmission tunnel area by pulling back the passenger side floor covering where it meets the center console (Figure 13).
2. In the exposed transmission tunnel area, find the D2B connectors and coupling (Arrows, Figure 13) and configure the D2B ring according to Figure 15.
Hint:
Connect the fiber labeled "SDARS OUT" to the fiber labeled "CDC IN"
3. In the electronics compartment in the trunk, find the D2B connector-connected to the Tele Aid control module-and the D2B couplings (Figure 14) and configure the D2B ring according to Figure 15.
^ Hint:
Connect the fiber labeled "E-Call IN" to the input of the SDAR control module
