E. Installing the Completed Bracket Assembly

E. Installing the completed bracket assembly

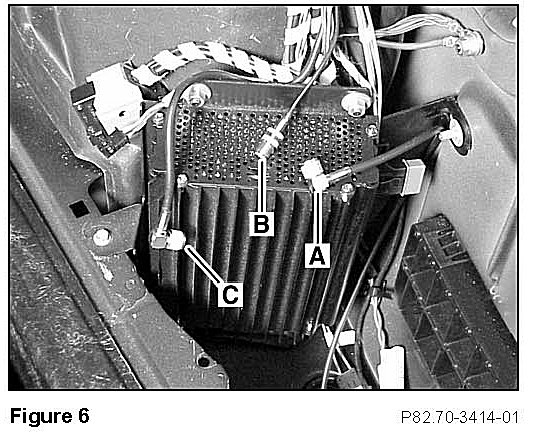

1. Disconnect the Tele Aid antenna cable (B, Figure 6) from the integrated bumper antenna cable (A, Figure 6) located in the right area of the trunk (Figure 6).

2. Place the completed bracket assembly near the point of installation and connect the integrated bumper antenna cable (A, Figure 6) to the antenna switch jack labeled "ANTENNA."

3. Connect the Tele Aid antenna cable to the antenna switch jack labeled "EMERGENCY."

4. Connect the 25-pole Y-cable connector to the mating pre-wire harness of the vehicle side.

5. Remove the protective cap from the D2B optical connector and connect it to the PSE module receptacle.

6. Route the fiber optic cable between the PSE and linear compensator.

NOTICE
Handle the fiber optics with care. The fibers must remain free of kinks, sharp bends, and abrasions.

7. Connect the 4-pole connector to the antenna switch.





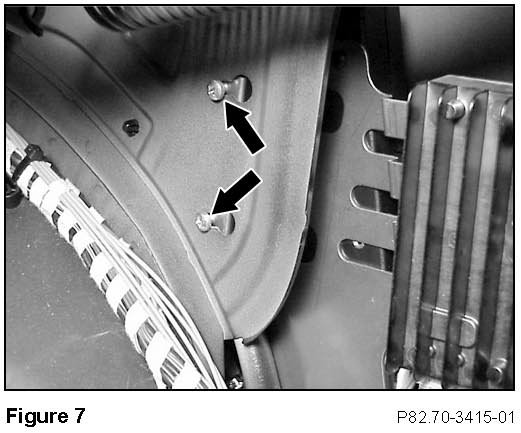

8. Thread the two sheet metal screws halfway into the mounting bracket tabs (Figure 7 [shows the bracket already mounted]).

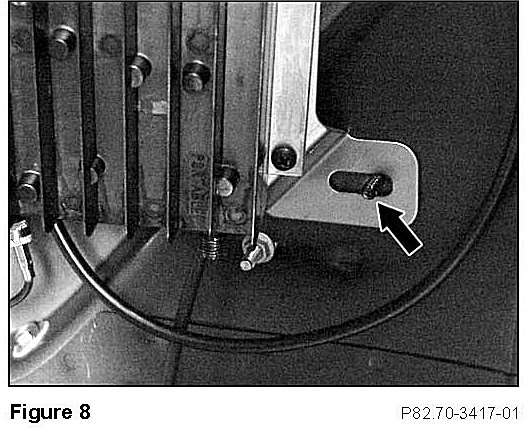

9. Seat the completed bracket assembly by placing the two screws extending from the tabs through the backside of the mounting plate (Figure 7) and the slot of the adjacent mounting tab over the quarter-panel stud (Figure 8).

10. Connect the coaxial cable coming from the center console (C, Figure 6) to the linear compensator jack labeled "PORTABLE."

11. Tighten the two sheet metal screws and then thread the supplied flange nut onto the stud and tighten.
