Cell Phone - Voice Activated Cell Phone Installation: Overview
Date: August 2003Order No.: P-I-82.70/284
Supersedes:
Group: 82
SUBJECT:
MODEL 203.040/061/064/065/081/084 (Sedan)
MODEL YEAR 2004
VOICE ACTIVATED CELLULAR TELEPHONE INSTALLATION
We are interested in your comments and/or suggestions regarding these installation instructions.
WARNING
Do not disconnect the negative battery cable. Extensive reprogramming requirements will otherwise be necessary. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN SEVERE VEHICLE DAMAGE. PERSONAL INJURY. OR DEATH FROM ELECTRICAL SHOCK. Keep the ignition and radio powered OFF through the final test.
Application Specific D2B Notes:
^ Telephone, voice control, and (if COMAND is installed) Tele Aid fibers are installed in the vehicle at the factory. The fibers run along the right side of the vehicle to the right quarter panel and the front of the trunk floor.
^ Fiber reconfiguration is necessary for any accessory installation.
^ The vehicle is factory configured for Tele Aid If equipped with COMAND. The vehicle is factory configured for the sound system amplifier, if so equipped.

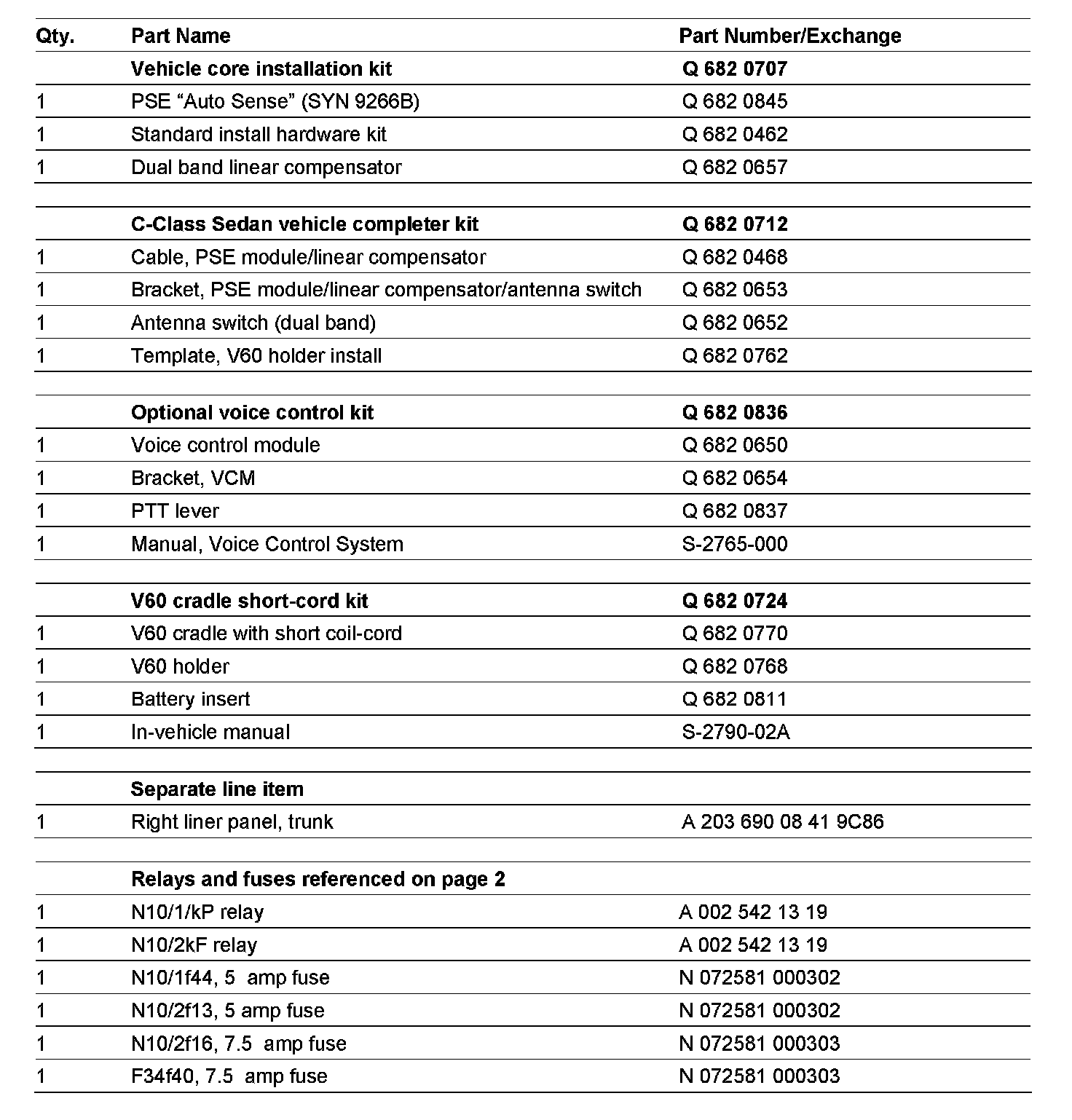

Parts Information
