AR82.62-P-8103PA Remove/Install Screen Antenna

AR82.62-P-8103PA Remove/Install Screen Antenna

Rear Window Antenna Structure:

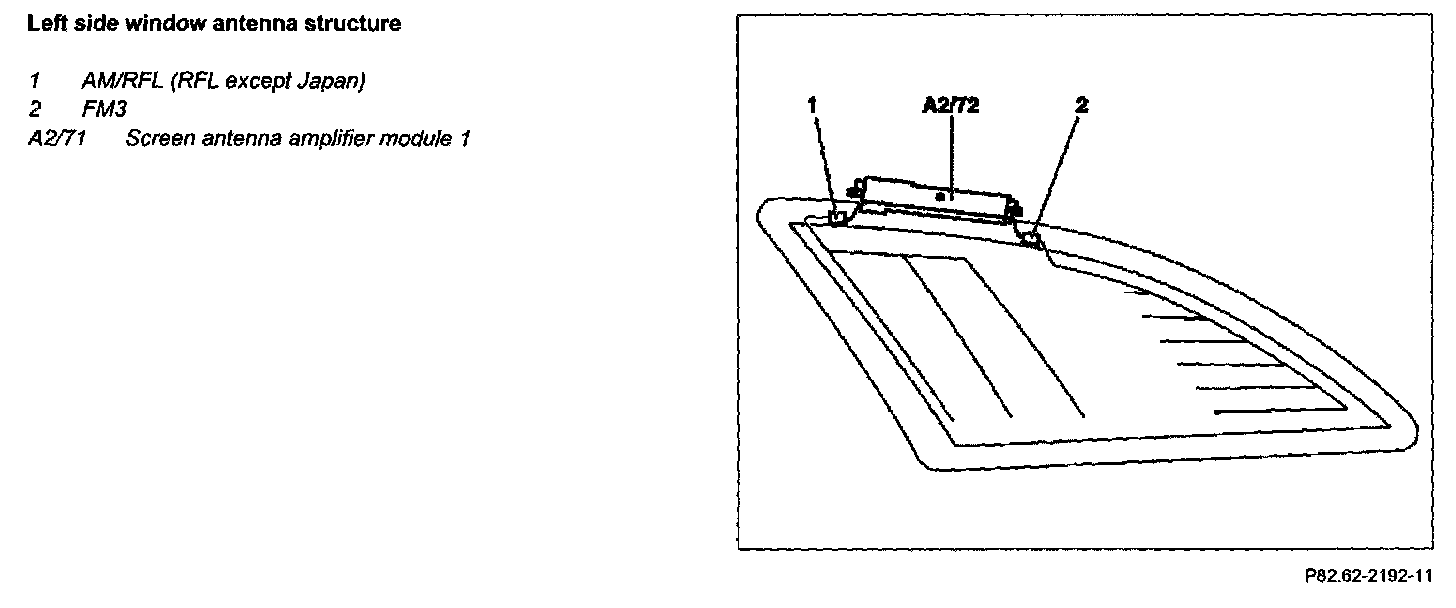

Left Side Window Antenna Structure:

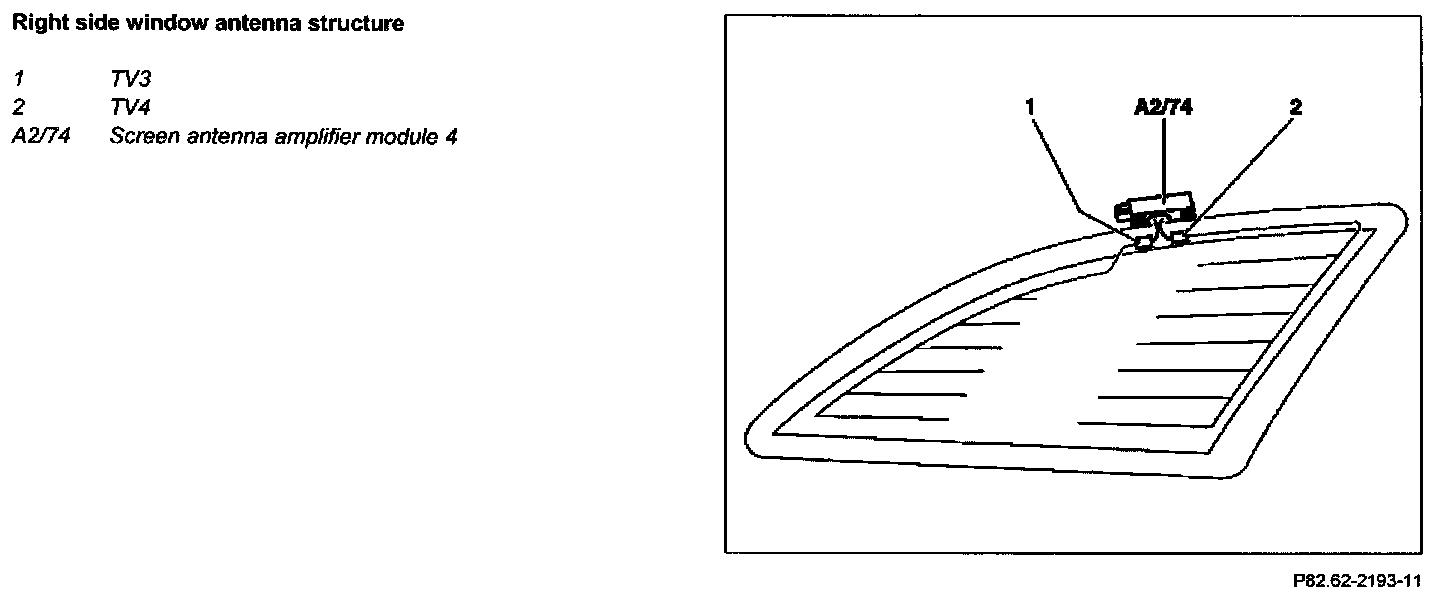

Right Side Window Antenna Structure:

1 Remove window of rear door

NOTE: The FM1, FM2, GPS, TV1, TV2 and RFL antennas are integrated in the rear window only for Japanese version (code 498); if a fault exists in the antenna or antennas, replace the rear window.

2 Remove left side window

NOTE: The AM, FM3 and RFL antennas (not Japanese version, code 498) are integrated in the left side window; if a fault exists in the antenna or antennas, replace the left side window.

3 Remove right side window

NOTE: The TV3 and TV4 antennas are integrated in the right side window; if a fault exists in the antenna or antennas, replace the right side window.

4 Install in the reverse order
