AZ54.65-P-0001-06MS Route Wiring Harness And Connect

AZ54.65-P-0001-06MS Route Wiring Harness And Connect
- 203.2## 1#






1 Ultrasonic PTS wiring harness
62 18-pin connector for EPH ultrasonic control module
N10/2 6-pin blue connector, rear SAM control module with fuse and rear module
X35/29 Black 8-pin connectors for EPH ultrasonic rear bumper
X35/37 White 6-pin connector for rear warning indicator






1 Route PTS ultrasonic (1) for ultrasonic PTS control module (62) to rear SAM control module with fuse and relay module (N10/2) and fasten with felt strap.
2 Connect tie-out with white 6-pin connector to counter connector for rear warning indicator connector (X35/37).






3 Route tie-out with 6-pin blue connector to rear SAM control module with fuse and relay module (N10/2) and connect to plug location marked in blue (see magnified section).
4 Route tieout for ultrasonic backup assist wiring harness (1) with 8-pin connector to cargo threshold through left side compartment along present leads and fasten.






5 Route tieout for ultrasonic backup assist wiring harness (1) to right side of vehicle below cargo threshold along present leads and fasten with four cable straps.

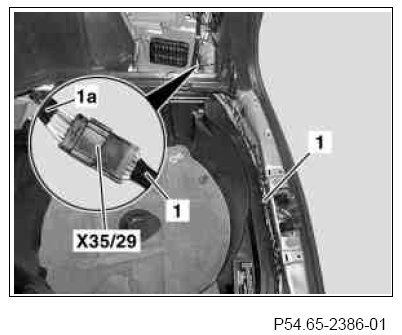

6 Connect ultrasonic backup assist wiring harnesses (1) and ultrasonic sensor wiring (1a) using connector (X35/29).

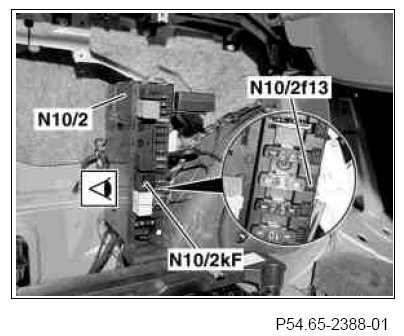

7 Install rear SAM control module with fuse and relay module (N10/2)
8 Fit fuse 13 (N10/2f13) with a 5A fuse.
Check whether relay 1 circuit 15R (N10/2kF) is inserted in plug location F, if not, connect relay 1
