Trunk / Liftgate: Adjustments

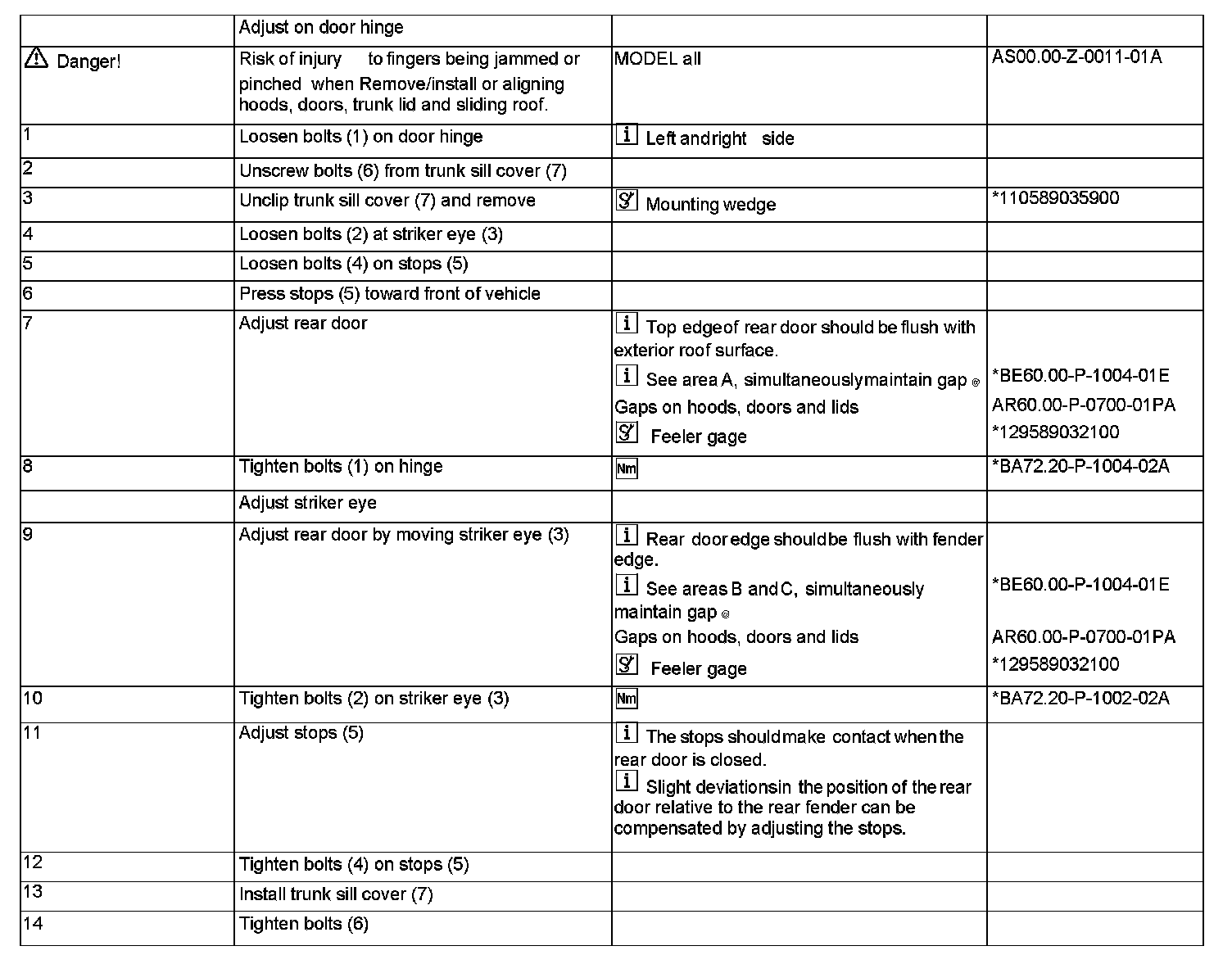

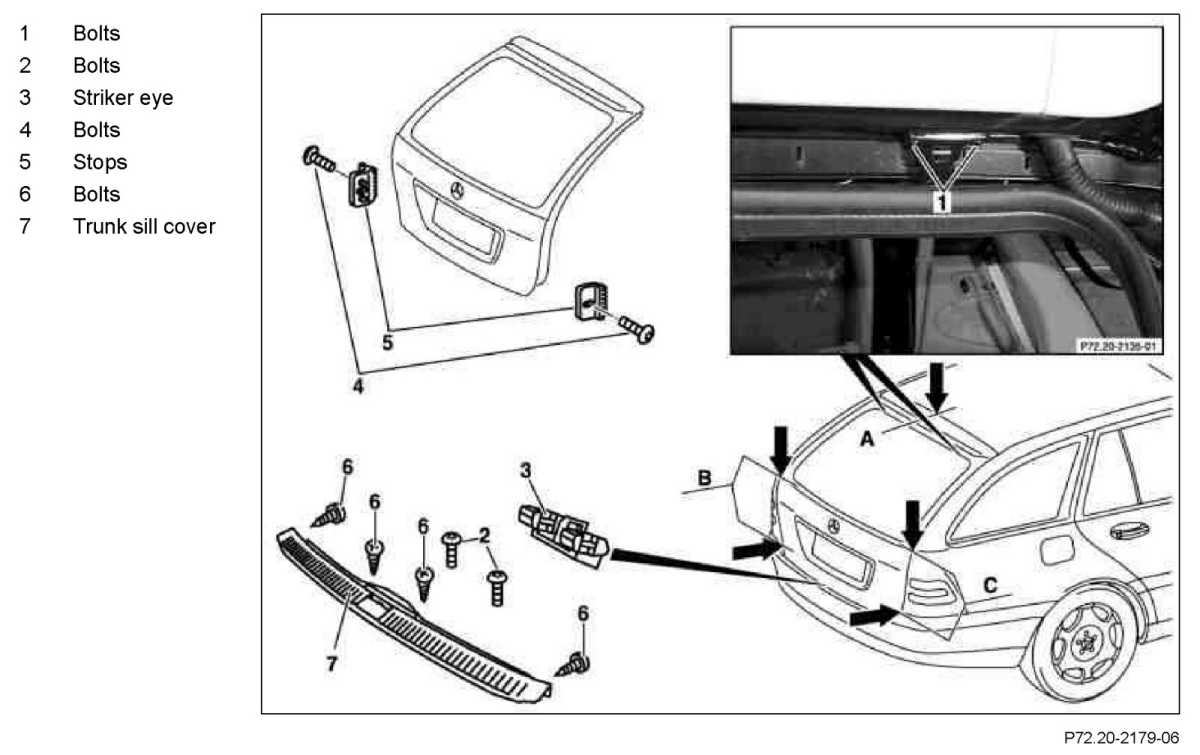

AR72.20-P-3510PA Adjust Rear-End Door

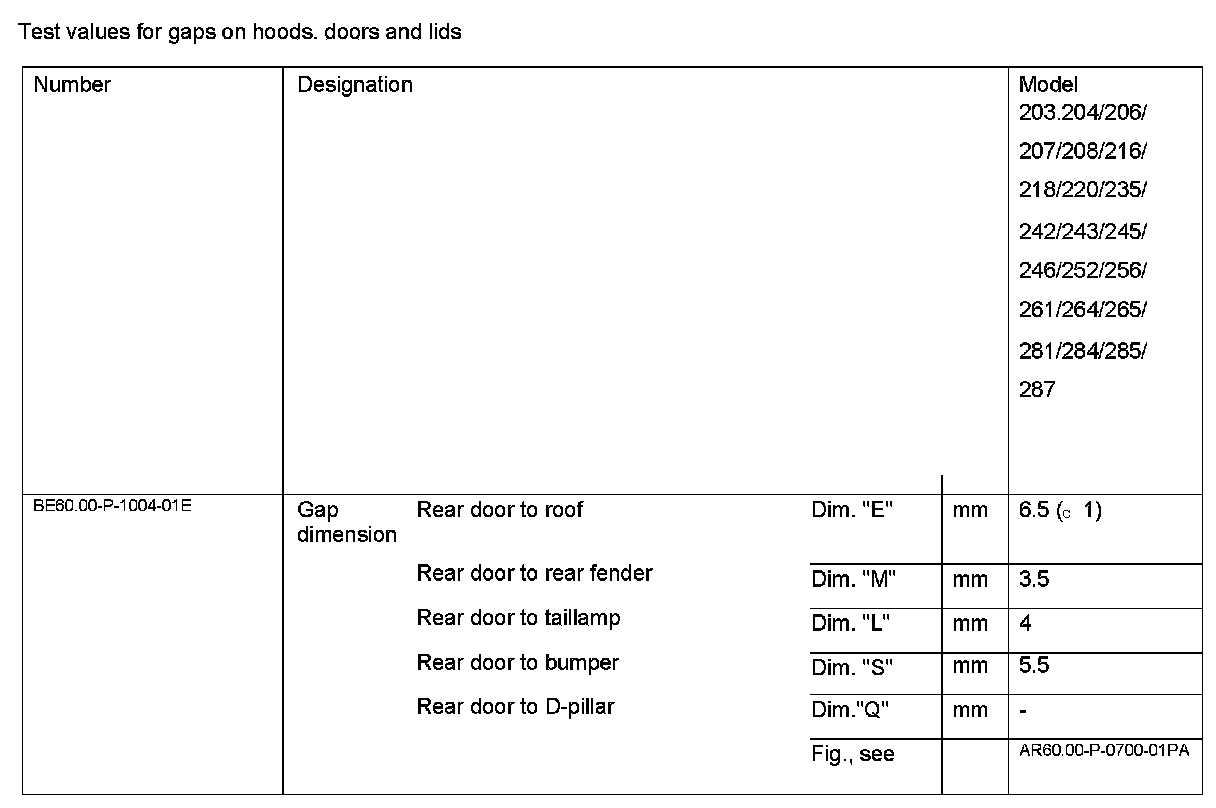

Test Values For Gap On Hoods, Doors and Lids:
Rear Door:
