GF82.30-P-3002PQ Backup Wiping, Function

GF82.30-P-3002PQ Backup Wiping, Function

MODEL 203.2 as of 24.4.04 up to Model Year 8

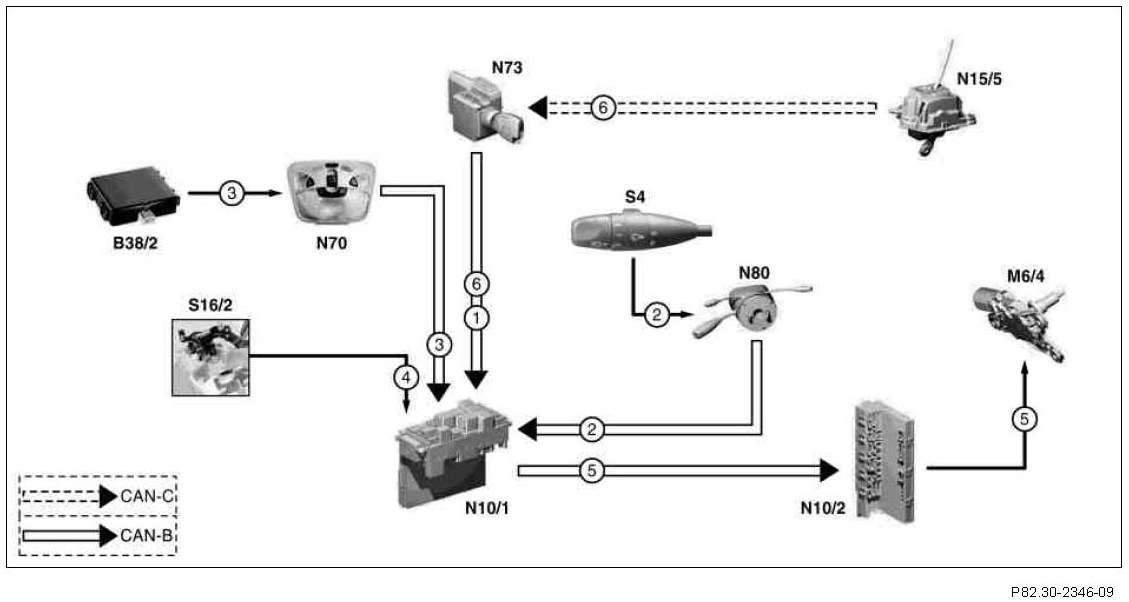

1 Circuit status
2 Request signal
3 Degree of wetting
4 Reverse gear signal (on transmission 716)
5 Rear wiper actuation
6 Selector lever position (with transmission 722)

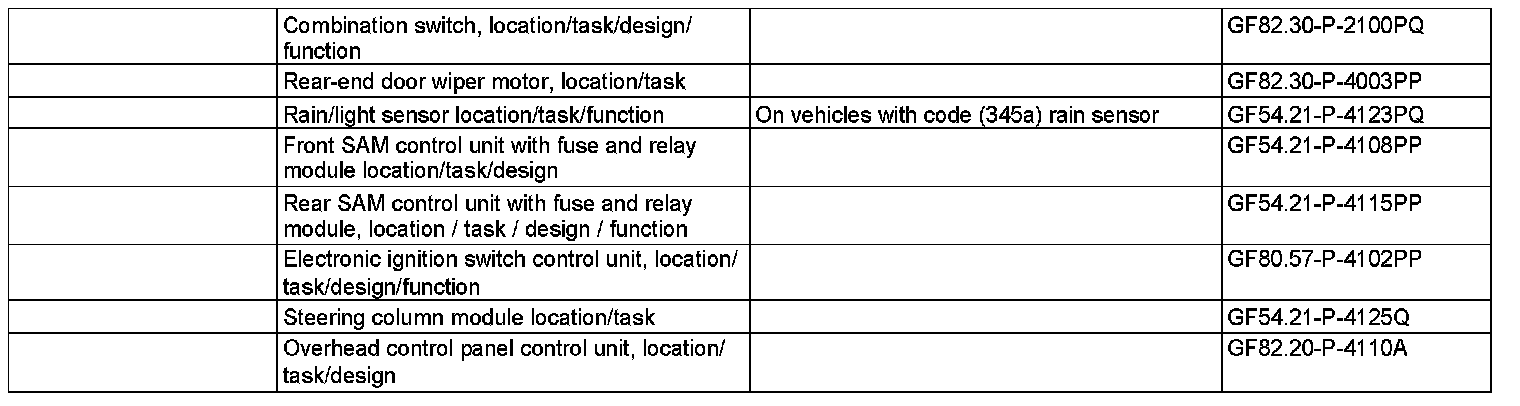

B38/2 Rain/light sensor (with code (345a) rain sensor)
M6/4 Tailgate wiper motor
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit
N70 Overhead control panel control unit
N73 DI control unit
N80 Steering column module
S4 Combination switch
S16/2 Backup lamp switch
CAN-B Controller area network bus class B (interior compartment) (CAN B)
CAN-C Controller Area Network bus, class C (engine compartment) (CAN C)

Function prerequisites:
- Circuit 15 ON

Function
When the vehicle is reversing, the rear window wiper system (WSA) actuation depends on the position selected at the combination switch (S4) for the windshield wipers.
If the reverse gear is engaged while the windshield wiper system (WSA) is switched on, the rear-end door wiper motor (M6/4) is actuated by the rear SAM control unit with fuse and relay module (10/2) as follows:

Continuous wipe
If the combination switch (S4) is in position "II" or "III" while the vehicle is reversing.

Rain sensor operation
on vehicles with code (345a) rain sensor:
If the combination switch (S4) is in position "I" (windshield ) and the vehicle is reversing, then the rear-end door wiper motor (M6/4) is actuated analog to the wiper motor for the windshield.

Cancellation conditions:
- No reverse gear signal
- Front wipers switched off
