GF82.35-P-3001PQ Rear Window Washer, Function

GF82.35-P-3001PQ Rear Window Washer, Function

MODEL 203.2 as of 24.4.04 up to Model Year 8

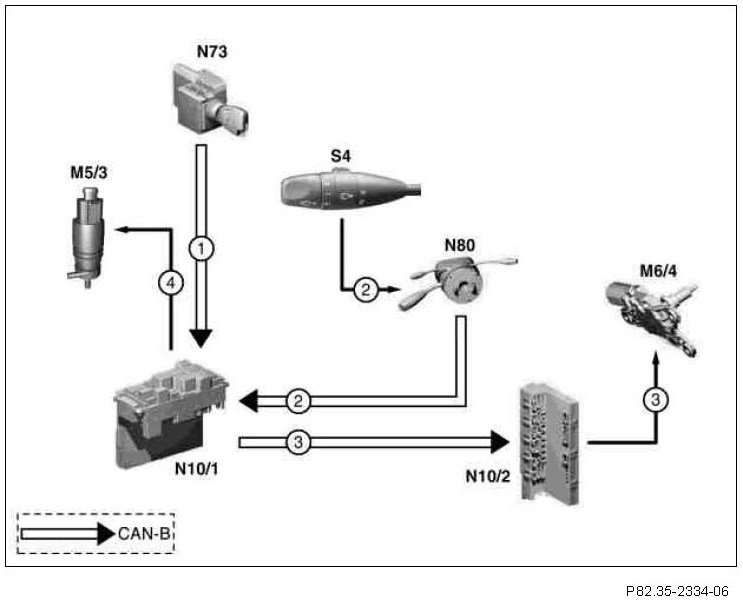

1 Circuit status
2 Request signal
3 Rear-end door wiper motor (M6/4) actuation
4 Tailgate washer fluid pump actuation (M5/3)
M5/3 Tailgate washer fluid pump
M6/4 Tailgate wiper motor
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N73 DI control unit
N80 Steering column module
S4 Combination switch
CAN-B Controller area network bus class B (interior compartment) (CAN B)

Function prerequisites:
- Circuit 15R ON

Function
The washing function is activated by rotating and holding the combination switch (S4) in position "I" (rear window). In this case the rear-end door washer fluid pump (M5/3) is actuated directly by the front SAM control unit with fuse and relay module (N10/1).

The request to wash the rear window is read by the front SAM control unit with fuse and relay module (N10/1) via CAN-B and transmitted to the rear SAM control unit with fuse and relay module (N10/2).

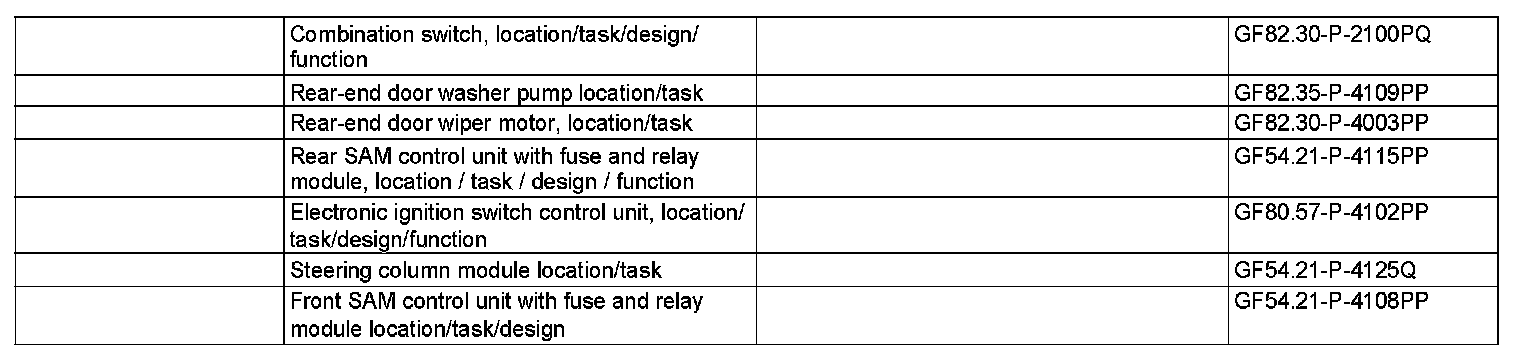

The rear SAM control unit with fuse and relay module (N10/2) then actuates the rear-end door wiper motor (M6/4).
