GF54.65-P-0001-02H Parktronic System (PTS), Location Of Components

GF54.65-P-0001-02H Parktronic System (PTS), Location Of Components
- MODEL 203.0 /2 /7
- with CODE (220) Parktronic system (PTS) up to Model Year 8

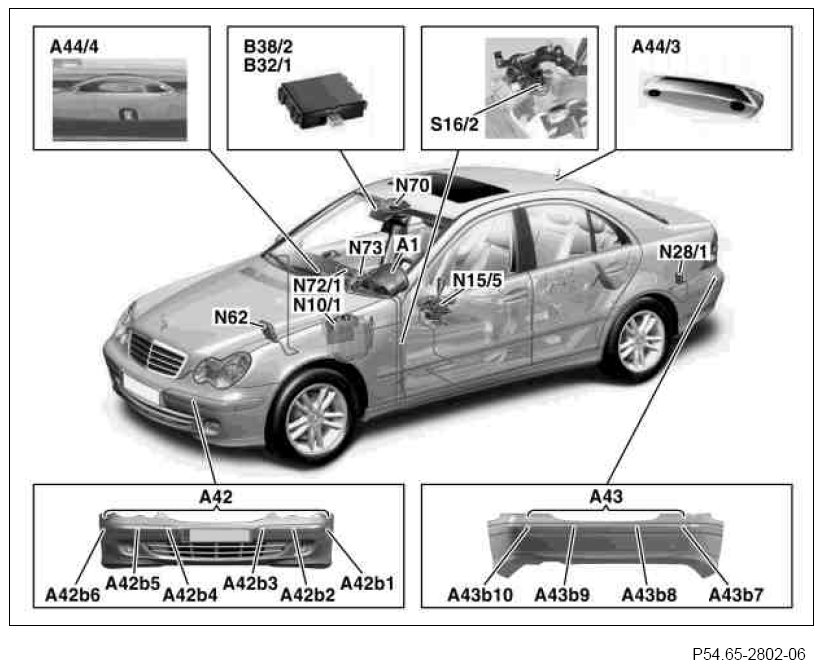

Shown on model 203.0 as of 24.4.04






A1 Instrument cluster
A42 PTS sensor unit, front bumper
A42b1 Left outer sensor
A42b2 Center left sensor, front bumper
A42b3 Left inner sensor, front bumper
A42b4 Right inner sensor, front bumper
A42b5 Center right sensor, front bumper
A42b6 Right outer sensor
A43 PTS sensor unit, rear bumper
A43b7 Right outer sensor, rear bumper
A43b8 Right inner sensor
A43b9 Left inner sensor
A43b10 Left outer sensor, rear bumper
A44/3 PTS warning display, rear dome lamp
A44/4 PTS warning indicator, center of dashboard
B32/1 Automatic light switch daylight sensor (up to 31.5.03)
B38/2 Rain/light sensor (as of 1.6.03)
N10/1 Front SAM control unit with fuse and relay module
N15/5 Electronic selector lever module control unit (with transmission 722)
N28/1 Trailer recognition control unit (with code (550) trailer hitch)
N62 PTS control unit
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N73 DI control unit
S16/2 Backup lamp switch (with transmission 716)
