AN82.25-P-1000-08P Retrofit Wiring Harness For Taxi Lower Control Panel

AN82.25-P-1000-08P Retrofit Wiring Harness For Taxi Lower Control Panel
- Model 203.0

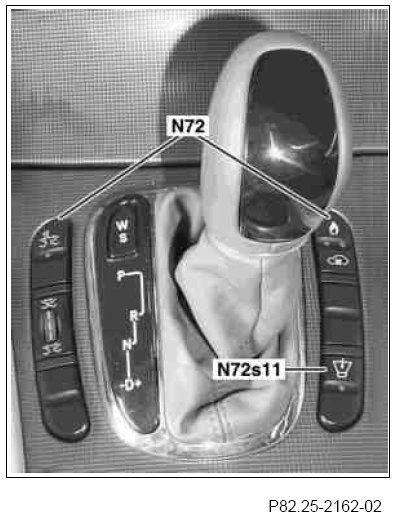

1 Replace control module for lower control panel (N72) depending on the equipment.






If there are no cutouts for the control module (N72) in the lower control panel, the lower control panel and the cover must be replaced.






If on the left-hand side of the control panel a vent grille (arrow) is installed instead of switches, this must be replaced by a CAN bus connection.






2 Route wiring harness for lower control panel from the center console to the upper control panel and secure on existing radio wiring harness.
Ensure that it cannot chafe.

3 Contact wiring harness for lower control panel with control module for lower control panel (N72) and control module for upper control panel (N72/1).
