GF88.79-P-2004PQ Store Outside Mirror Position, Function
GF88.79-P-2004PQ Store Outside Mirror Position, Function
- with CODE (275) Electrically adjustable driver seat, steering column and outside mirrors with memory
- with CODE (242) Electrically adjustable front passenger seat with memory
- up to Model Year 8

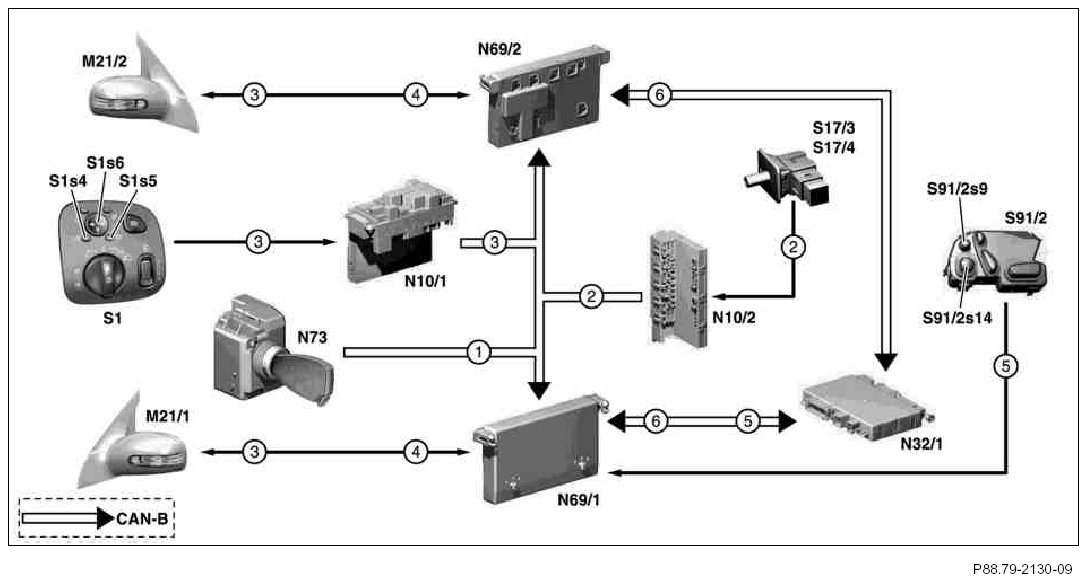

1 Terminal status
2 Door status
3 Position adjustment
4 Position feedback
5 Memory request
6 Store position
M21/1 Left electrically adjustable and heated outside mirror
M21/2 Right electrically adjustable and heated outside mirror
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N32/1 Driver front seat adjustment control unit with memory
N69/1 Door control unit front left
N69/2 Door control unit front right
N73 EIS [EZS] control unit
S1 Light switch module
S1s4 Left mirror adjustment switch
S1s5 Right mirror adjustment switch
S1s6 Outside mirror raise/lower, in/ out rocker switch
S17/3 Left front door contact switch
S17/4 Right front door contact switch
S91/2 Left front door ESA [ESV] switch group (with memory)
S91/2s9 Memory switch
S91/2s14 Memory button 1, 2, 3 switch
CAN-B Controller area network bus class B (interior compartment) (CAN B)
Function requirements
- Terminal 15R ON or
- Driver door open
- No overvoltage/undervoltage
Function
The position of the left electrically adjustable and heated outside mirror (M21/1) and right electrically adjustable and heated outside mirror (M21/2) can be stored manually or automatically with the memory function.
For manually storing a position, the left front door ESA switch group (with memory) (S91/2) has a memory location 1, 2, 3 switch (S91/2s14) as well as a memory switch (S91/2s9) required for starting the storage procedure.The signal for storing the position of the left front door control unit (N69/1) relayed via the CAN-B (CAN-B) and is read in by the driver front seat adjustment control unit with memory (N32/1).
Before storage, the left electrically adjustable and heated outside mirror (M21/1) and the right electrically adjustable and heated outside mirror (M21/2) are adjusted to the desired position with the exterior light switch module (S1)
There are two possibilities for manual storage.
- Press and hold down memory switch (S91/2s9) and simultaneously actuate the desired memory position button in memory location switch 1, 2 3 (S91/2s14) for a short time.
- Actuate memory switch (S91/2s9) for min. 0.1 s and press desired memory position button in memory button 1, 2, 3 switch (S91/2s14) within 3 s.
The last position is stored automatically when the transmitter key is removed from the EIS control unit (N73).
The positions of the left electrically adjustable and heated outside mirror (M21/1) are stored in the left front door control unit (N69/1) and right electrically adjustable and heated outside mirror (M21/2) in the right front door control unit (N69/1).
On vehicles up to 31.8.05, the outside mirror position is stored key-related, i.e. three memory positions can be stored on each transmitter key.

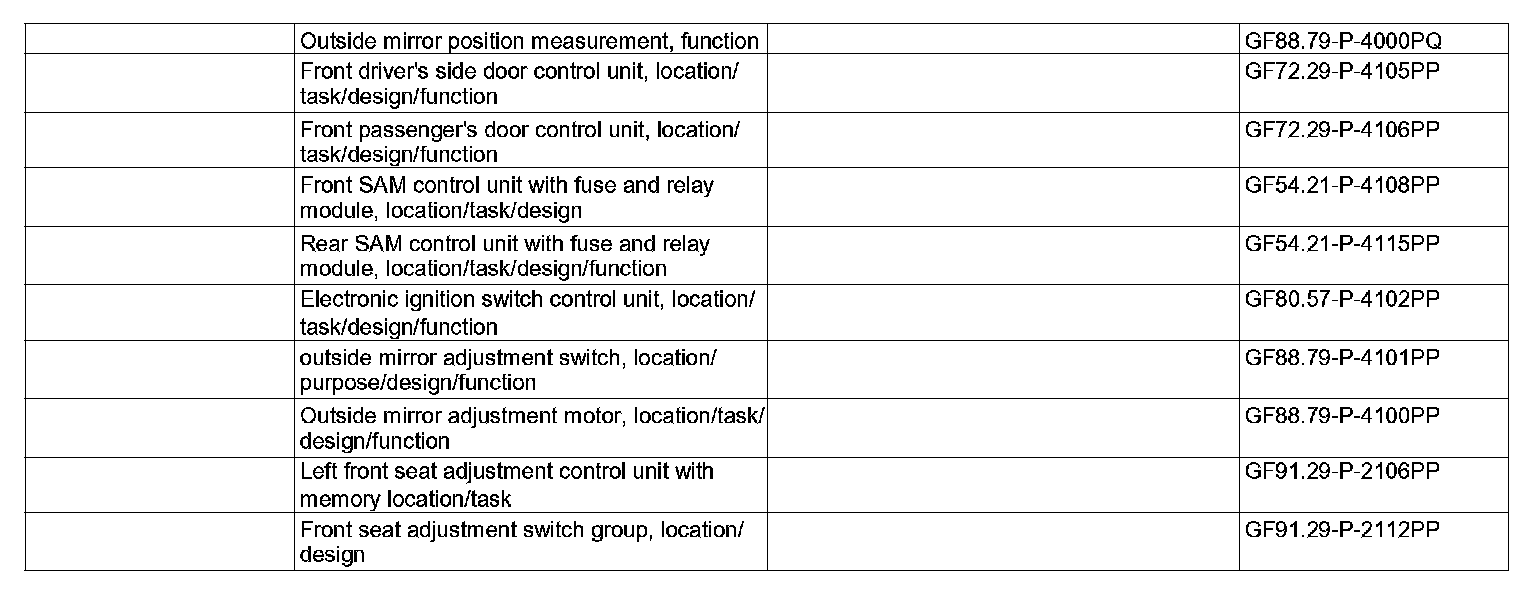

This function is omitted on vehicles as of 1.9.05. Only three memory positions can be stored that are not dependent upon the key.
