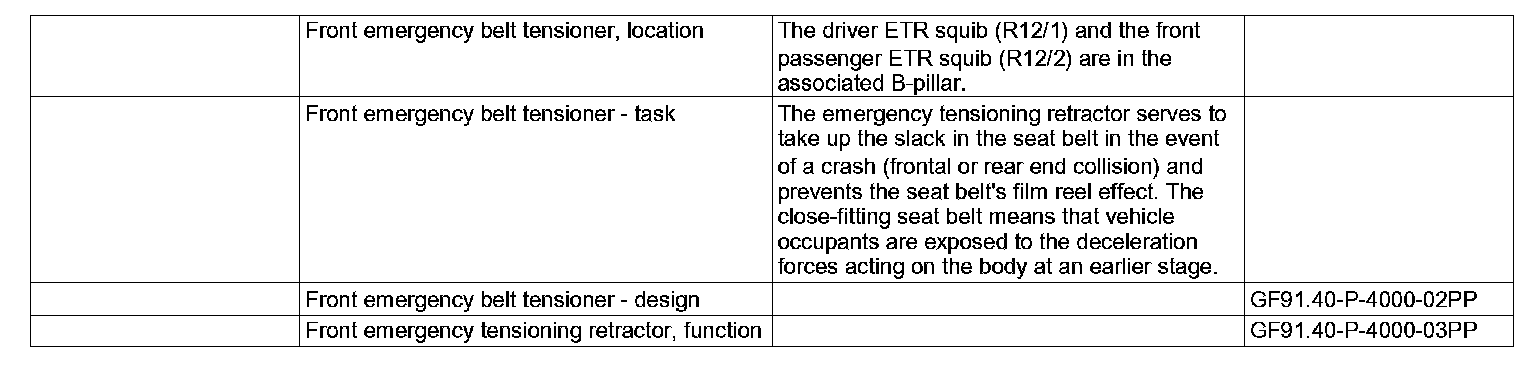

GF91.40-P-4000PP Front Seat Belt Tensioner, Location/Task/Design/Function
GF91.40-P-4000PP Front Seat Belt Tensioner, Location/Task/Design/Function
GF91.40-P-4000PP Front Seat Belt Tensioner, Location/task/design/function

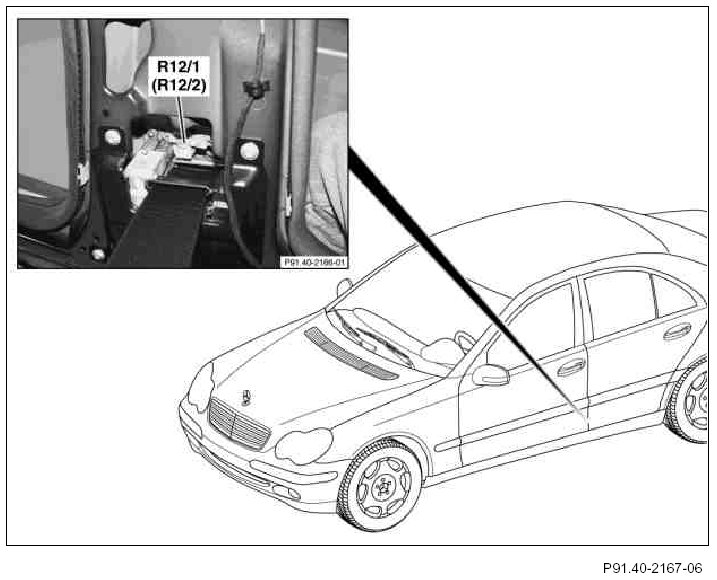

Illustrated on Model 203.0
R12/1
Driver ETR [GUS] squib
R12/2
Front passenger ETR [GUS] squib
