GF82.61-P-0001FAB Auto Pilot System (APS), Function

GF82.61-P-0001FAB Auto Pilot System (APS), Function

MODEL 203.7
- with CODE (525) MB Audio 50 APS radio
MODEL 203.7 as of model year 09/YoM 08 model refinement package

Function requirements
- Status "Circuit 30 ON" or "Circuit 15R ON".
- System is authorized and operating properly.

General
The radio and navigation unit (A2/56) is the central operating unit for the entertainment and communication systems integrated in the vehicle within the Media Oriented System Transport (MOST). A CD drive, a Global Positioning System (GPS) receiver, a turn rate sensor (gyro sensor), a navigation processor and an audio amplifier are integrated. The radio and navigation unit is equipped with a color display to output information such as operating menus, function button assignment and function status.

The radio and navigation unit actuates the following control units via MOST:
- Amplifier for sound system (N40/3), with code (810) Sound system
- CD player with changer (in glove box) (A2/6), with code (819) 6-disk CD changer
- Universal Portable Cell Phone Interface (UPCI [UHI]) control unit (N123/1), with code (386) Mobile phone
- Voice control system control unit (A35/11), with code (813) Voice control system (VCS [SBS])

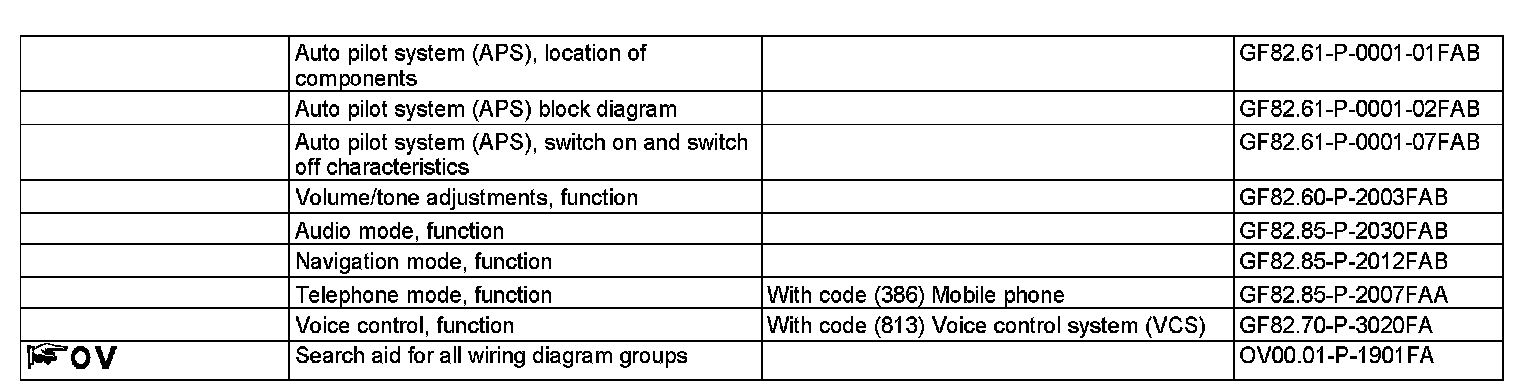

As a maximum, the radio and navigation unit is equipped with the following subfunctions, which are described in separate documents:
- Volume and tone settings
- Audio mode
- Navigation mode
- Telephone mode, with code (386) Mobile phone
- Voice control, with code (813) Voice control system (VCS [SBS])
