GF82.10-P-3002PM Low-Beams Actuation, Function

GF82.10-P-3002PM Low-Beams Actuation, Function

MODEL 203.0 /2 /7 as of 1.7.02
- except CODE (614) Bi-xenon headlamp unit up to Model Year 8







CAN-B Control Area Network bus class B (interior)
A1 Instrument cluster
E1e2 Left low beam
E1e3 Left standing and parking lamp
E2e2 Right low beam
E2e3 Right standing and parking lamp
E3e2 Left taillamp and parking lamp
E4e2 Right taillamp and parking lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N80 Steering column module
S1 Lamp switch module
S4 Combination switch

Function requirements:
- Combination switch (S4) set to "Low beam ON" position.
- The EIS control unit (N73) is programmed to "Xenon headlamp NO" and reports this via the Controller Area Network bus Class B (interior) (CAN-B) to the front SAM control unit with fuse and relay module (N10/1).

The exterior lamp switch (S1s1) of the light switch module (S1) is set to the "driving lamps ON" position. The front SAM control unit with fuse and relay module (N10/1) registers the switch position of the exterior lamp switch (S1s1). The front SAM control unit with fuse and relay module (N10/1) controls the following lamps via a discrete wiring:
- Left low beam (E1e2)
- Left standing and parking lamp (E1e3)
- Right low beam (E2e2)
- Right standing and parking lamp (E2e3)

The front SAM control unit with fuse and relay module (N10/1) sends simultaneously via the Controller Area Network bus Class B (interior) (CAN-B) the signal "standing lamp ON" to the rear SAM control unit with fuse and relay module (N10/2). After receipt of the message the rear SAM control unit with fuse and relay module (N10/2) actuates the following lamps via a discrete line:
- Left taillamp and parking lamp (E3e2)
- Right taillamp and parking lamp (E4e2)
- Left license plate lamp (E19/1)
- Right license plate lamp (E19/2)

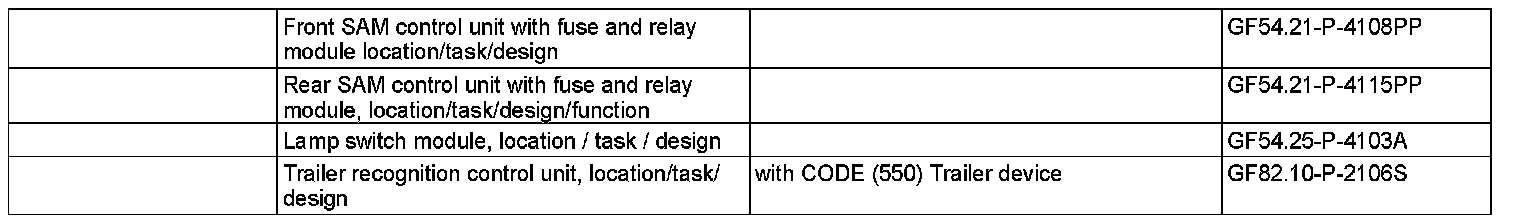

In the "headlamp ON" position, low beam and the standing lamps are always actuated together.
