Windshield Wipers (Part 2) PE82.30-U-2000FB




Windshield Wipers (Part 2) PE82.30-U-2000FB

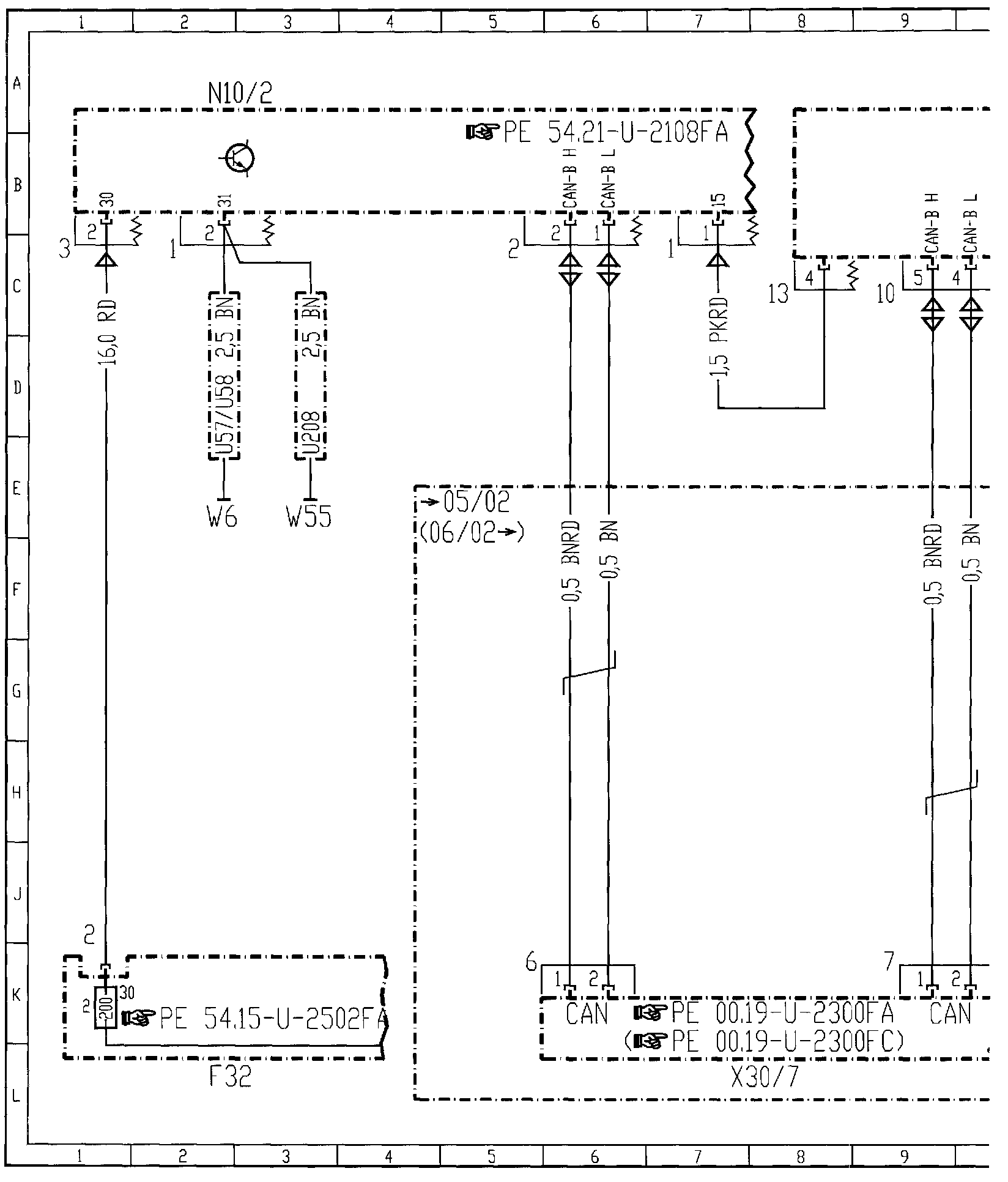

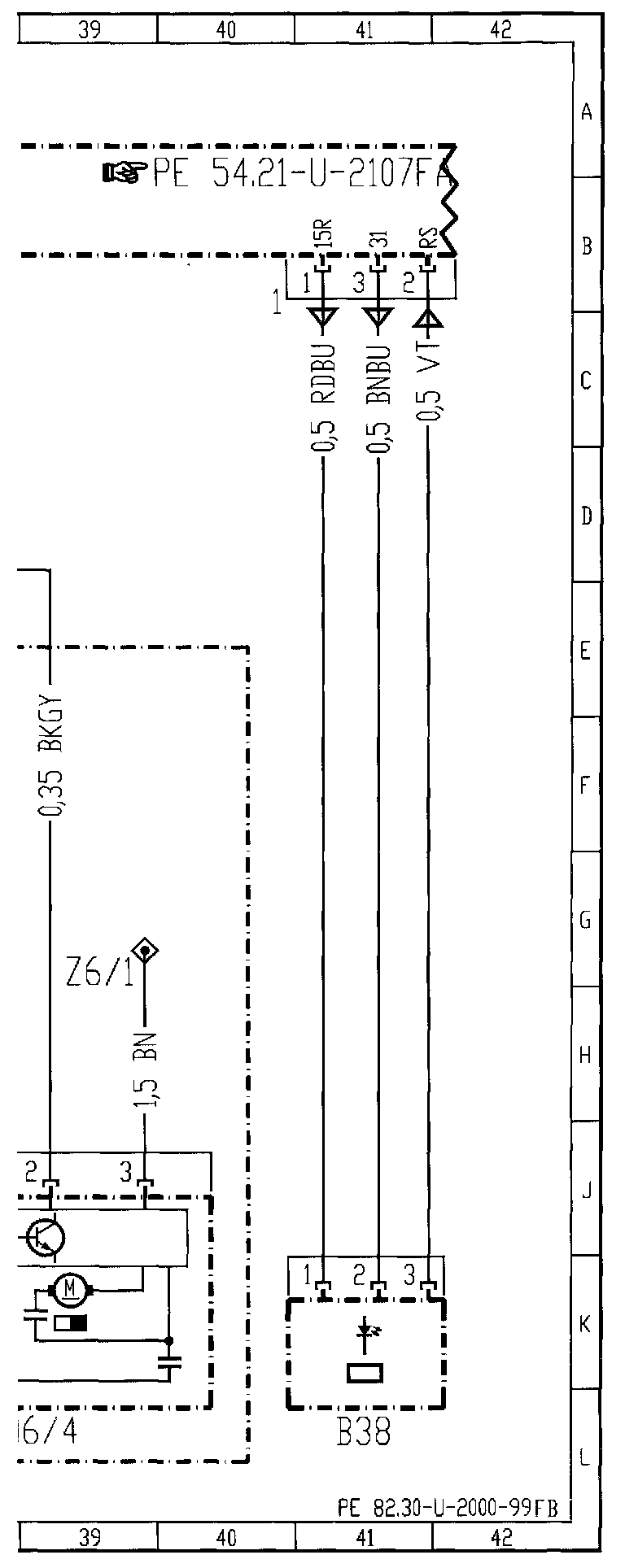

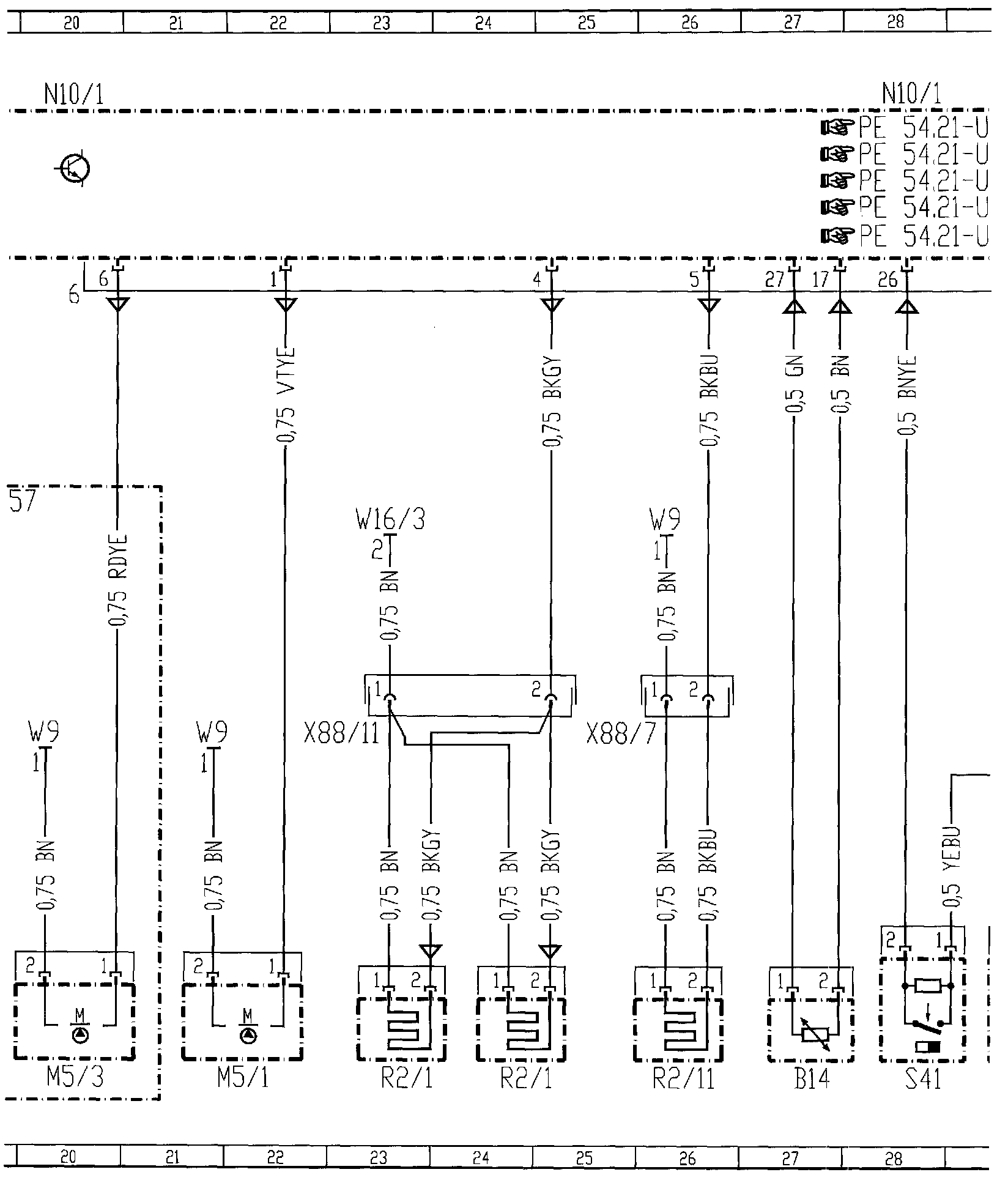

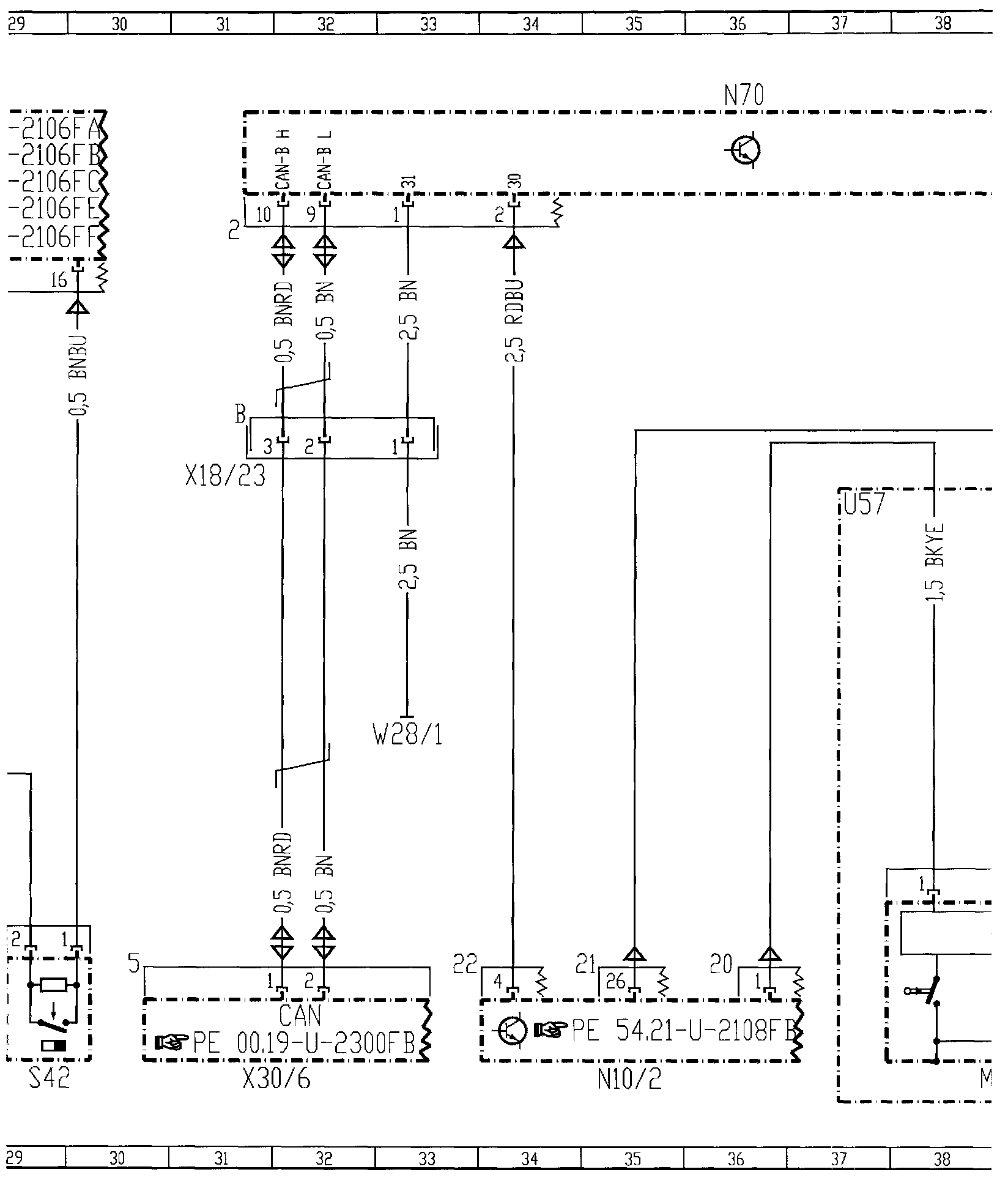

Windshield Wiper:






&l�RWindshield Wiper:






Windshield Wiper:






���RWindshield Wiper:






Windshield Wiper:

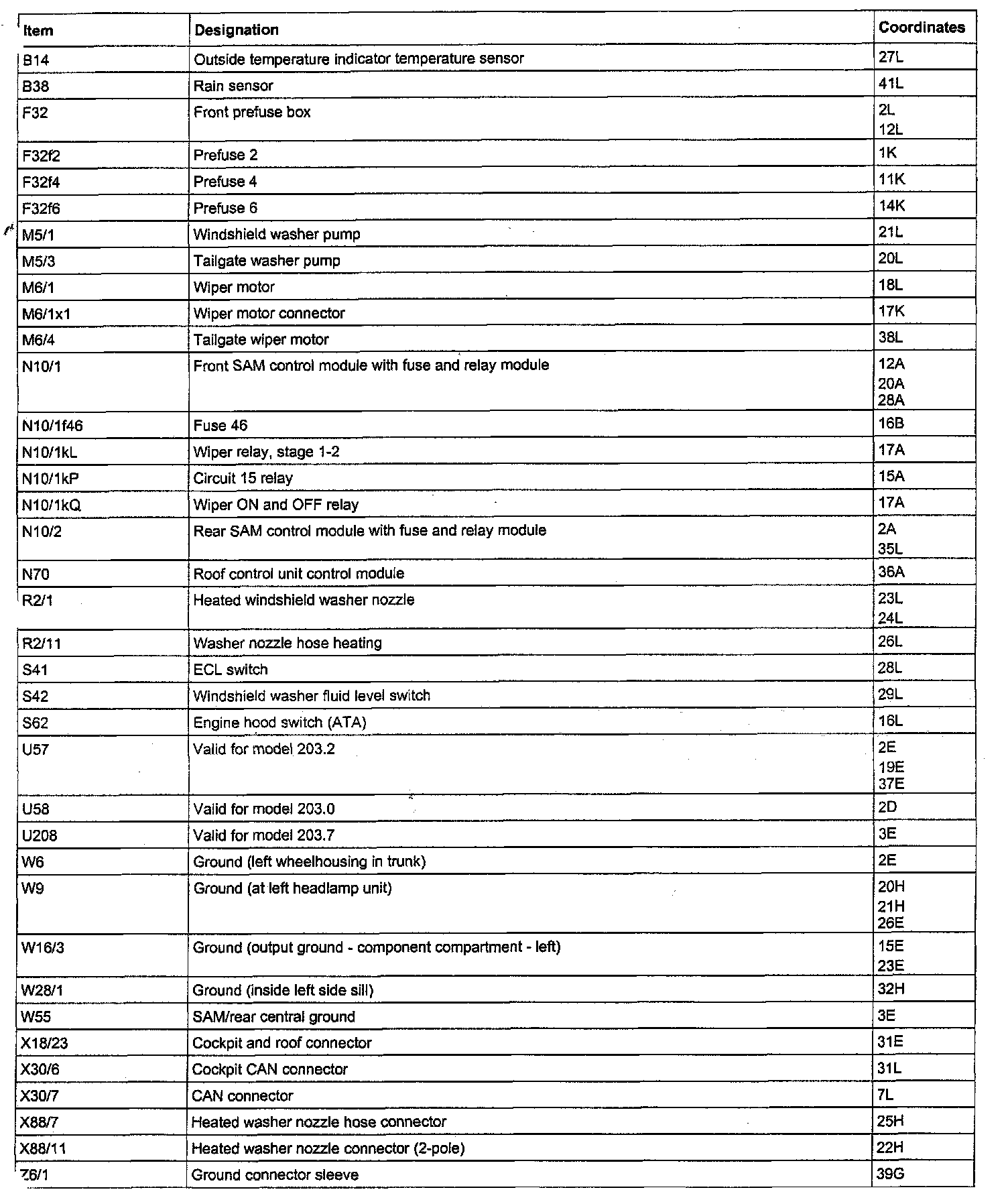

Legend For Wiring Diagram Of Windshield Wiper - 203:






Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
