Operation CHARM
: Car repair manuals for everyone.
Home
>>
Mercedes Benz
>>
2004
>>
CLK 55 AMG (209.376) V8-5.5L (113.987)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Locations
>>
GF07.61-P-0001-01PM Engine Electronics (ME-SFI) Fuel Injection and Ignition System, Arrangement of Components
GF07.61-P-0001-01PM Engine Electronics (ME-SFI) Fuel Injection and Ignition System, Arrangement of Components
GF07.61-P-0001-01PM Engine Electronics (ME-SFI) Fuel Injection And Ignition System, Arrangement Of Components

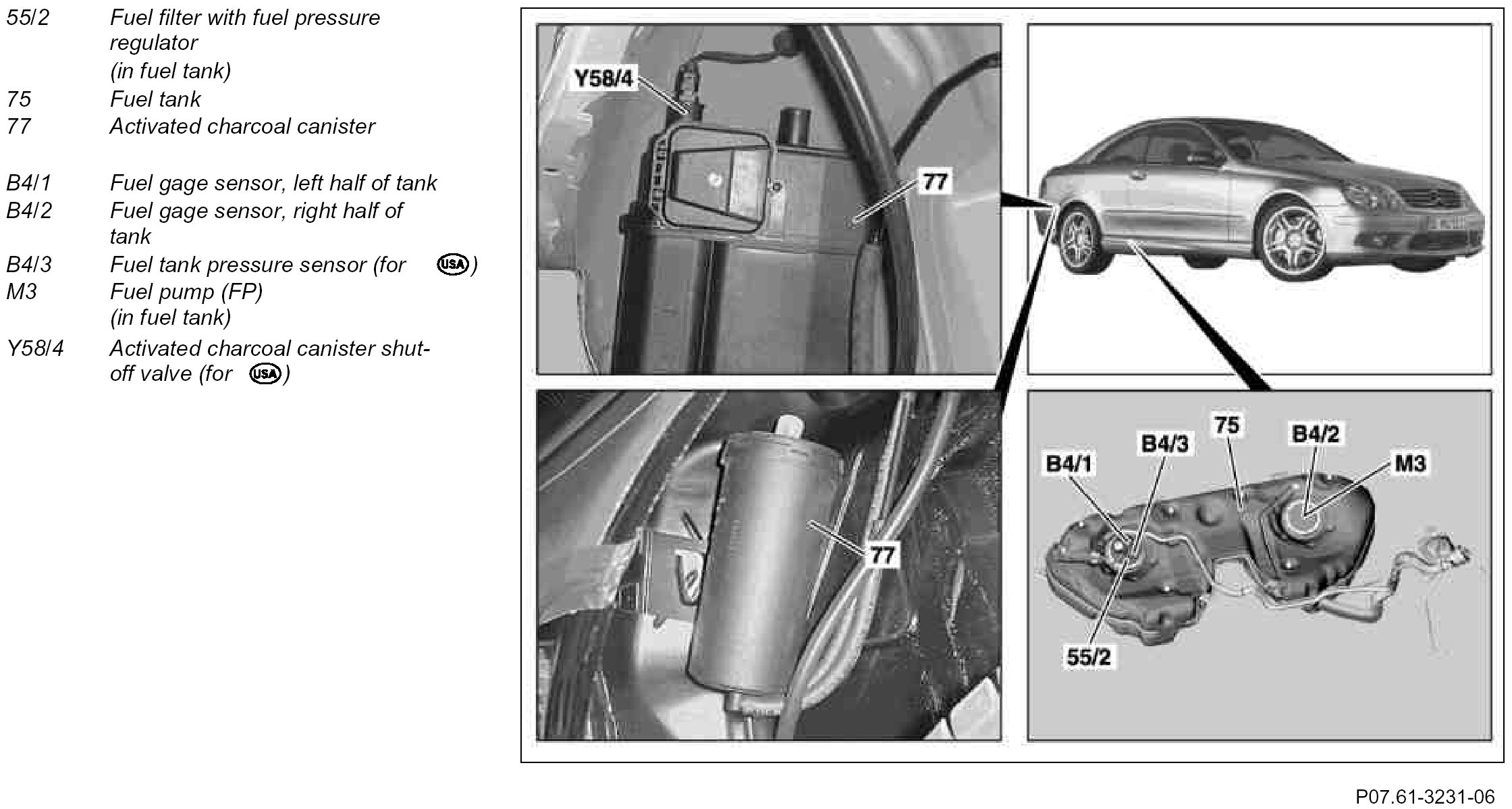

Component Identification:

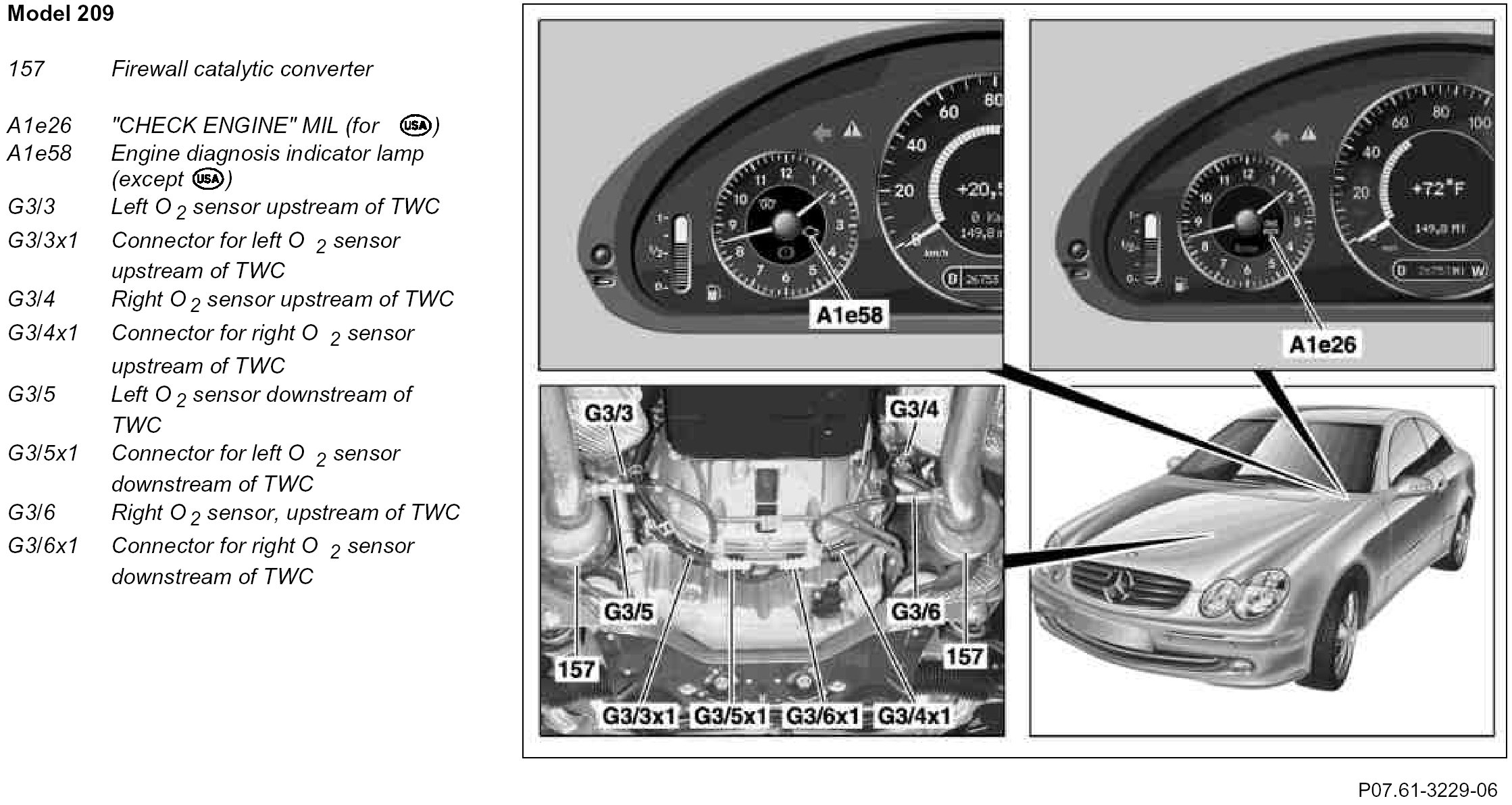

Component Identification:

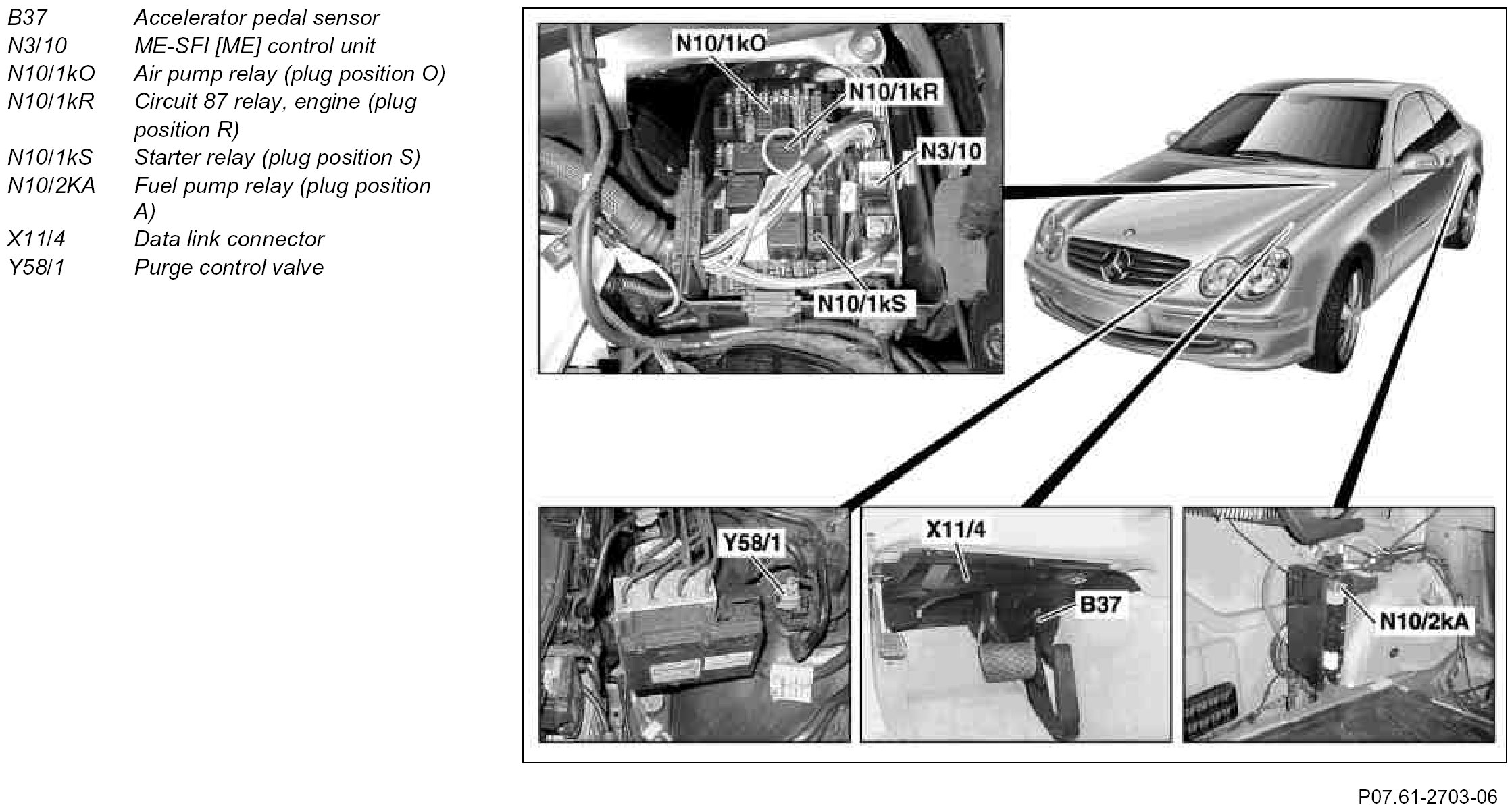

Component Identification:

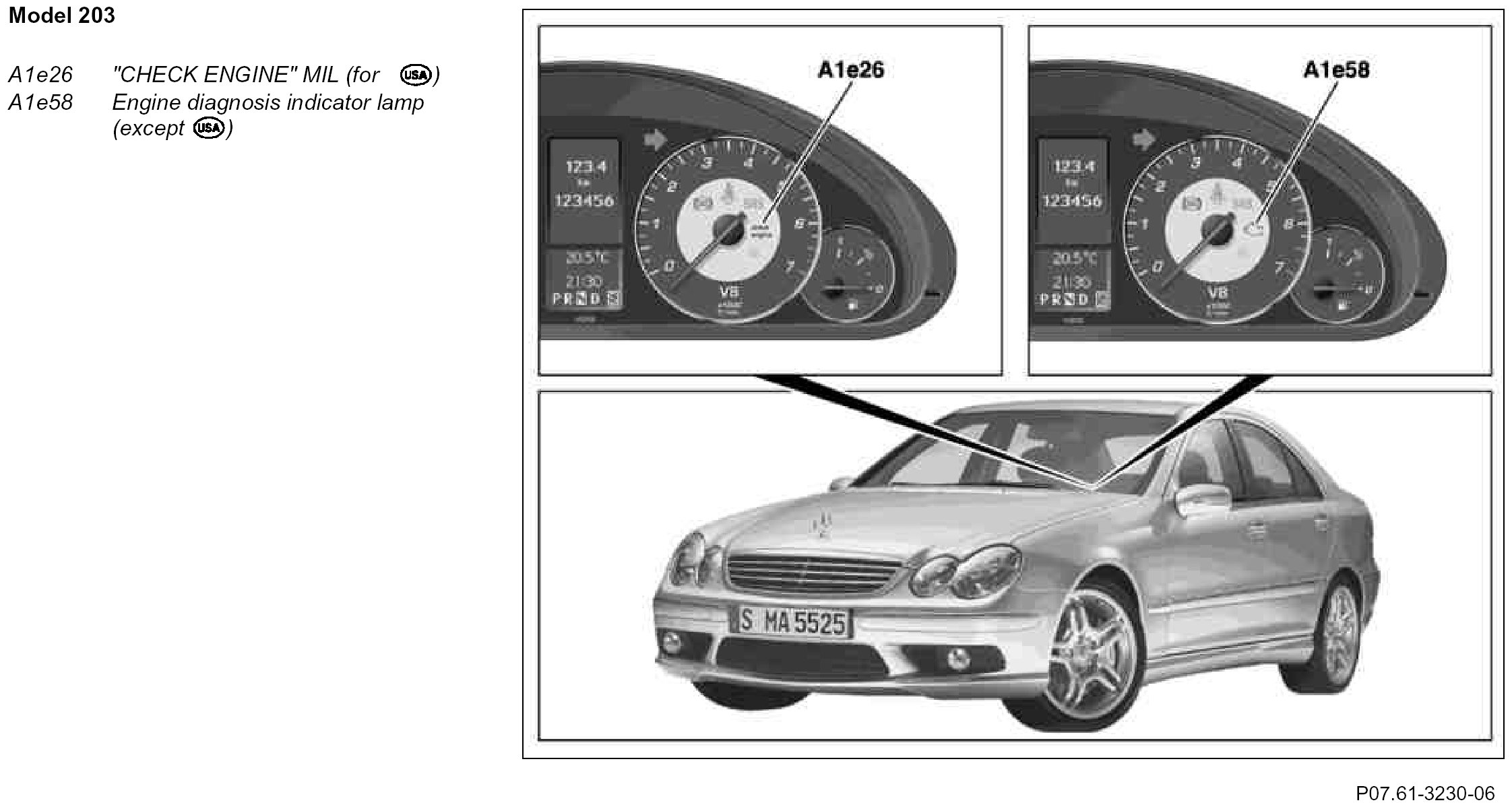

Component Identification:
