Audio System - Satellite Radio Installation: Overview
Date: March 2004Order No.: P-I-82.60/309
Supersedes:
Group: 82
SUBJECT:
MODEL 211.0
MODEL YEAR 2004
SATELLITE RADIO INSTALLATION
WARNING
Do not disconnect the negative battery cable. Extensive reprogramming requirements will otherwise be necessary. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN SEVERE VEHICLE DAMAGE. PERSONAL INJURY. OR DEATH FROM ELECTRICAL SHOCK. Keep the ignition and radio powered OFF through the final test.
MOST notes:
^ Fibers easily damage-handle fibers with care to prevent cuts, nicks, abrasions, kinks, and crushing.
^ Minimum bend radius for fibers is 25 mm.
^ Fiber optics "ring configurations" must form a closed loop to function (i.e. couple the input of a component with the output of the preceding component).

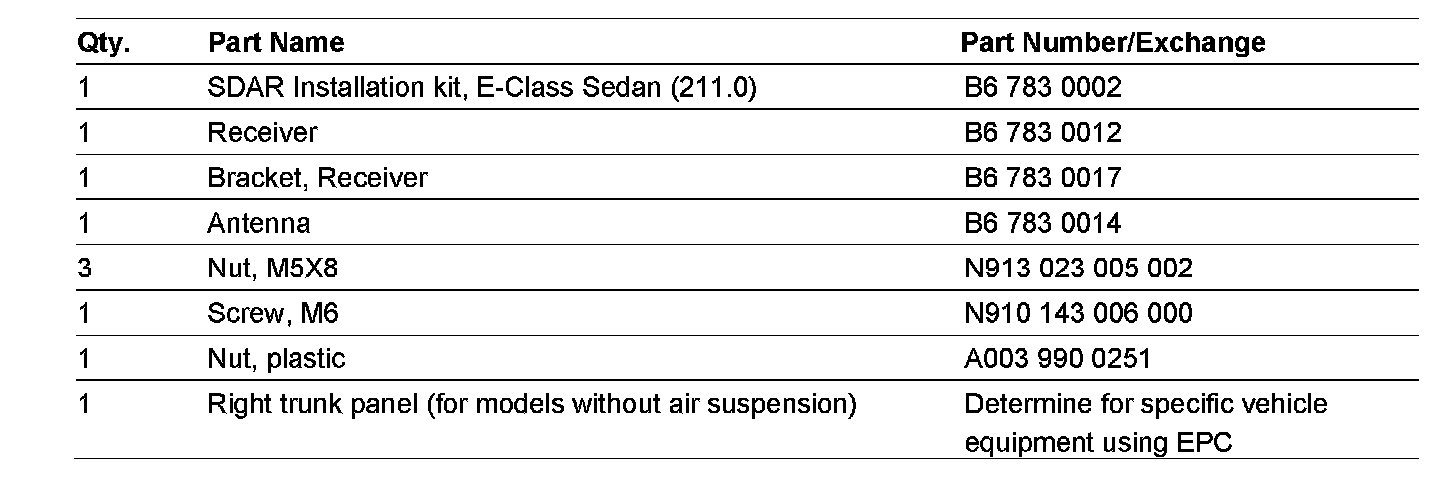

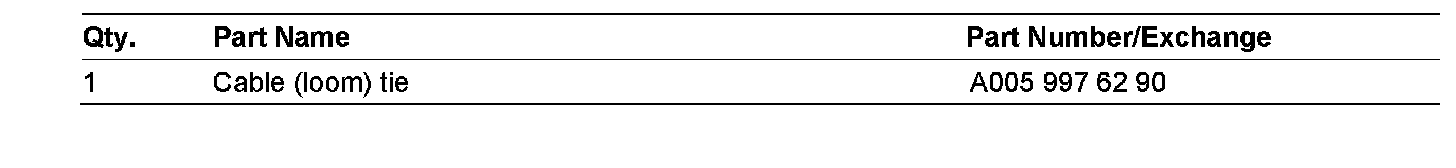

Parts Information
Note:
This installation can not be claimed under warranty.
