A. Installation Preparation - All Configurations

A. Installation preparation - all configurations

1. Read this bulletin in its entirety.

2. Unpack and compare the installation kit(s) contents against the Parts Information list.

3. Place the operating guides/client accessories in the glove box or appropriate storage compartment.

4. Fold down the rear seat backrests.

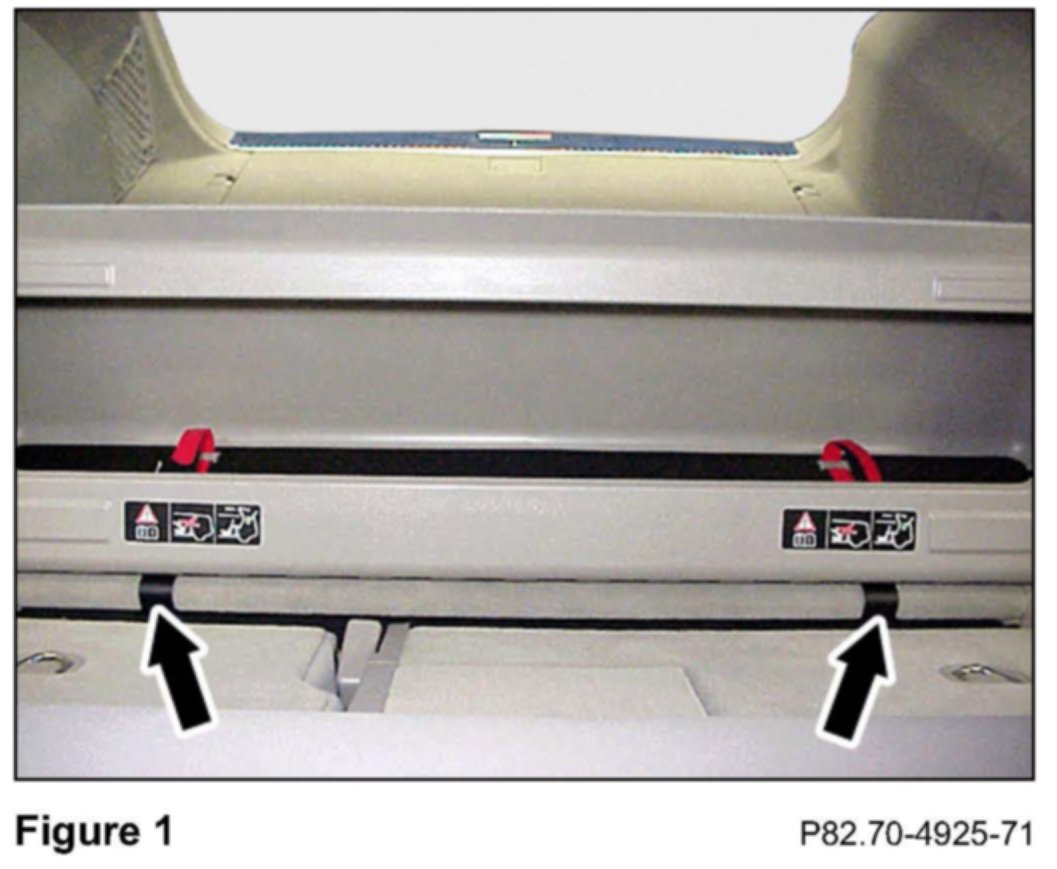

5. Remove the stowage compartment behind the rear seats by pushing it forward from the rear and unhooking the clips (Figure 1).

6. Behind the rear seat, remove the carpeted cover over the telephone electronics compartment . . .





a. Remove the plastic screw cover (A, Figure 2)

b. Remove the T40 Torx bolt (B, Figure 2)





Note:

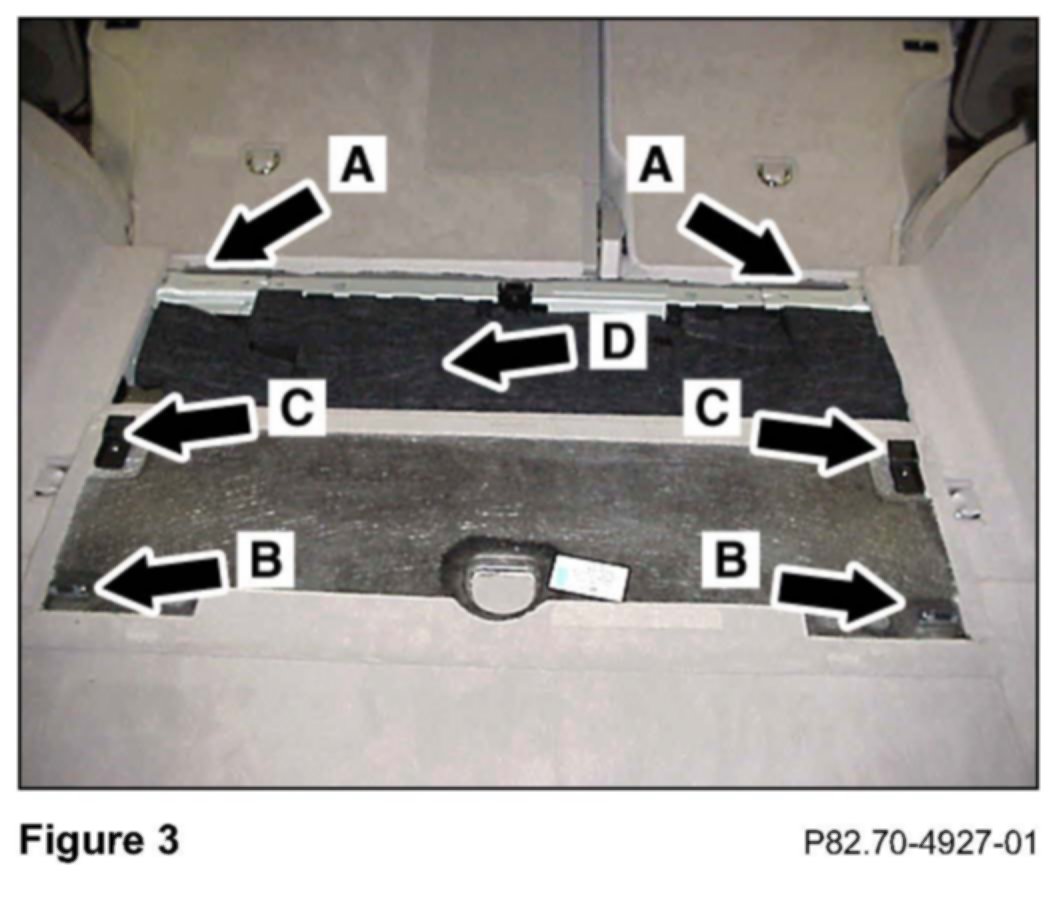

The carpeted cover is removed and laying upside down on the load compartment floor in Figure 3.

c. Use assembly wedges at both ends of the cover (A, Figure 3) to release the front clips (B, Figure 3).

d. Pull the cover toward the front of the vehicle to release the rear clips (C, Figure 3).

e. Remove the insulation covering the telephone electronics compartment (D, Figure 3).
