C. Installing the Portable Phone Cradle and Support Cable
C. Installing the portable phone cradle and support cable1. Open the center console upper compartment.

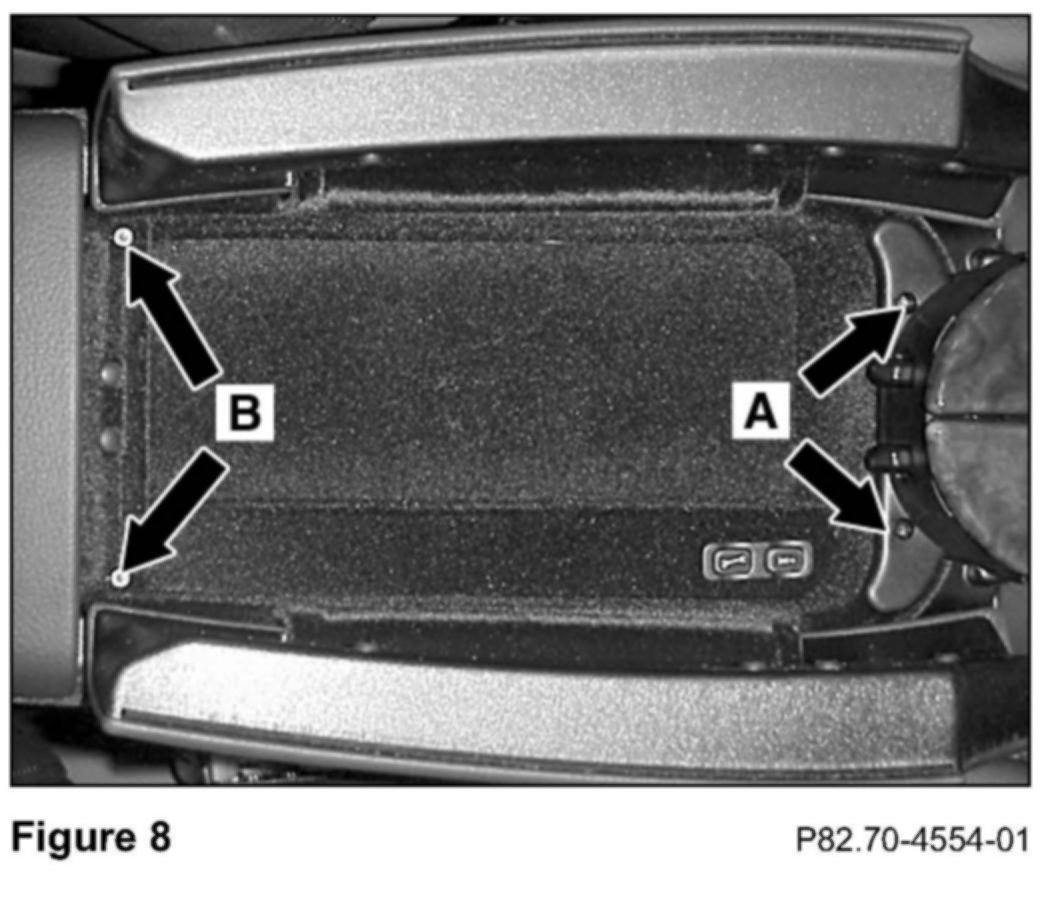

2. Remove the release button assembly for the upper compartment doors by removing the two T10 Torx screws (A, Figure 8)
3. Remove the two T8 Torx screws securing the false floor to the upper compartment (B, Figure 8).
4. Open the center console lower compartment.
5. Remove the two T8 Torx screws securing the false floor/base plate assembly to the upper compartment (Figure 9).
6. Raise the front of the false floor/base plate assembly so it stands vertically (Figure 10).
7. Disconnect the Tele Aid power cord connector (A, Figure 10).
8. Separate and remove the false floor from the base plate by pulling up on the front of the false floor, while simultaneously releasing the two clips (B, Figure 10).

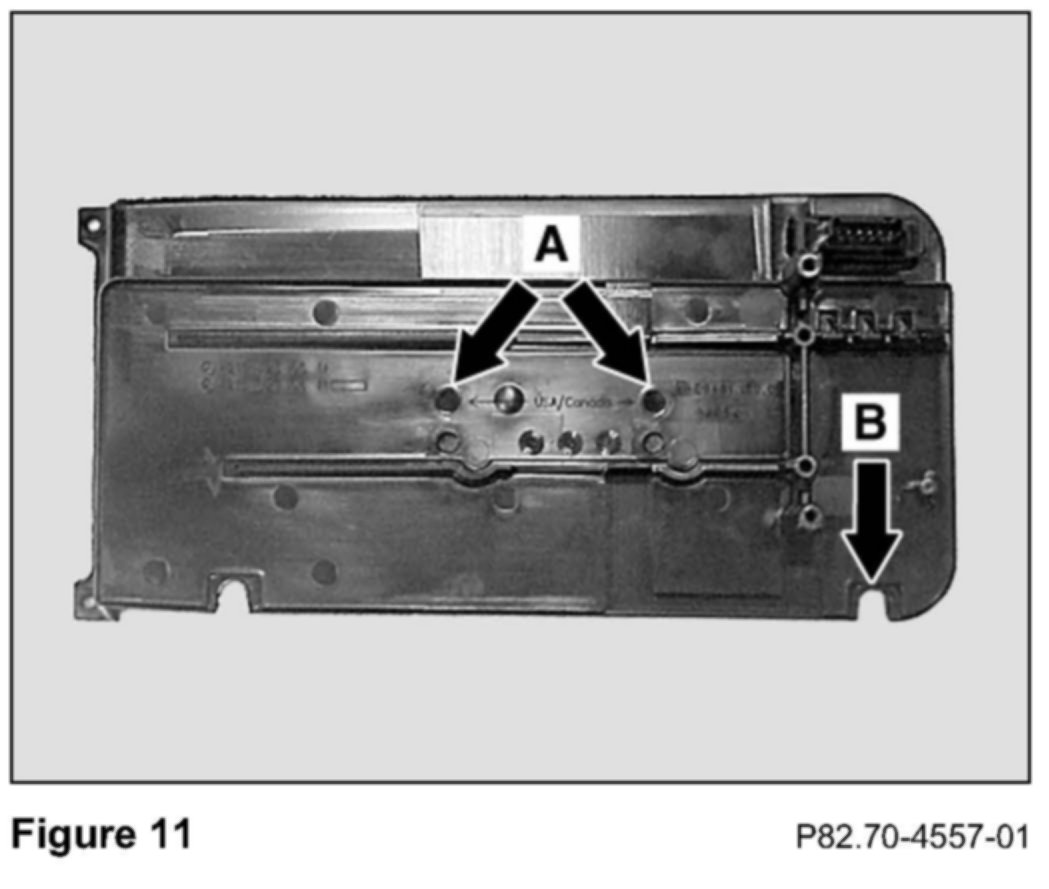

9. Drill out the two semi-punched holes in the false floor underside with a 4.5-mm drill bit (A, Figure 11).
Note:
Drill out the two semi-punched holes closest the Tele Aid connector side of the false floor.
10. Drill, or file, out the upper semi-punched notch of the false floor-for the coil-cord (B, Figure 11).
11. Fasten the cradle holder to the false floor by inserting two T15 Torx screws through the false floor underside and into the holder screw holes.
12. Reattach the false floor to the base plate by aligning and snapping in the two clips.

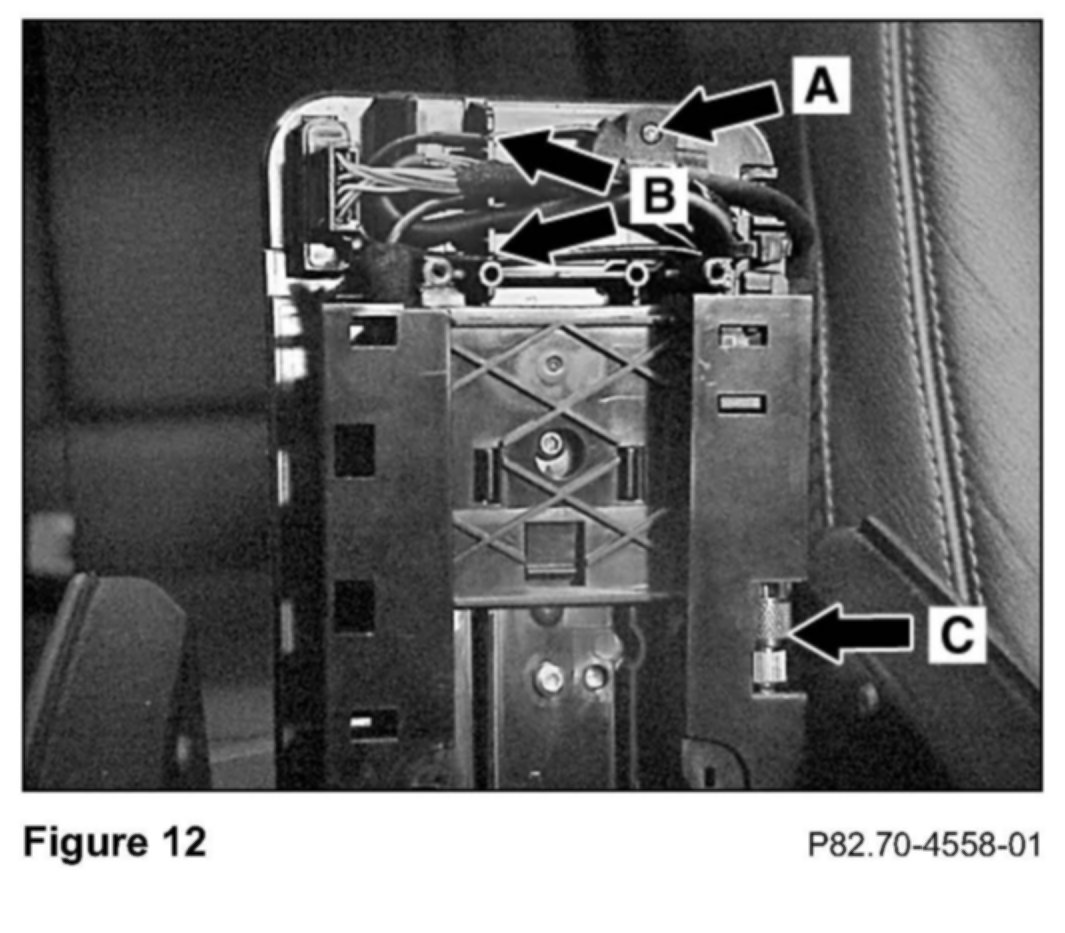

13. Place the coil-cord anchor over the base plate peg (A, Figure 12).
14. Route the mini-UHF coaxial cable through the outer channels of the base plate (B, Figure 12).
15. Connect the mini-UHF coaxial connectors and place the connector assembly in the holding-clip (C, Figure 12).
16. Connect the coil-cord power connector by pushing it in until it snaps into place (A, Figure 12).
17. Route the coil-cord through the inner channels of the base plate (B, Figure 13).
18. Install a wire-tie to relieve stress on the coil-cord power connection (C, Figure 13).
19. Route the coil-cord through the notch cut out of the base plate (D, Figure 13).
20. Reconnect the Tele Aid power connector (E, Figure 13).
21. Reinstall the false floor/base plate assembly into the upper compartment.
22. Reattach the release button assembly with the two previously removed T10 Torx screws.
23. Secure the rear of the false floor with the two previously removed T8 Torx screws.
24. Secure the base plate to the upper compartment with the two previously removed T8 Torx screws.
25. Place the cradle in the holder.
26. Install the battery insert plate marked "FOR USE WITH SLIM BATTERY" when using the slim battery (500 mAh) with the telephone (Figure 14).
Note:
The embossed text on the installed battery insert plate must face up as in Figure 14.

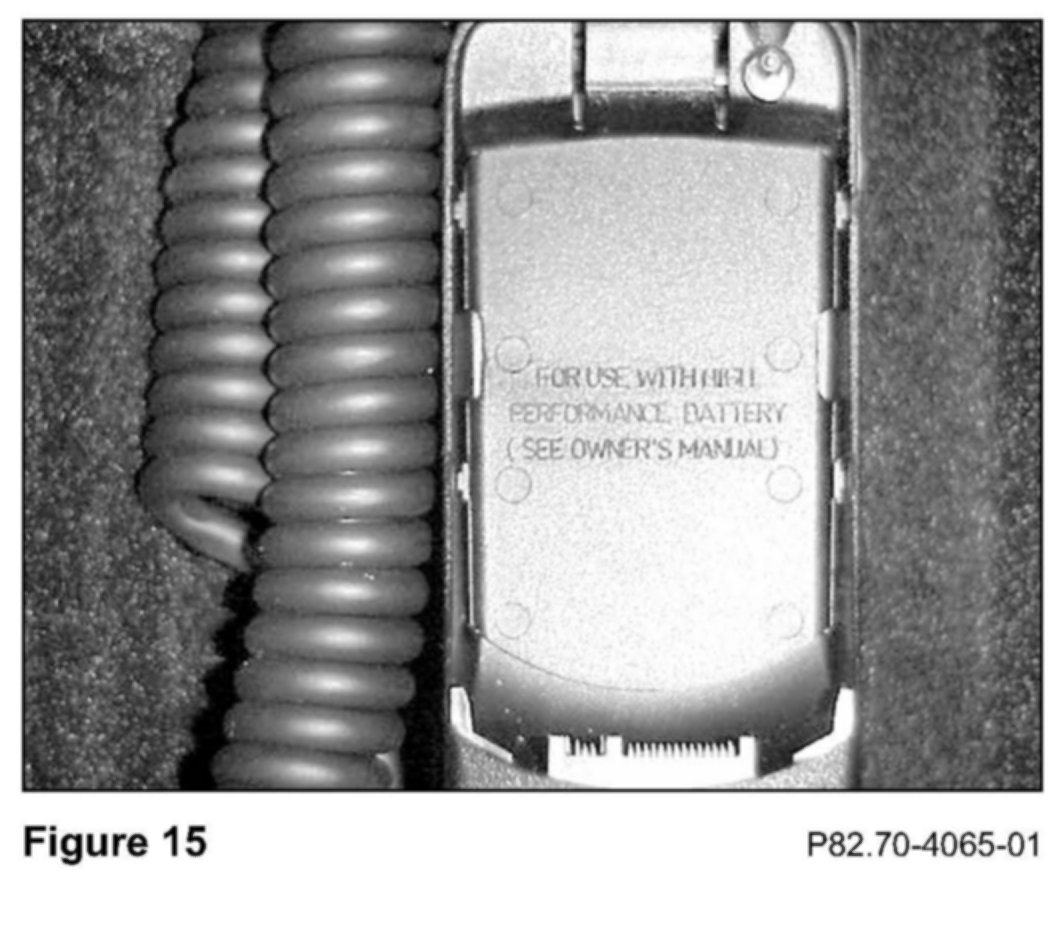

27. Install the battery insert plate marked "FOR USE WITH HIGH PERFORMANCE BATTERY" when using the high performance battery (800 mAh) with the telephone (Figure 15).
Note:
The embossed text on the installed battery insert plate must face up as in Figure 15.
28. Remove the battery insert plate when using the extra capacity battery (1100 mAh) with the telephone (Figure 16).

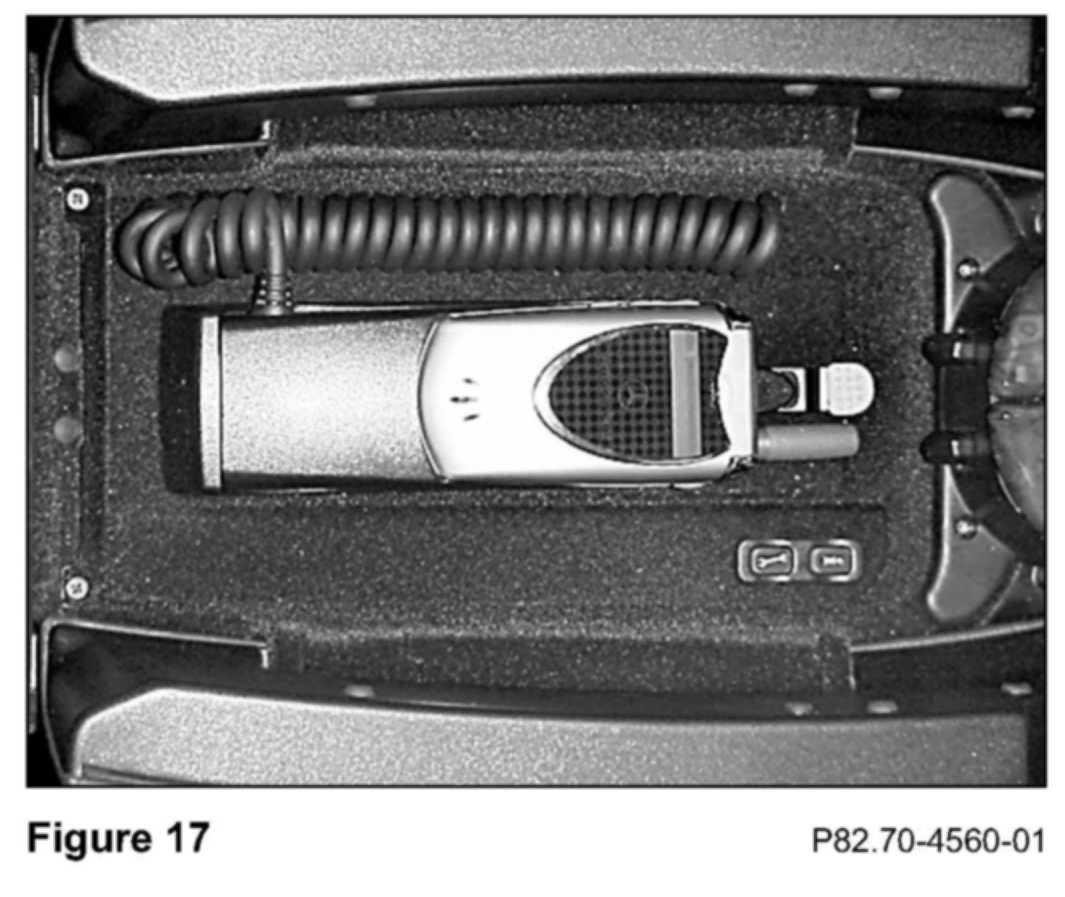

29. Place the telephone in the cradle (Figure 17).
