GF54.65-P-0001-02T Parktronic System (PTS), Location of Components
GF54.65-P-0001-02T Parktronic System (PTS), Location of Components

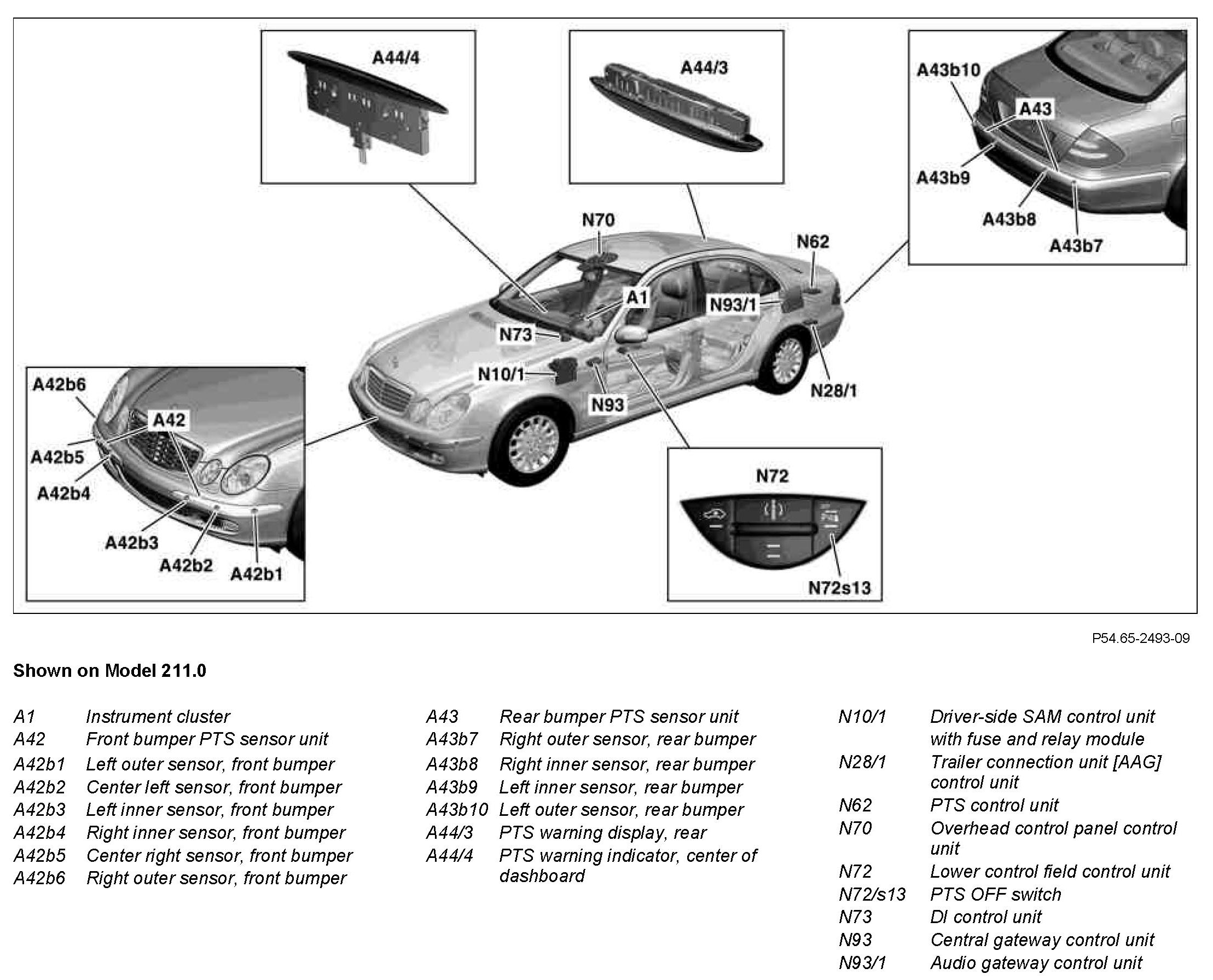

GF54.65-P-0001-02T Parktronic System (PTS), Location Of Components
- with CODE (220a) Parktronic system (PTS)
Component Identification:
