Refrigerant Pressure Sensor / Switch: Locations
Illustrated On Model 220:

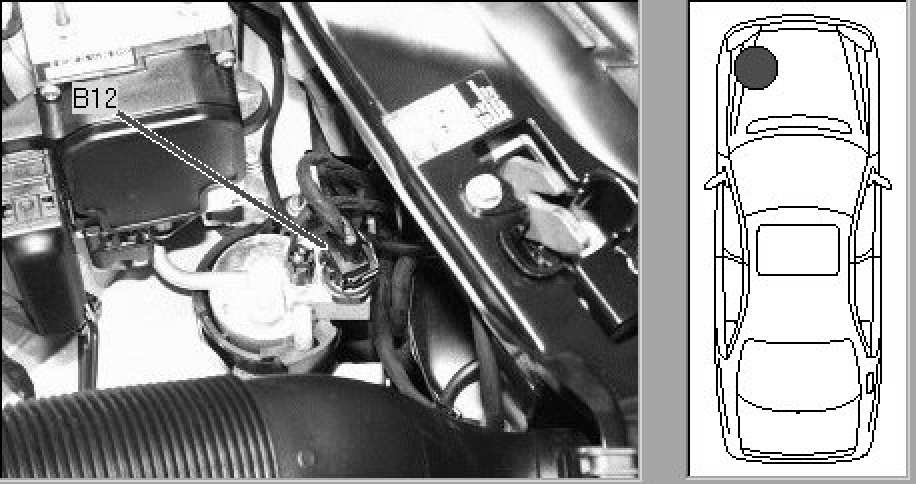

The refrigerant pressure sensor (B12) is located on the receiver/drier (1) in the engine compartment at the front left.
Engine compartment, left front
The refrigerant pressure sensor (B12) is located on the receiver/drier (1) in the engine compartment at the front left.
Engine compartment, left front
