Fuel Gauge Sender: Description and Operation

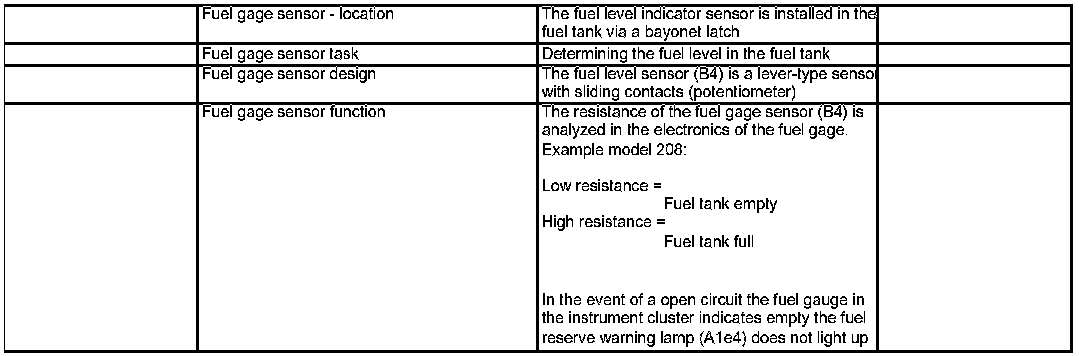

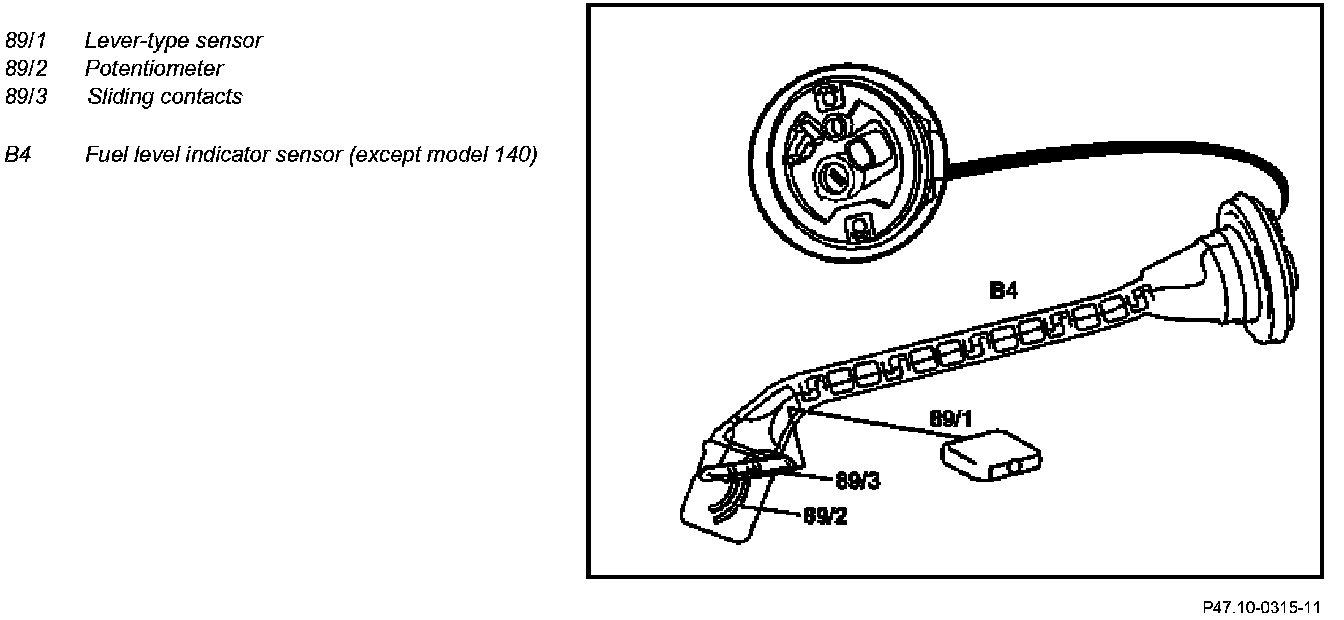

GF47.10-P-3001B Fuel Level Sensor, Location/Task/Design/Function
