B. Installing the Telephone Linear Compensator

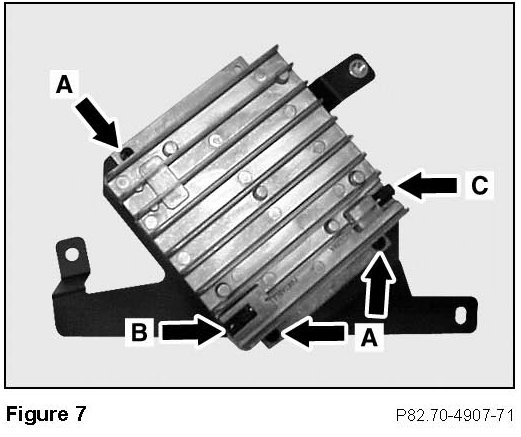

1. Mount the linear compensator to the bracket with three M4 x 8 screws and three M4 nuts (A, Figure 7).

Note:
When mounting the compensator to the bracket, orient the compensator end with the "PORTABLE" jack (B, Figure 7) and "ANTENNA" jack (C, Figure 7) bottom of the bracket.

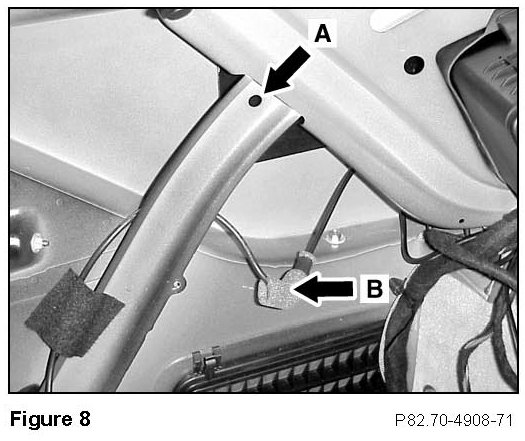

2. In the upper area of the left quarter panel, make sure the hole in the vertical support beam is clear (i.e. nothing wire-tied to it or blocking it) (A, Figure 8).

3. Make sure the foam sleeve covers the conjoined connectors for the backup antenna coaxial cables (B, Figure 8).

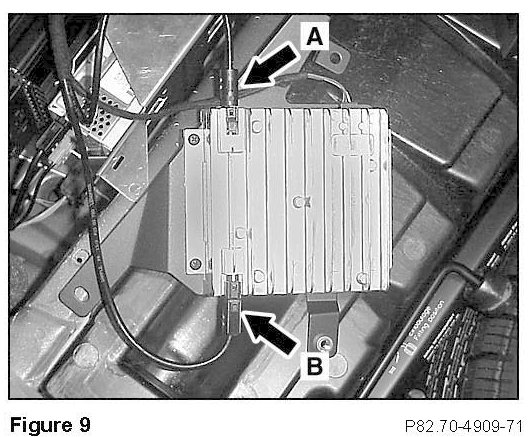

4. Connect the male connector (C, Figure 4) to the linear compensator jack labeled "PORTABLE" (A, Figure 9).

5. Connect the female connector (B, Figure 4) to the linear compensator jack labeled "ANTENNA" (B, Figure 9).





6. Mount the compensator bracket assembly to the upper area of the left quarter panel with a 10-mm machine screw at the top (A, Figure 10) and an 8-mm self-tapping screw at the bottom, right (B, Figure 10).

7. Reinstall the CD changer/Car Navigation processor bracket assembly.

8. Slip the foam sleeve saved in Section B, Step 10 over the satellite radio connector (A, Figure 4) and carefully tuck the connector behind the CD changer/Car Navigation processor bracket assembly.

9. Securely tuck the foam sleeve covered connectors for the backup antenna coaxial cables behind the vertical support beam (C, Figure 10).
