Cellular Phone - Voice Activated Cell Phone Installation: Overview
Date: January 2004Order No.: P-I-82.70/286
Supersedes:
Group: 82
SUBJECT:
MODEL 220.170/174/175/176/183/184
MODEL YEAR 2004
VOICE ACTIVATED CELLULAR TELEPHONE INSTALLATION
WARNING
Do not disconnect the negative battery cable. Extensive reprogramming requirements will otherwise be necessary. WIRING HARNESSES WILL BE ELECTRICALLY ACTIVE. IT IS THEREFORE NECESSARY TO EXERCISE EXTREME CAUTION WHILE EXECUTING THESE INSTALLATION INSTRUCTIONS. FAILURE TO DO SO COULD RESULT IN SEVERE VEHICLE DAMAGE. PERSONAL INJURY. OR DEATH FROM ELECTRICAL SHOCK. Keep the ignition and radio powered OFF through the final test.
Application specific MOST notes:
^ Audio Gateway (AGW) is the MOST master that serves as the tuner and amplifier.
^ The Communications Platform (CP) module replaces, and provides the combined function of, the PSE module and Tele Aid module.

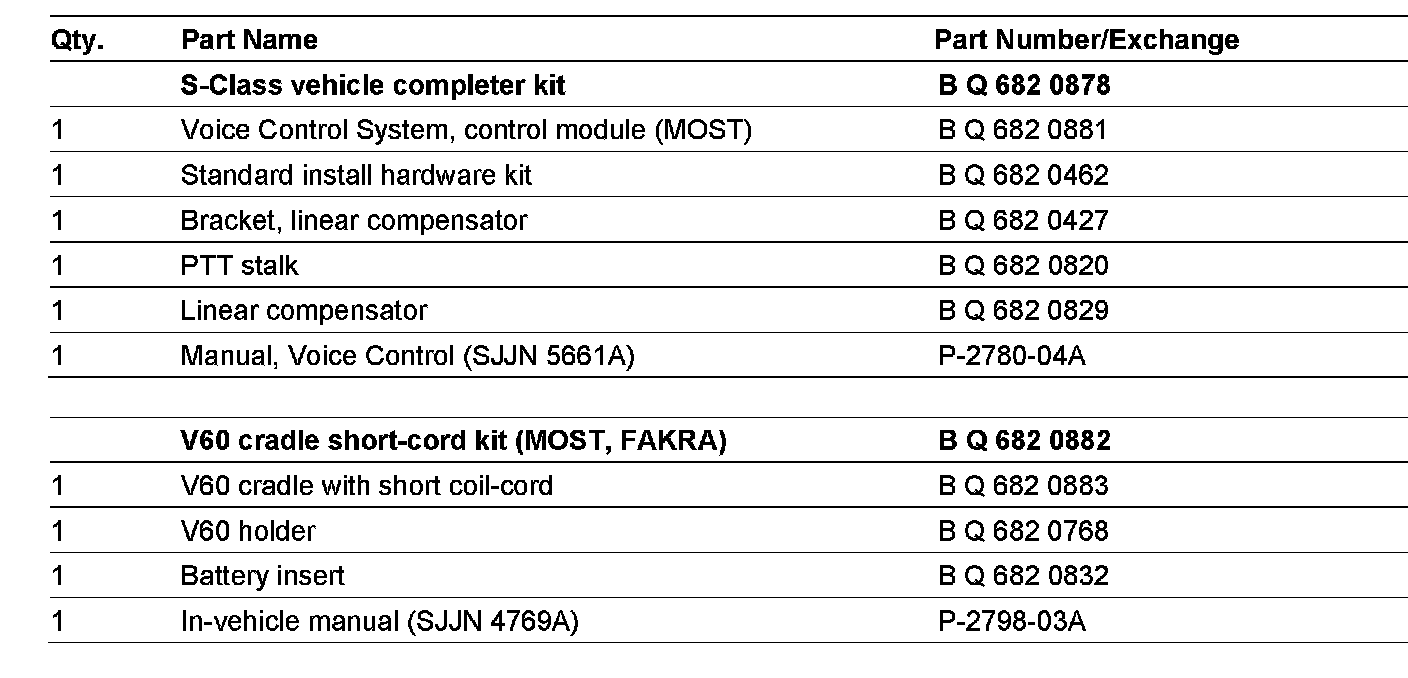

Parts Information
