Wiper Arm: Service and Repair

AR82.30-P-6100M Remove/Install Wiper Arm







DANGER:
- Risk of injury by trapping or crushing, or in extreme cases severing of limbs when accessing the wiper mechanism.
- Always remove the ignition key when working on the wiper mechanism.

1 Move wiper system to park position
2 Open hood, place in vertical position

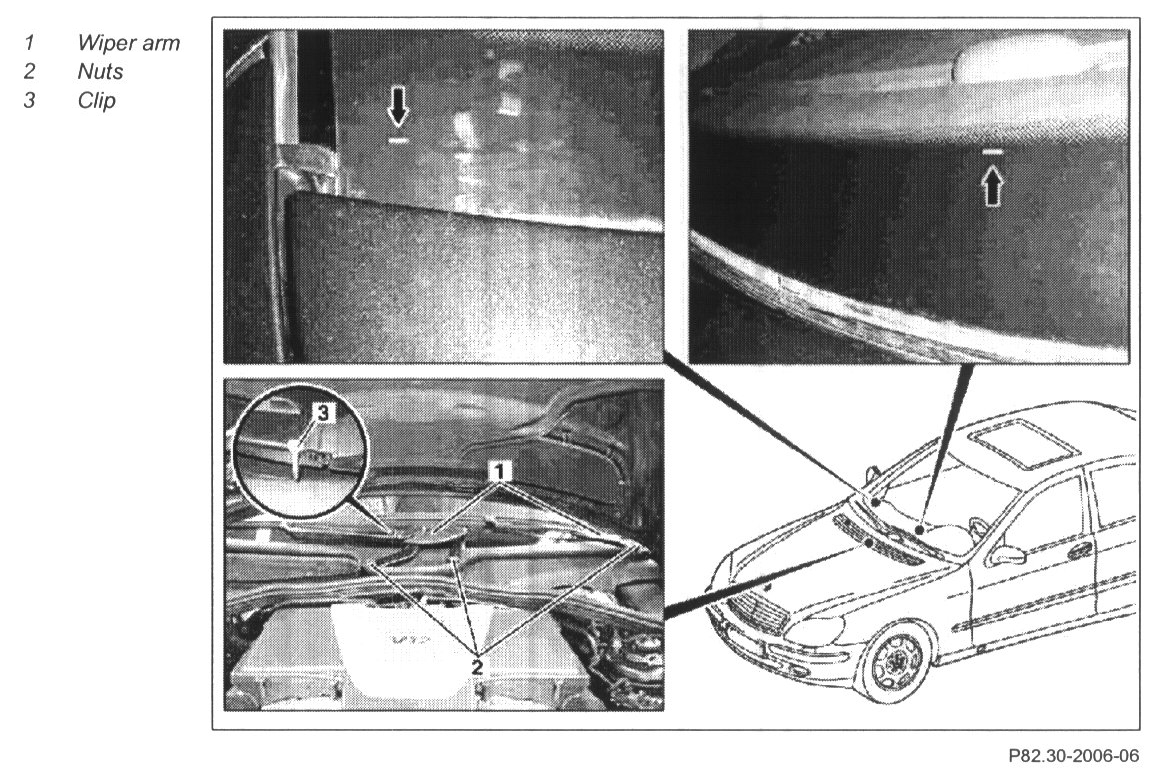

3 Unscrew nuts (2)
- Nut for wiper arm: 33 Nm

4 Remove wiper arm (1)

NOTE: Installation:
- The wiper blade must lie directly on the marking (arrow) in the screen printing of the windshield
- In models 215, 220 after aerowiper started to be used, the clip (3) must be removed when using new wiper blades.

5 Install in reverse order
6 Check operation of windshield wipers.
