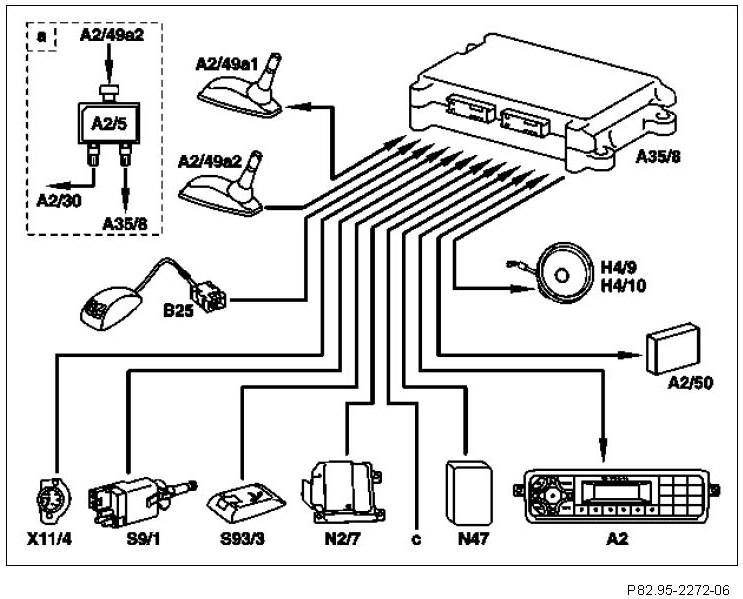

GF82.95-P-0003-02C Emergency Call (E-Call), Block Diagram

GF82.95-P-0003-02C Emergency Call (E-CALL), Block Diagram
MODEL 203
- with CODE (349) E Call emergency call system
- with CODE (498) Japan version
- up to Model Year 8
MODEL 215, 220
- with CODE (349) E Call emergency call system
- with CODE (498) Japan version






A2 Radio (Audio 30)
A2/5 Antenna splitter
A2/30 Navigation processor, APS
A2/49a1 CTEL antenna on models 203, 215 telephone antenna A2/22
A2/49a2 GPS antenna, on model, 215 GPS antenna A2/23
A2/50 E-CALL substitute antenna
A35/8 E-CALL control module
B25 Hands-free system microphone
H4/9 Left front loudspeaker
H4/10 Right front loudspeaker
N2/7 Restraint systems control module
N47 Traction system control module receives signal from left front speed sensor, L6/1
S9/1 Stop lamp switch
S93/3 EMERGENCY CALL system pushbutton switch
X11/4 Data link connector
a Only on vehicles with auto-pilot system (APS)
c Reverse signal
