ME-SFI Fuel Injection/Ignition System PE07.61-U-2101SG (Sheet 1)

ME-SFI Fuel Injection/Ignition System PE07.61-U-2101SG (Sheet 1)
- ME 2.8.1 C6

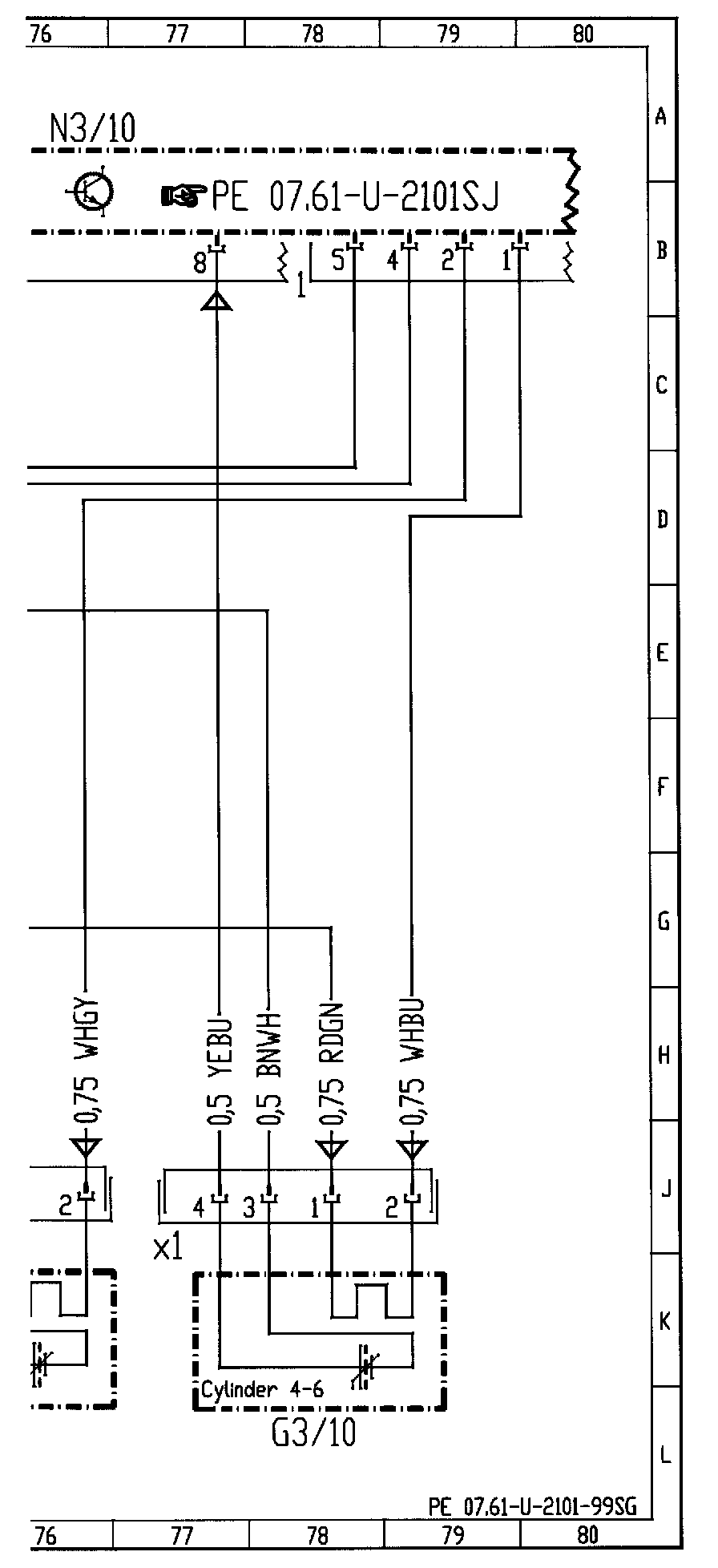

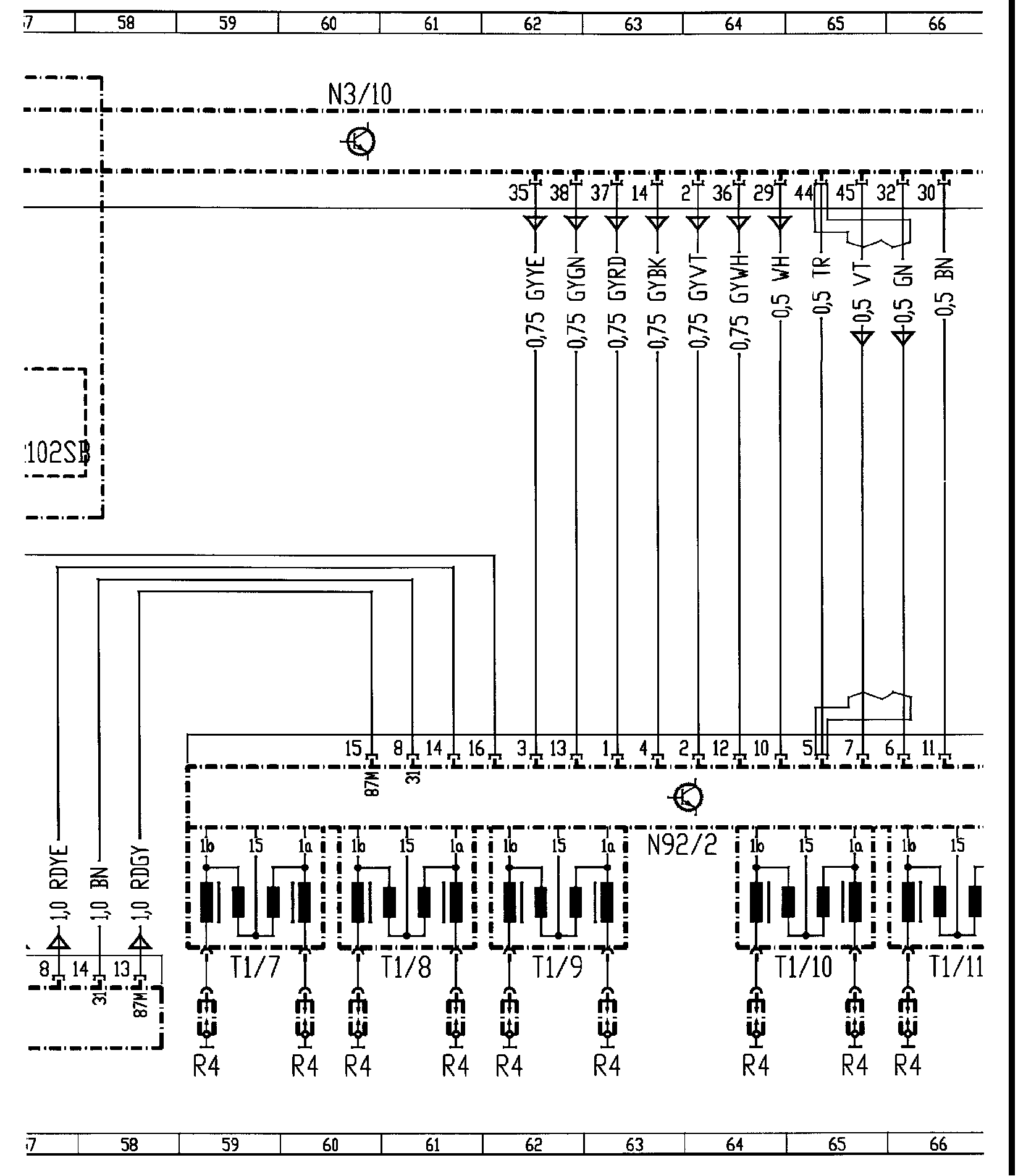

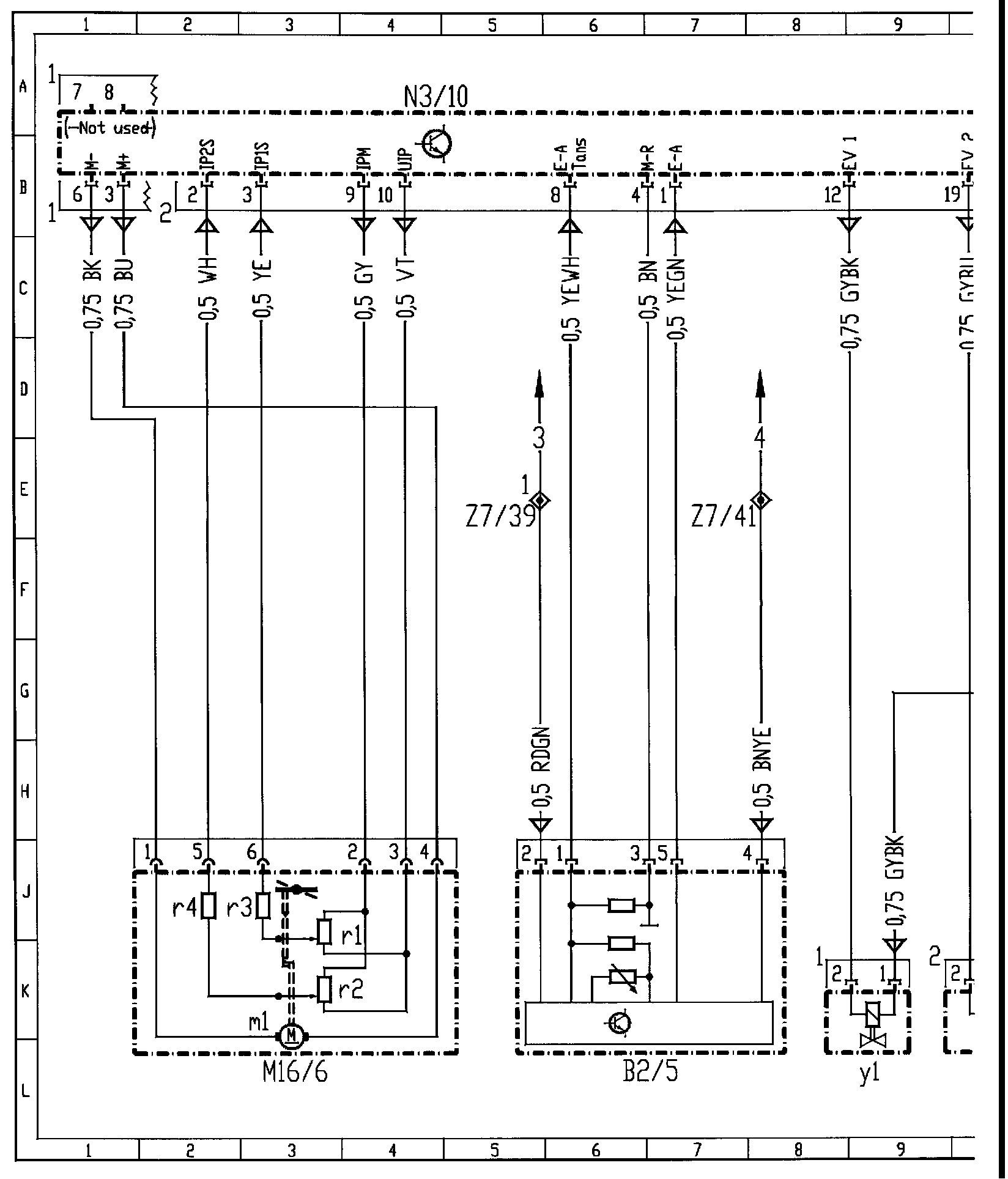

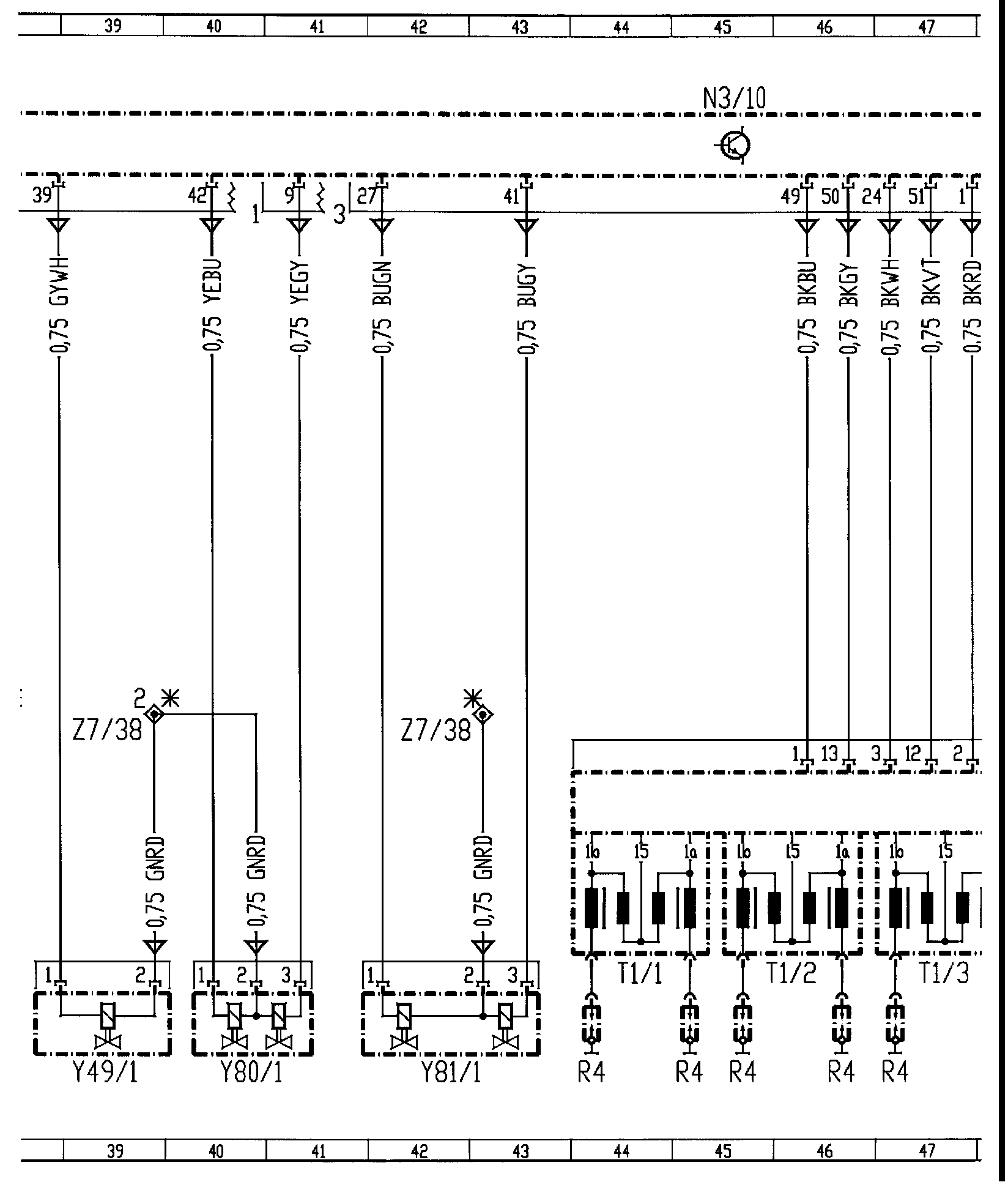

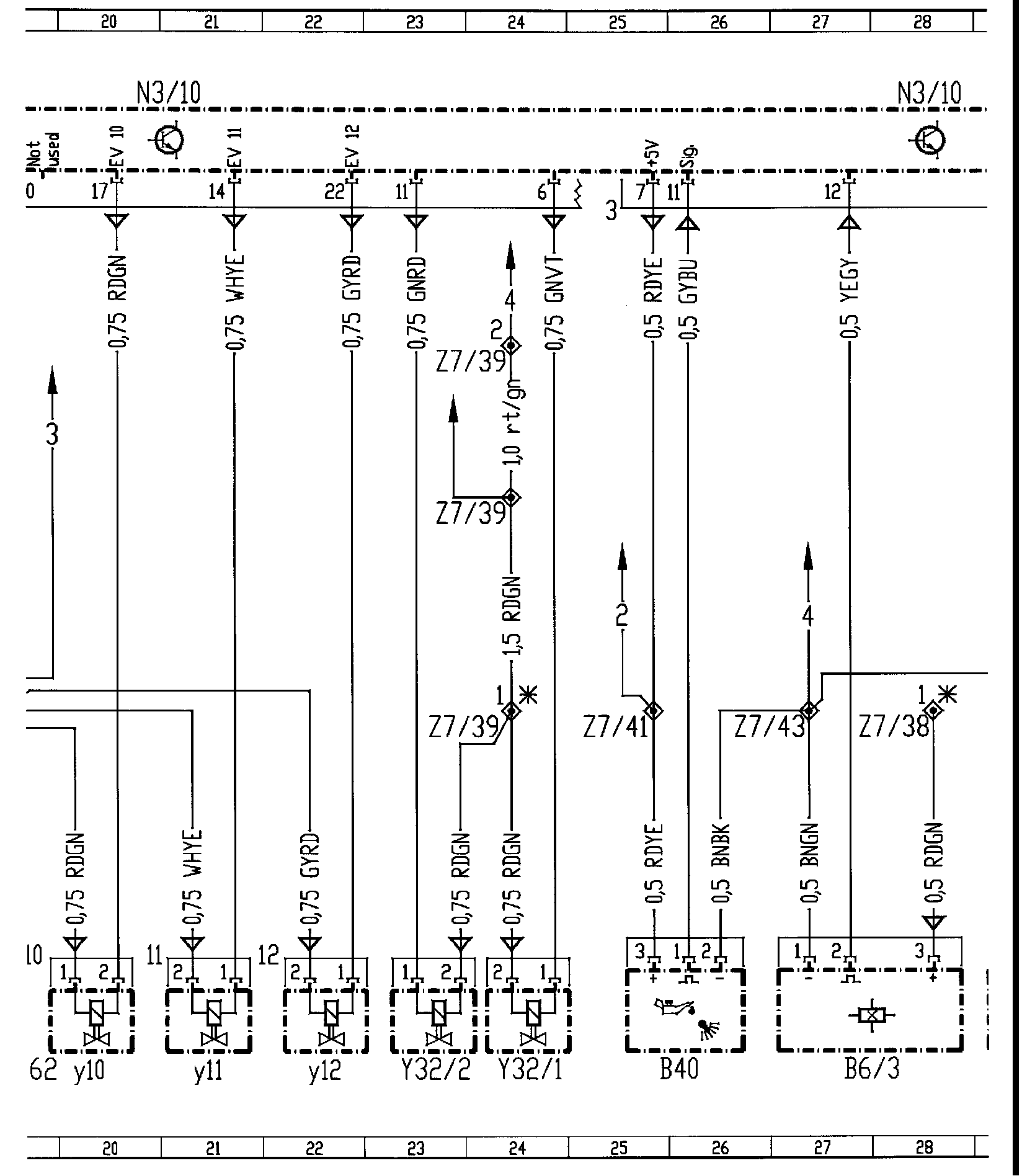

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

ME-SFI Fuel Injection & Ignition System:

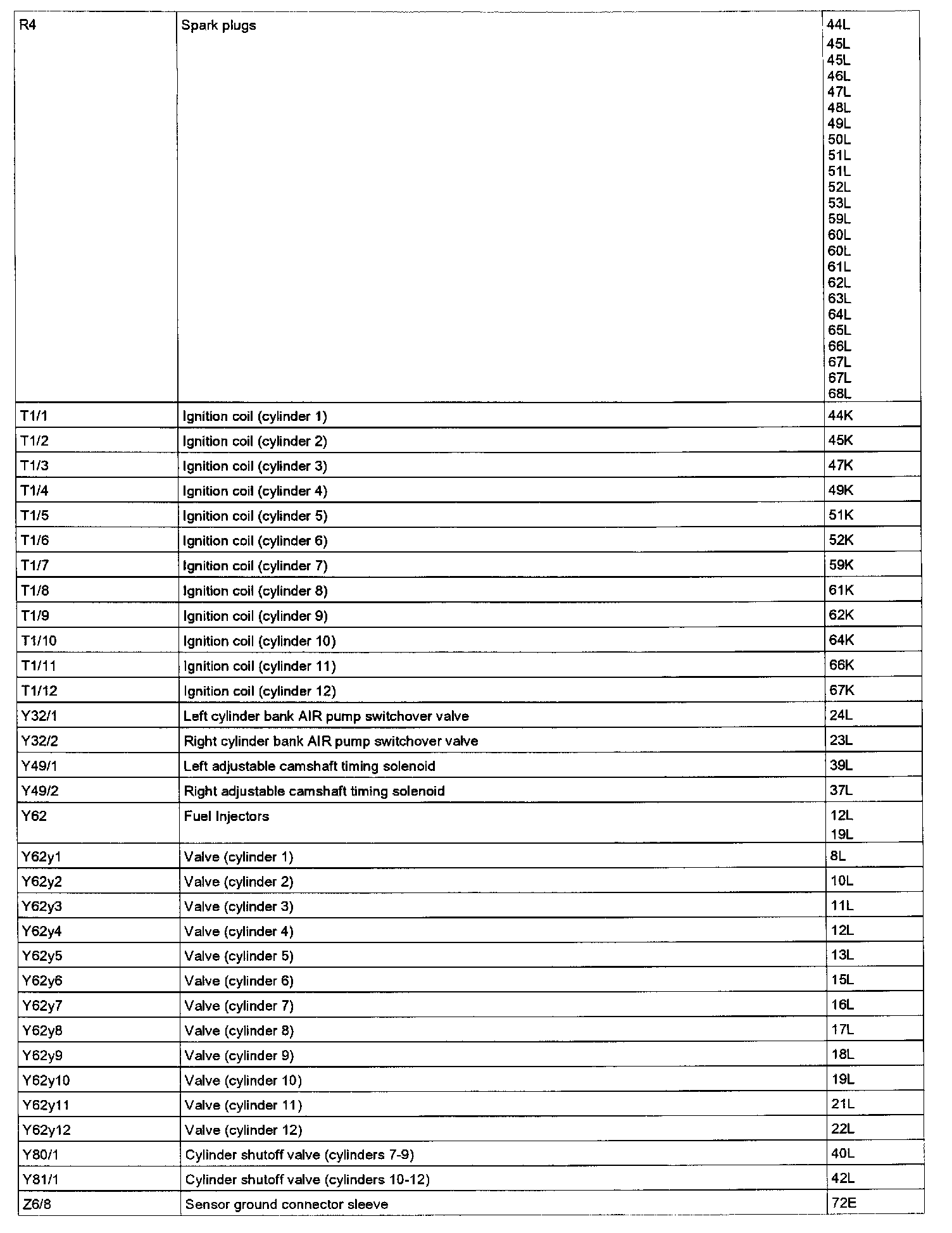

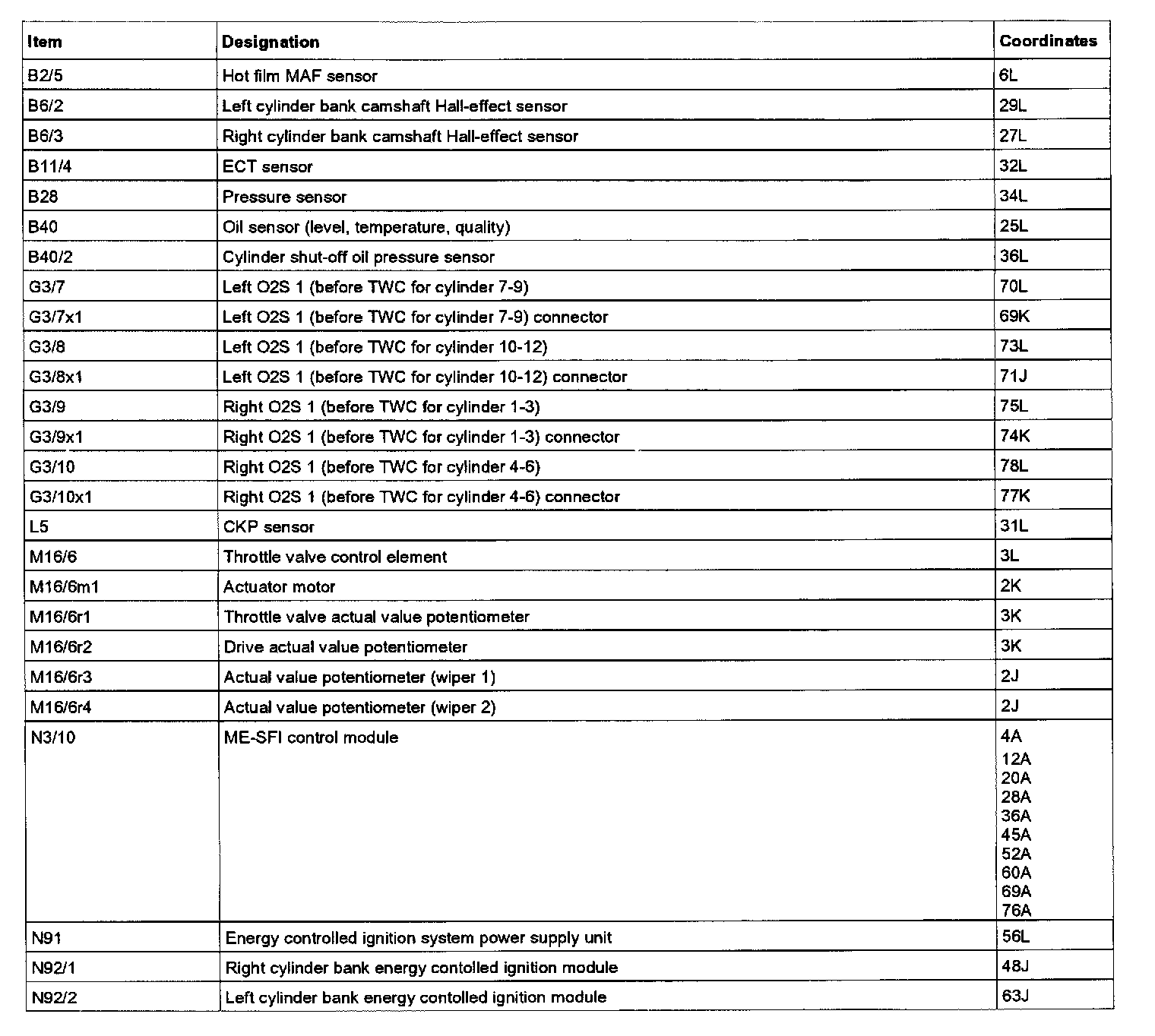

(PART 1) Legend For ME-SFI Fuel Injection & Ignition System:

(PART 2) Legend For ME-SFI Fuel Injection & Ignition System:

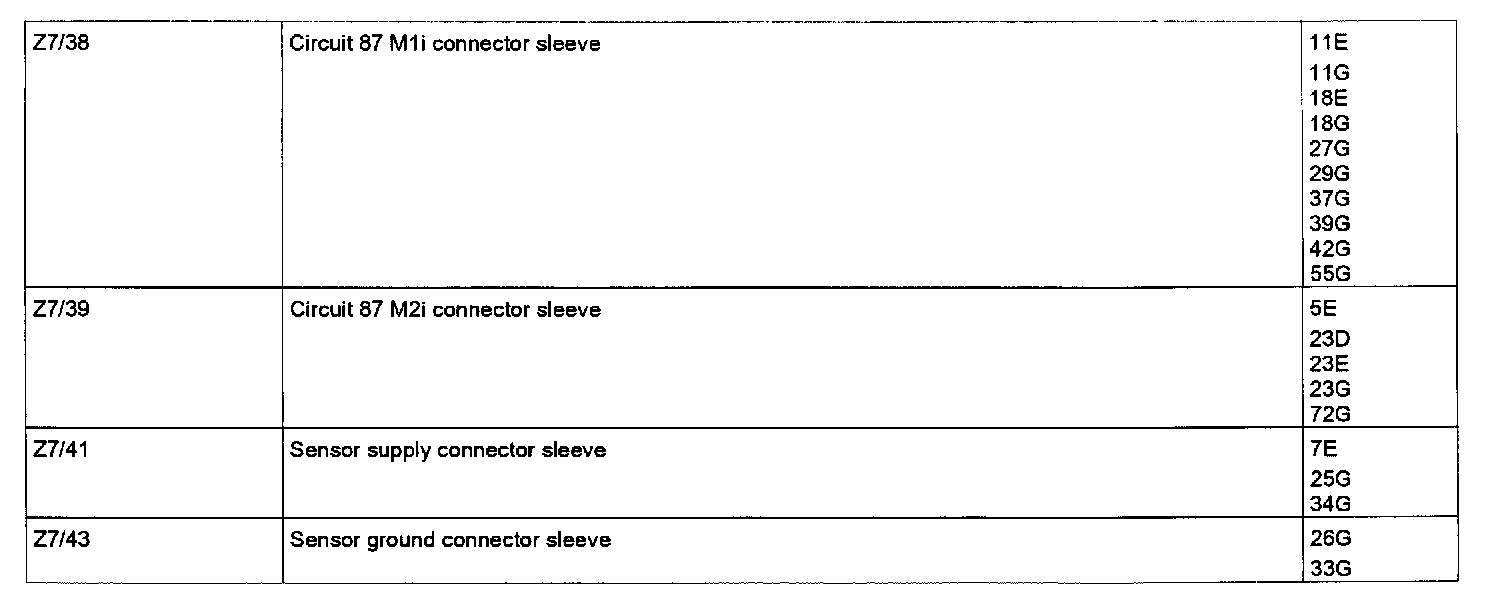

(PART 3) Legend For ME-SFI Fuel Injection & Ignition System:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
