Fuse and Relay Box, Right PE54.15-U-2102SI

Fuse and Relay Box, Right PE54.15-U-2102SI
- with CODE (990) AMG vehicles

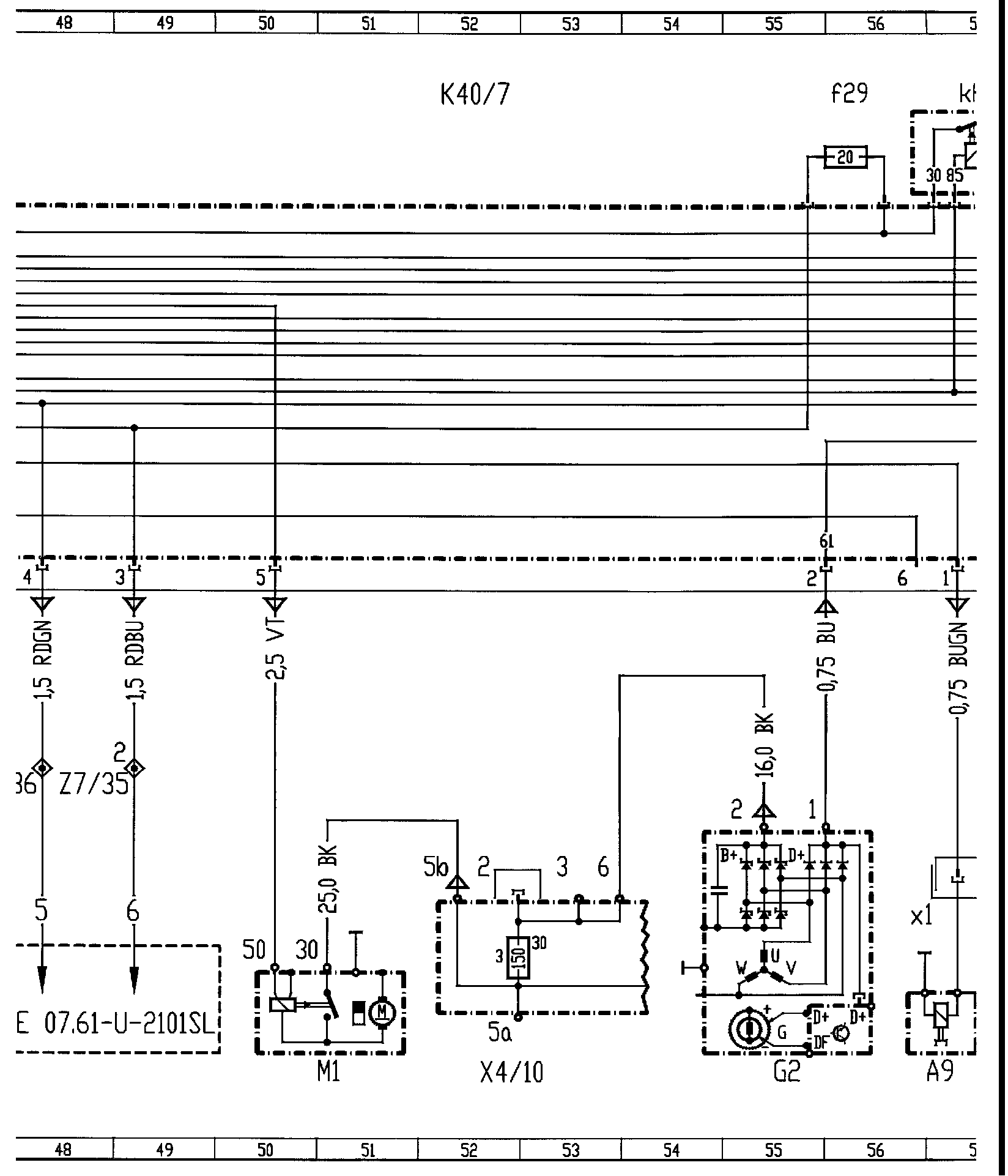

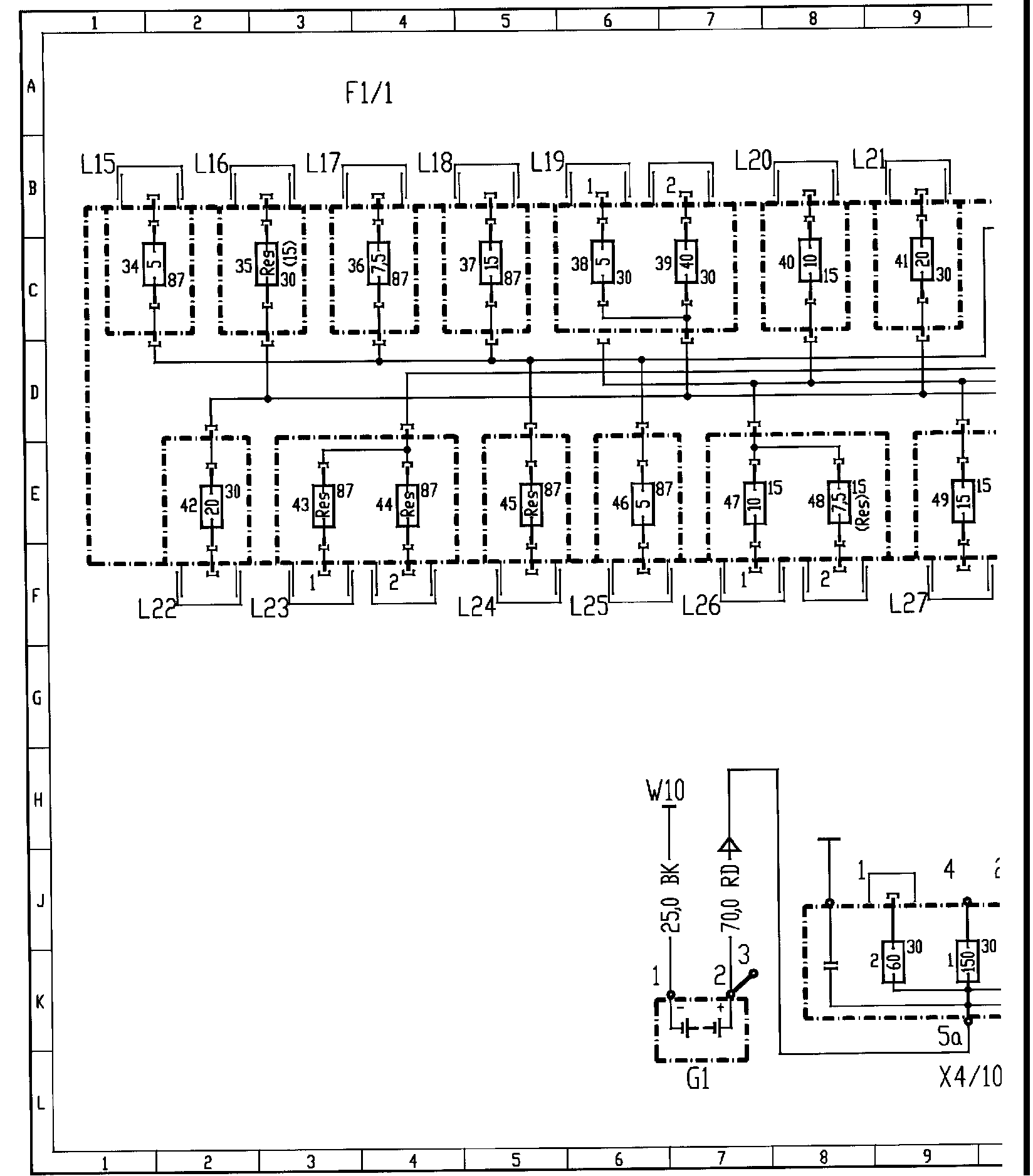

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

Fuse And Relay Box, Right:

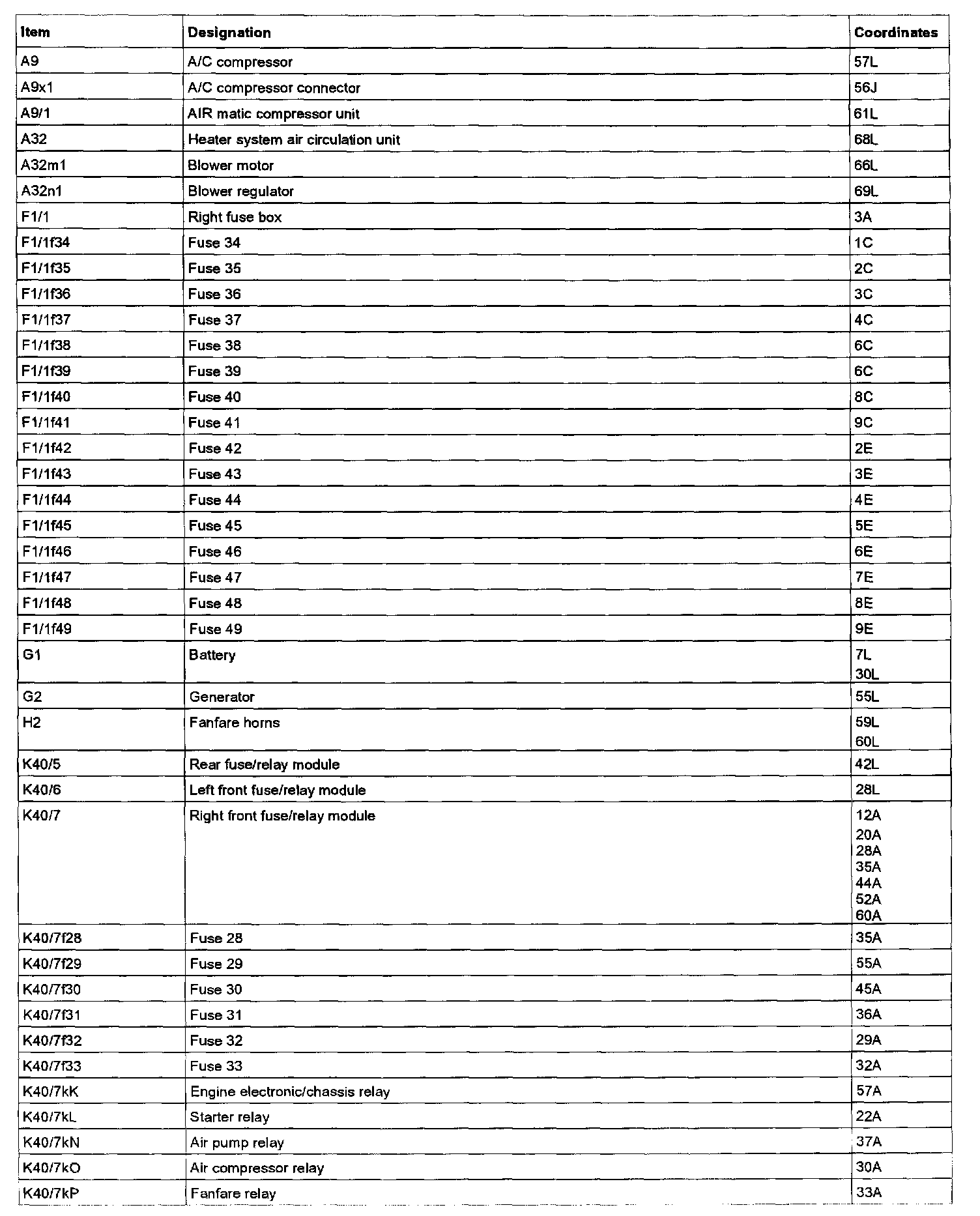

(PART 1) Legend For Fuse And Relay Box, Right:

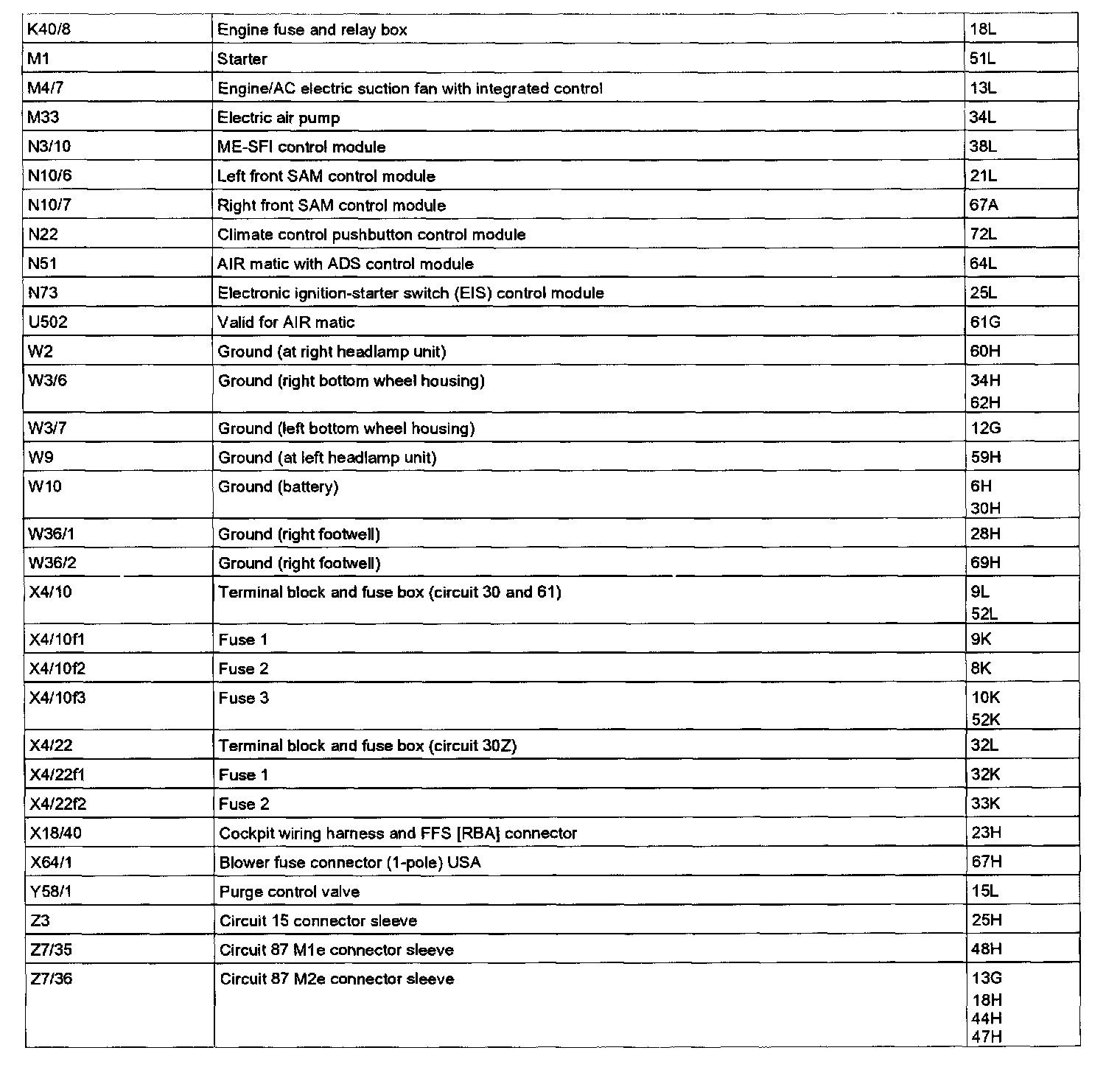

(PART 2) Legend For Fuse And Relay Box, Right:

Component Locations: Component Location photographs can be found via their component names at the vehicle level. Component Locations
