Authorization, Function

Authorization, Function

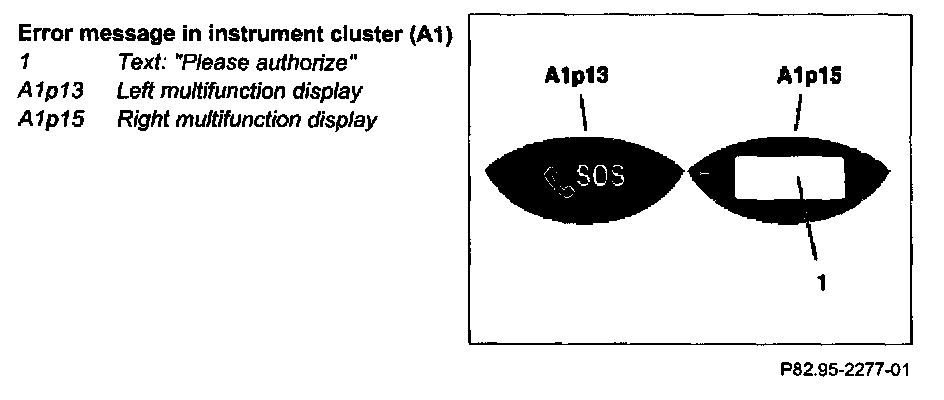

Error Message In Instrument Cluster (A1):

Authorizing TELE AID emergency call
With the authorization the service provider (Tegaron company) authorizes to actuate an TELE AID emergency call. The authorization is vehicle and not person-related.

Authorization is required in the following cases:
- When the system is initially started up.
- With a new SIM card (Subscribe Identification Module) for TELE AID
- When the vehicle owner changes
- After expiration of a period of 6 months following last authorization (this procedure is accomplished automatically in the background).

During authorization a check is accomplished via mobile telephone:
- The validity of the SIM card (for TELE AID) installed in the telephone transmitter/receiver and TELE AID, D2B (A35/17).

NOTE: TELE AID SIM is not installed ex factory in all vehicles. The card is installed on vehicles model series A208, 215 and 220 and on vehicle model series 129, W203, C208 and 210 the card must be installed by the dealer.

- The vehicle identification number (VIN).

If the system is not authorized a TELE AID emergency call is not possible. In this case "only" a 112 emergency call (without emergency call telegram) is transmitted, which does not require authorization.

When the system is not authorized the TELE AID pushbutton switch (S93/3) indicator lamp comes on and an error message appears on the display in the instrument cluster (see Fig.).

To ensure a trouble-free operatic, the following should be avoided during authorization:
- Actuating an emergency alarm/telediagnosis or
- switching off the ignition or
- switching off the telephone or
- setting TELE AID to diagnosis mode (via STAR diagnosis).

NOTE: Misuse of emergency call alarm is subject to punishment!

Procedure when alarm is triggered erroneously.
If an emergency call is triggered erroneously in the workshop it is not possible to interrupt it even disconnecting the battery. In this case always wait until voice contact is made with police. Then inform police of unintentional actuation to prevent rescue vehicles from starting their rescue service.

Authorization TELE AID telediagnosis
With the authorization the service provider (Mercedes-Benz Customer Assistance Center (CAC)) authorizes to trigger a TELE AID telediagnosis call (roadside assistance call) and a TELE AID information call. The authorization is vehicle and not person-related.

Authorization is required in the following cases:
- When the system is initially started up.
- With a new SIM card (subscriber identification module) for TELE AID
- When the vehicle owner changes

During authorization a check is accomplished via mobile telephone:
- The validity of the SIM card (for TELE AID) installed in the telephone transmitter/receiver and TELE AID, D2B (A35/17).
- The vehicle identification number (VIN).

If the system is not authorized a TELE AID diagnosis call and TELE AID information call is not possible.

If the system is not authorized the indicator lamp in the TELE AID pushbutton switch (S93/3) goes on and the an error message appears on the instrument cluster/COMAND display.

To ensure a trouble-free operatic, the following should be avoided during authorization:
- Actuating telediagnosis or
- switching off the ignition or
- switching off the telephone or
- setting TELE AID to diagnosis mode (via STAR diagnosis).

NOTE: For questions concerning authorization, deauthorization and diagnosis contact CAC Maastricht:

Calling number: 0031-433 56 2312
Fax: 0031-433 56 2313

NOTE: For all questions concerning inquiries contact debitel:

Calling number: 0180-53 55 444
Fax: 0180-51 47 144

Authorization procedure for TELE AID emergency call, TELE AID telediagnosis

NOTE: Only the GSM reception is required for the authorization sequence. This means that authorization can be accomplished where mobile telephones function as well.

Ancillary work
- The salesperson must submit the application together with the user and complete the transfer process to the user.
- The mechanic must perform the authorization process, i.e. he must ensure that a vehicle with functioning telematic services is handed over to the user.

Application and application shipping for TELE AID
Together with the user the salesperson must completely prepare two application forms (debitel order telematic and debitel card order for Mercedes-Benz special equipment) and send them to debitel.

When filling out the applications ensure that the data (vehicle chassis number, vehicle license plate, GSM number) is completely and correctly entered, otherwise it is not possible to perform the authorization. It is particularly important to enter the authorization date (access authorization date).

After filling out the applications send to the CAC (Customer Assistance Center) (fax).

Checking delivery date
Authorization of TELE AID is performed on the day entered in the application for access authorization.

This deadline depends on the delivery date of the vehicle from the Mercedes-Benz plant. The salesman coordinates the transfer date with the user and plans the date for the access authorization.

The dealer picks up the confirmation for the delivery date from Mercedes-Benz and then plans the date for access authorization.

NOTE: The authorization works only on this particular day (key word: Authorization for specific day, the authorization messages are transmitted to the telephone transmitter/receiver and TELE AID, D2B (A35/17) by the service centers via the GSM network. This is only accomplished on a particular day, i.e. the access authorization date.

Modifying access authorization date
If the day of the authorization is postponed, inform CAC about the the new deadline (telephone fax).

For precise identification of the vehicle to be authorized the CAC requires the data of the telematic application.

If the CAC is not informed about the modification of the access authorization date the dealer is not able to perform an authorization (changing form for access authorization date).

Before starting the actual authorization check the following list. Refer to the checklist to ensure that the authorization is prepared in full.

1. The TELE AID SIM card is installed in the telephone transmitter/receiver and TELE AID, D2B (A35/17)
2. The telephone transmitter/receiver and TELE AID, D2B (A35/17) is programmed.
- If the telephone transmitter/receiver and TELE AID, D2B (A35/17) is installed ex factory it is already programmed at the company.
- If the telephone transmitter/receiver and TELE AID D2B is a replacement unit it should be programmed on site.
3. TELE AID is applied for (telematic application sent to debitel)
4. In the handset is no SIM card inserted
5. The authorization corresponds to the access authorization day on the telematic application
6. PIN for TELE AID SIM card is known

NOTE: The PIN is stored in the letter of the telephone card, which can only be opened when the customer is present.

Authorization sequence
1. Switch on c. 15 R (ignition)
2. Display on handset informs that no telematic services (error message in instrument cluster) are available
3. Display on handset informs that the service mode* is presently active, quit this mode
4. Display on handset requests PIN for TELE AID SIM, enter PIN on handset (entered numbers are not indicated, only space holders (asterix)
5. Display on handset requests further processing steps for entered PIN code, store PIN, which is absolutely necessary for using TELE AID
6. Automatic authorization is now started and completed after 15 minutes. C. 15 R should be switched on during this time.

Service mode*
The service mode on the telephone transmitter/receiver and TELE AID, D2B (A35/17) deactivates the automatic switchover of the system to the additional battery, when the main power supply is interrupted. The service mode is switched on by STAR diagnosis. It is also switched off by STAR diagnosis or via the handset.

Following authorization the error messages in the instrument cluster are erased. If the error messages are not erased after an expiration of 15 minutes a malfunction is present.

NOTE: Switch ignition on and off after authorization time.

Error limitation
If both error messages are still active both services could not be authorized. If only one error message is active this service could not be authorized.

Reading out DTC's
Read out DTC of the telephone transmitter/receiver and TELE AID, D2B (A35/17) by means of STAR diagnosis. Compare chassis number stored in the telephone transmitter/receiver and TELE AID, D2B (A35/17) with chassis number in vehicle papers. If error on the vehicle and on the telephone transmitter/receiver and TELE AID, D2B (A35/17) could be excluded contact CAC. The CAC helps authorizing TELE AID. Chassis number and DTC's are required for this purpose. Moreover, they check whether the access authorization date coincide with the date specified by CAC. The CAC clarifies together with dealer the error cause for the services (TELE AID emergency call/telediagnosis). Then authorization is performed again.

Handing over vehicle
Following authorization the vehicle can be handed over to the user.

Coordinating later authorization date
TELE AID could not be authorized until the time specified, however, the user insists on handing over the vehicle.

A new TELE AID authorization date should be agreed upon with user.

On this specific day the vehicle should be present in the workshop. The CAC is informed about the new access authorization date in due time. Inform the user that the TELE AID is not operative and have him sign a confirmation form ("Shut-down confirmation form").

TELE AID should not be authorized
The vehicle is, however, equipped with a TELE AID system, the TELE AID service should not be authorized (no telematic application present). The user is informed, that the system does not work and signs a form for confirmation (preprinted form). The error messages indicated in the instrument cluster are deactivated by STAR diagnosis. Glue sticker (out or order) on cover of emergency call pushbutton (S93/3). Ensure that the CTEL and TELE AID

Transmitter/receiver, D2B (A35/17) is no longer in the production mode*
(with STAR Diagnosis).
The production mode deactivates all TELE AID services. The production mode is used in the Mercedes-Benz plant and is switched off at the end of the line. The production mode is also switched off when the TELE AID service is authorized. If the CTEL and TELE AID transmitter/receiver, D2B (A35/17) is not authorized, because the user does not want the authorization, it is essential to exit from the production mode with the STAR Diagnosis.

Deauthorization
Written notice by the user
If the TELE AID is no longer used a notice should be signed by the user (form "Notice of TELE AID service").

The dealer sends the notice to the CAC.

The notification for the TELE AID services should have the following specifications:
- Vehicle chassis number (VIM)
- SA code for telephone transmitter/receiver and TELE AID, D2B (A35/17)
- GSM number for TELE AID SIM card
- Desired deauthorization date
- Name of customer
- Signature of customer
- Stamp of dealer
- Signature of dealer

Deauthorizing TELE AID by the dealer
Deauthorization of TELE AID system is performed by the dealer. This is accomplished on the day entered on the notice as deauthorization date.

For deauthorization of the TELE AID services check the following list.
1. Check whether TELE AID services are still active
2. Send TELE AID notice to CAC
3 Ensure that the TELE AID SIM card is still installed in the control module
4. Ensure that there is not SIM card in the handset

Deauthorization sequence
1. Switch on c. 15 R on the deauthorization date (ignition).
2. Enter PIN for TELE AID SIM card
3. Now the deauthorization is performed automatically.
4. The deauthorization is terminated after 15 minutes. The error messages (authorizing SOS/authorizing telediagnosis) as well as the lamp in the TELE AID pushbutton switch (S93/3) are active.
5. If this is not the case the dealer can request the deauthorization from the CAC by telephone.

Changing owner of a TELE AID vehicle

NOTE: TELE AID is only allowed to be operated with a regular police license plate (legal prescription) and not with another one (for example red license plate).

If the TELE AID vehicle owner changes the procedure differs depending on the TELE AID status (authorized/not authorized) before and after the owner change.

Four different cases are to be distinguished:
1. Previous and subsequent owner use TELE AID
2. Previous and subsequent owner do not use TELE AID
3. Previous owner uses TELE AID and subsequent owner does not use TELE AID
4. Previous owner does not use TELE AID and subsequent owner uses TELE AID

Previous and subsequent owner use TELE AID
The TELE AID service of the previous owner should be given notice and deauthorized. The TELE AID services of the subsequent owner should be applied for and deauthorized.

Previous and subsequent owner do not use TELE AID
The subsequent owner confirms in written form (form) that he is informed by that the TELE AID does not work

Previous owner uses TELE AID and subsequent owner does not use TELE AID
The TELE AID service of the previous owner should be given notice and deauthorized.

An application for the TELE AID services must not be performed for the subsequent owner. However, the error messages for TELE AID emergency call and telediagnosis are to be deactivated via STAR diagnosis. The subsequent owner confirms in written form (form) that he is informed by that the TELE AID does not work

Previous owner does not use TELE AID and subsequent owner uses TELE AID
When the vehicle is handed over by the previous owner the error messages for authorization of TELE AID emergency call and telediagnosis are to be activated via STAR diagnosis. An application is to be made for the TELE AID service for the subsequent owner as well as authorization.

TELE AID control module replacement (applies not when vehicle owner changes)
The telephone transmitter/receiver and TELE AID, D2B (A35/17) must be replaced, since an error in the TELE AID emergency call, TELE AID telediagnosis or on the telephone function is present. Before replacing the telephone transmitter/receiver and TELE AID, D2B (A35/17) check the previous TELE AID status (authorized/not authorized).

Control module replacement with authorized TELE AID Perform the following steps:
1 Preprinted form "Modification application for control module replacement" should be filled out by the dealer and user and sent to the CAC.
2. Remove defective telephone transmitter/receiver and TELE AID, D2B (A35/17)
3. Remove TELE AID SIM card from telephone transmitter/receiver and TELE AID, D2B (A35/17)
4. Install TELE AID SIM card into new telephone transmitter/receiver and TELE AID, D2B (A35/17)
5. Install new telephone transmitter/receiver and TELE AID, D2B (A35/17) into vehicle
6. Program new telephone transmitter/receiver and TELE AID, D2B (A35/17)for TELE AID
7. Authorize TELE AID (without new authorization TELE AID service is not possible with the new control module)

Control module replacement with non-authorized TELE AID
Perform the following steps:
1. Remove defective telephone transmitter/receiver and TELE AID, D2B (A35/17)
2. Install new telephone transmitter/receiver and TELE AID, D2B (A35/17) into vehicle
3. Deactivate error messages for TELE AID emergency call and telediagnosis.

Replacing TELE AID SIM card
TELE AID SIM card replacement with authorized TELE AID
1. Preprinted form "Modification application for SIM card replacement" should be filled out by the dealer and user and sent to the CAC.
2. Deauthorization date for old and card authorization date for new card are filled out in the modification application.
3. Dealer sends application filled out to the CAC.
4. TELE AID is deauthorized at the specified deauthorization date with the old card
5. TELE AID is authorized at the specified deauthorization date with the new card

TELE AID SIM card replacement with authorized TELE AID
The SIM card installed in the telephone transmitter/receiver and TELE AID, D2B (A35/17) is not used for TELE AID but for normal telephone calls. When replacing the card TELE AID related measures are not required.
