Station List, Function

Station list, function






Function

Creating station list
The voice control system (VCS) allows the user to create a list of stations. Stations selected frequently can be stored here together with freely selectable names or the proper station name. 10 entries can be stored.

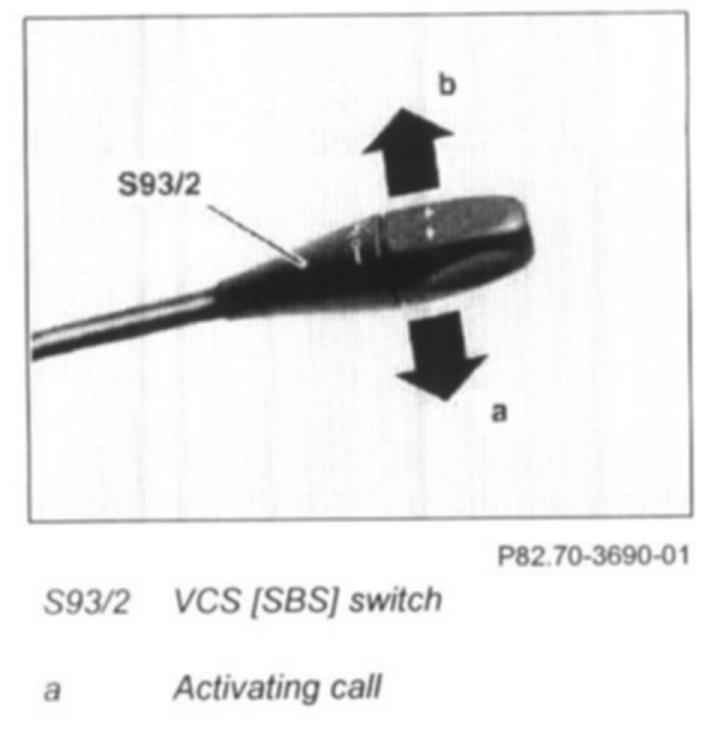

After switching on the radio and activating the VCS with the VCS switch (S93/2), the user requires the editing command:
- "Store station" to create or add to the personal station list.

After this editing command, the user is requested by the VCS to "Please say name" for entry of the station name.

If this name has been entered by the user, the VCS requests the user to say the name again as confirmation.

If a different name is given when the name is entered the second time, the VCS voice output requests the user to Please say again"

If the user then enters the first name, the VCS requests the user to repeat the name again. The system stores the station list entry (name and associated station) in the station list only when the associated name and its repetition are identical. The system voice output then indicates "Station stored".

Calling up station list entries
It is possible for the VCS user to have the complete station list read aloud with the editing command:
- Read station list

During this procedure, the user can select a certain name and thereby set a new station. Selection is accomplished by actuating the VCS switch (S93/2).

Selecting station from station list
It is also possible for the VCS user to select a station from the station list with the editing command:
- Select station

After entering this editing command, the user is requested by the VCS to enter a station name with the message "Please say name". If the user says the name used previously for storing the station in the station list, the radio is changed to the desired station after the VCS repeats the station name.

Deleting individual entries from the station list
After activation of the VCS with the VCS switch SBS (S93/2), it is possible for the user to delete an individual entry from the station list with the editing command:
- Delete station

The VCS then requests the user to save the station name to be deleted.

After entry of the station name by the user, he is asked, as a confirmation, if he really wants to delete the name.

If the user answers "Yes", the specified station name is deleted from the station list and confirmed by the VCS voice output message "Station deleted". If the user answers "No", the name remains stored.

Any other work spoken by the user terminates dialog with the VCS.

Deleting entire station list
After activation of the VCS with the VCS switch SBS (S93/2), it is possible for the user to delete all entries in the station list with the editing command:
- Delete station list

After entry of this editing command, the VCS voice output asks the user if he really wants to delete the station list. If the user answers "Yes", the voice output asks the user "Are you sure" as further confirmation for the delete command. If the user answers "Yes" to this question, all station list entries are deleted. If the answers "No", the VCS starts to read the station list entries aloud.

While the station list is been read aloud, the user can select a station to be deleted by activating the VCS switch (S93/2). The selected station is then repeated by the VCS. The user is then asked, as confirmation, if he really wants to delete the selected station.

If the user answers "Yes", the specified station is deleted from the station list. If the user answers "No", the system continues reading the station list entries aloud. Any other word terminates dialog with the VCS.

Moreover, the user can continue dialog with the VCS at any time with the VCS switch (S93/2).
