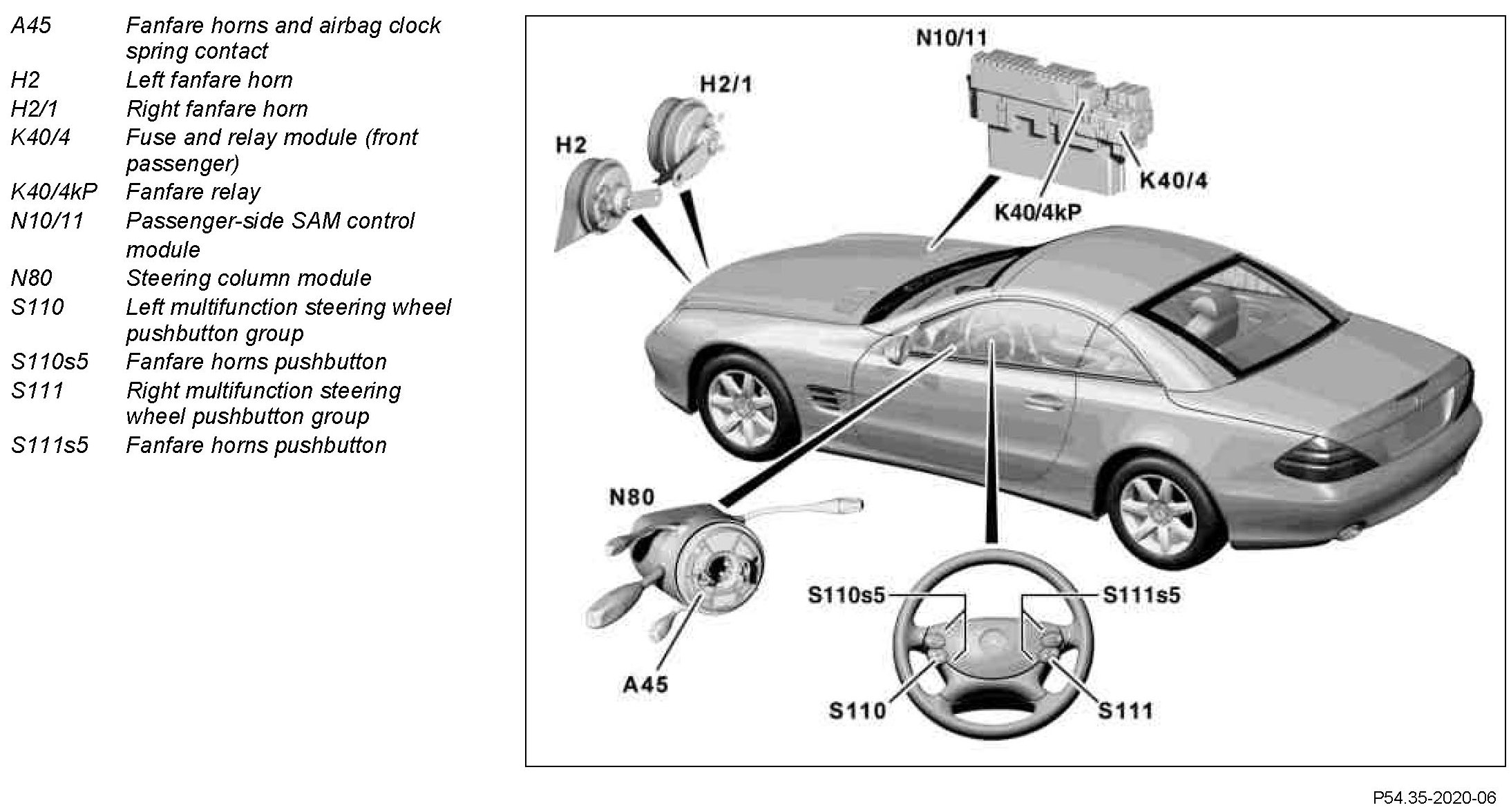

GF54.35-P-0001-01R Fanfare Position of Components
GF54.35-P-0001-01R Fanfare Position of Components
GF54.35-P-0001-01R Fanfare Position Of Components
- up to model year 08
15.03.07
The document has been updated to this date and will no longer be subject to revision.
Component Identification:
