AR54.35-P-1555RBS Remove/Install Fanfare Horns



AR54.35-P-1555RBS Remove/install Fanfare Horns
- with CODE (P99) Special model "AMG Black Series"

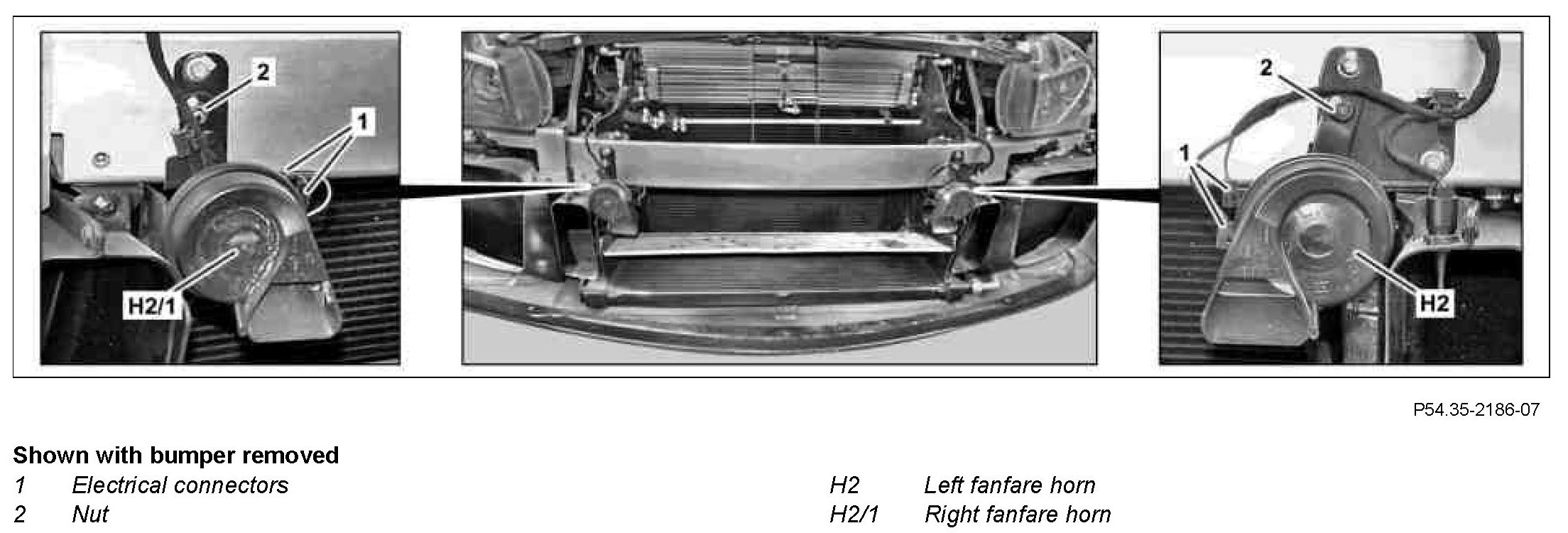

Component Identification:

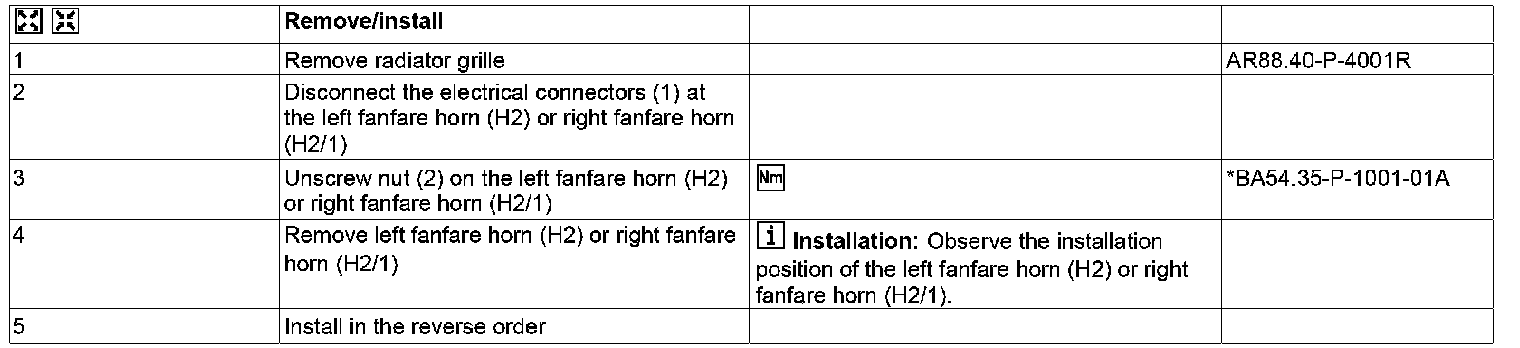

Steps 1-5:

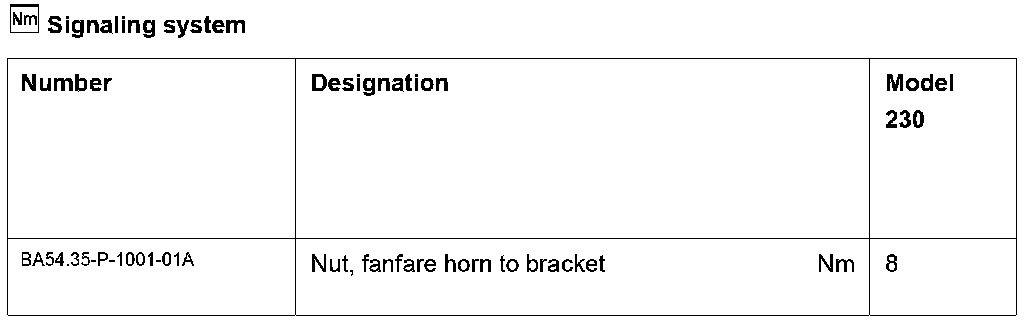

Signalling System:
