GF27.10-P-0001-02RMZ Automatic Transmission (AT), Driver Information

GF27.10-P-0001-02RMZ Automatic transmission (AT), driver information
- TRANSMISSION 722.6
- with CODE (428) Steering wheel shift buttons
- up to model year 08

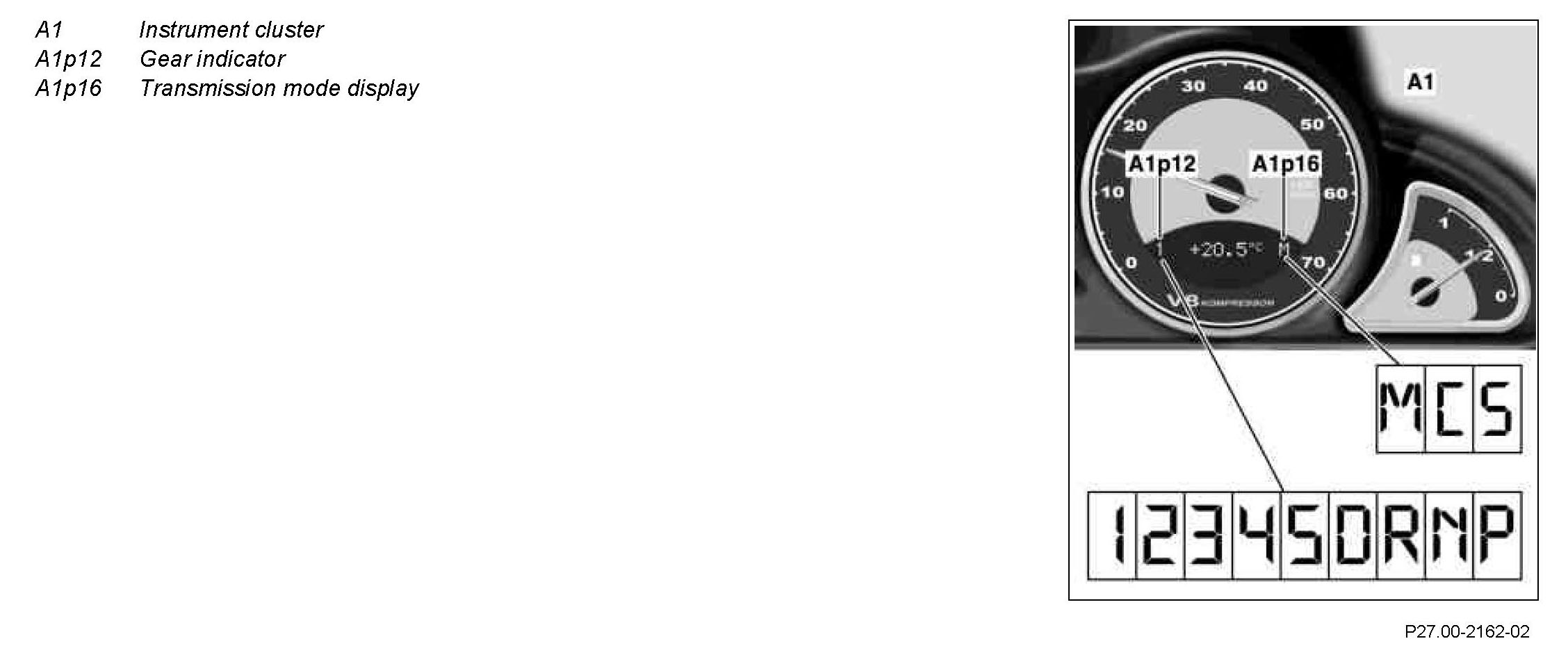

Component Identification:

Gear indicator (A1p12) in instrument cluster (A1) in sport program "S" and in comfort program "C"
Shows the driver the currently selected shift range "2", "2", "3", "4" or selector lever position "D", "R", "N" or "P".

Gear indicator (A1p12) in instrument cluster (A1) in manual program "M"
Shows the driver the gear shifted "1", "2", "3", "4", "5".

Transmission mode display (A1p16) in instrument cluster (A1)
Shows the driver the program selection "S" (sports program), "C" (comfort program) or "M" (manual program) performed at the transmission mode switch (S16/5).
