Cellular Telephone (CTEL) PE82.70-U-2000RD


Cellular Telephone (CTEL)

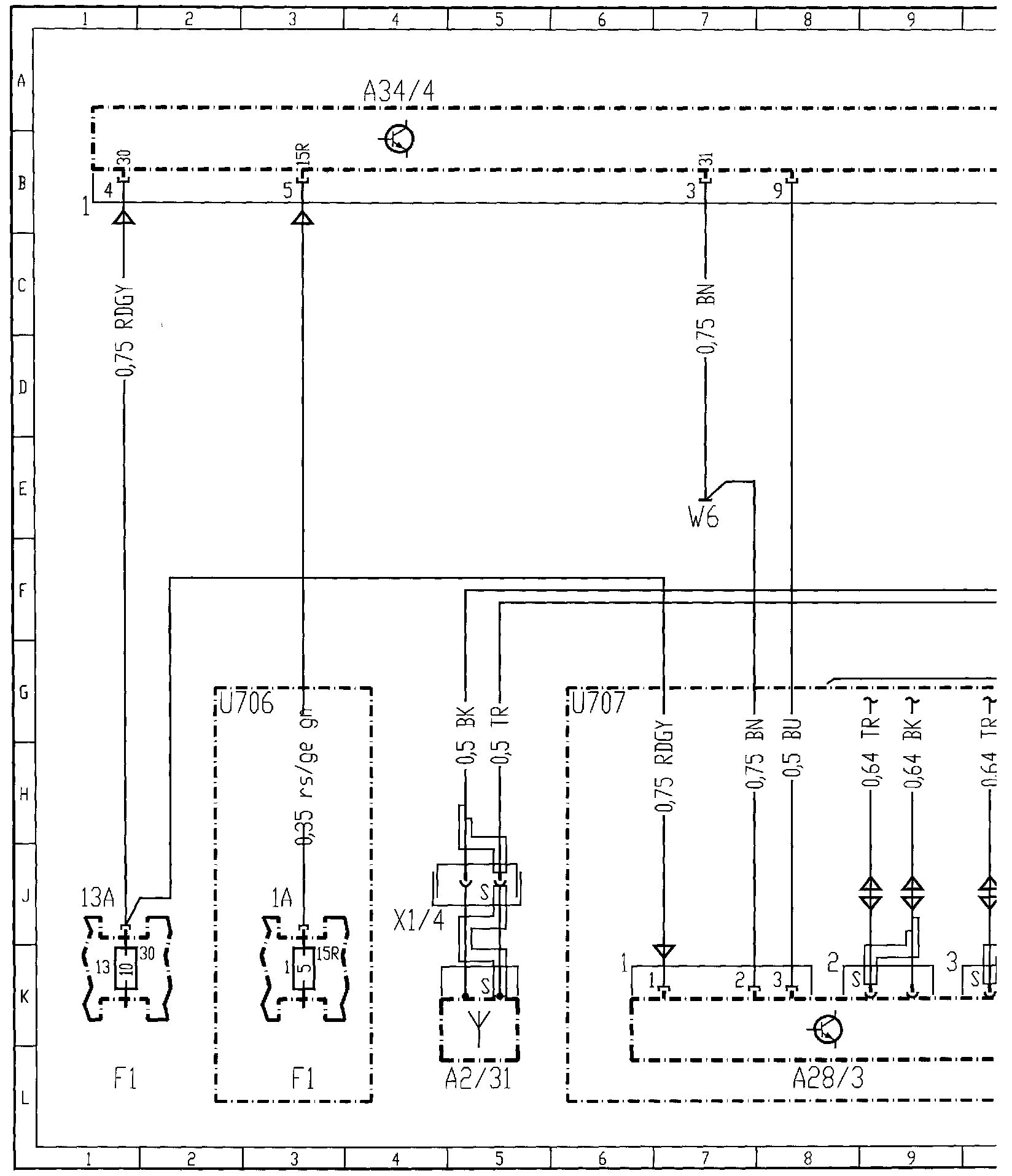

KB8Cellular Telephone (CTEL), Part 1:

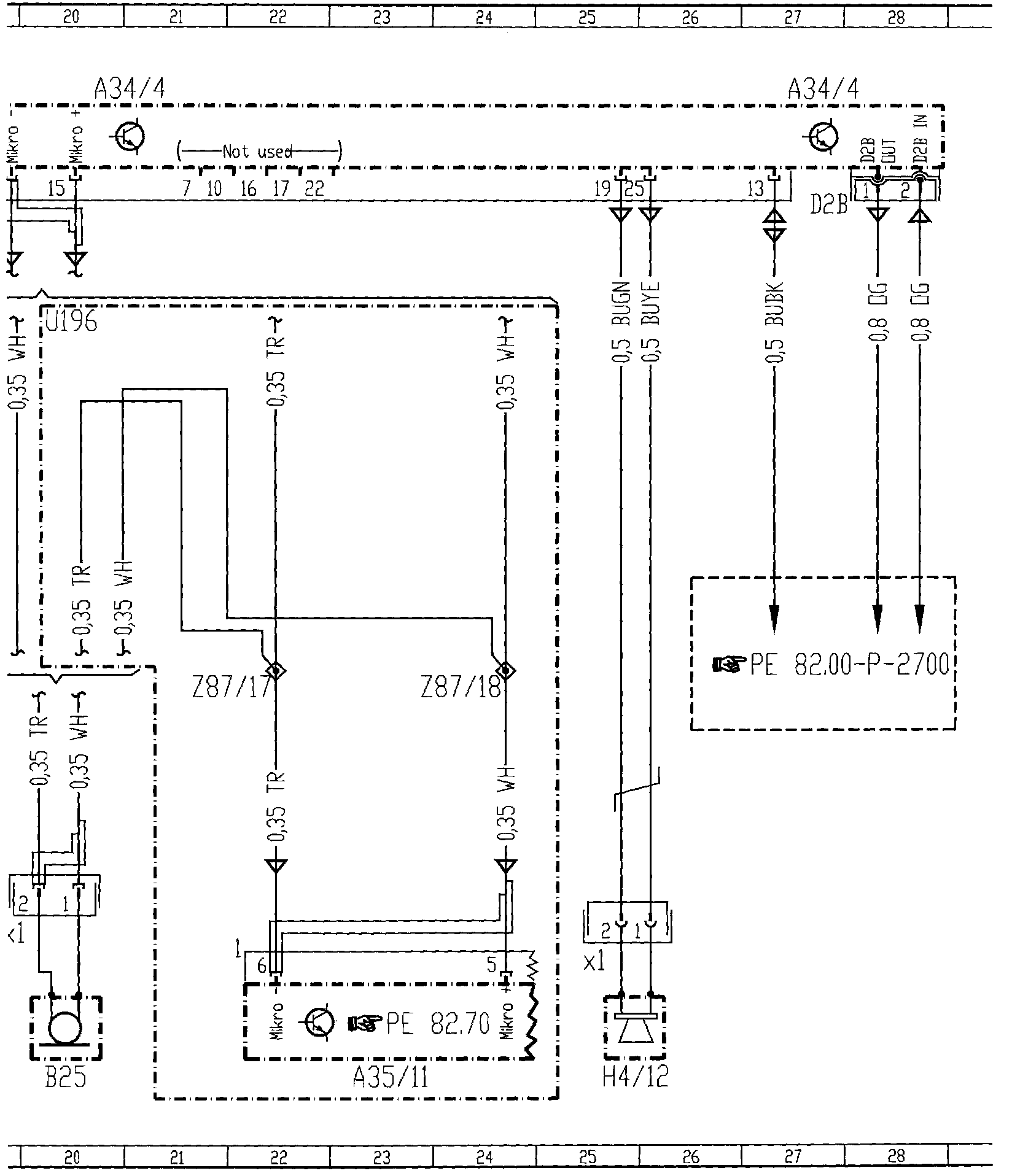

[m8Cellular Telephone (CTEL), Part 2:

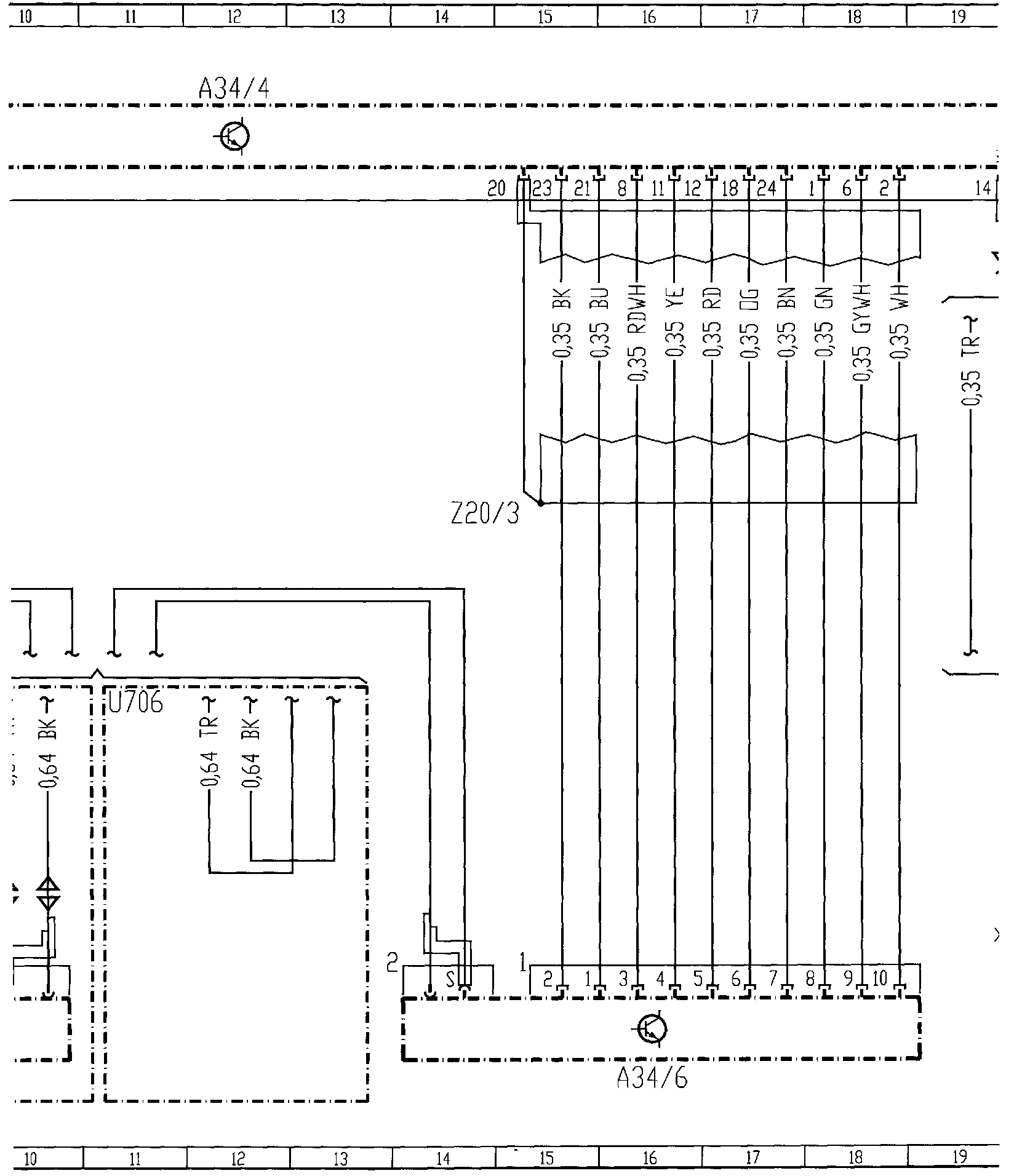

Cellular Telephone (CTEL), Part 3:






Cellular Telephone (CTEL), Part 4:
