Emergency Contact Module
Emergency Contact Module
Emergency Call System
���p9��p���Wiring Diagram:
Connector Assignment:

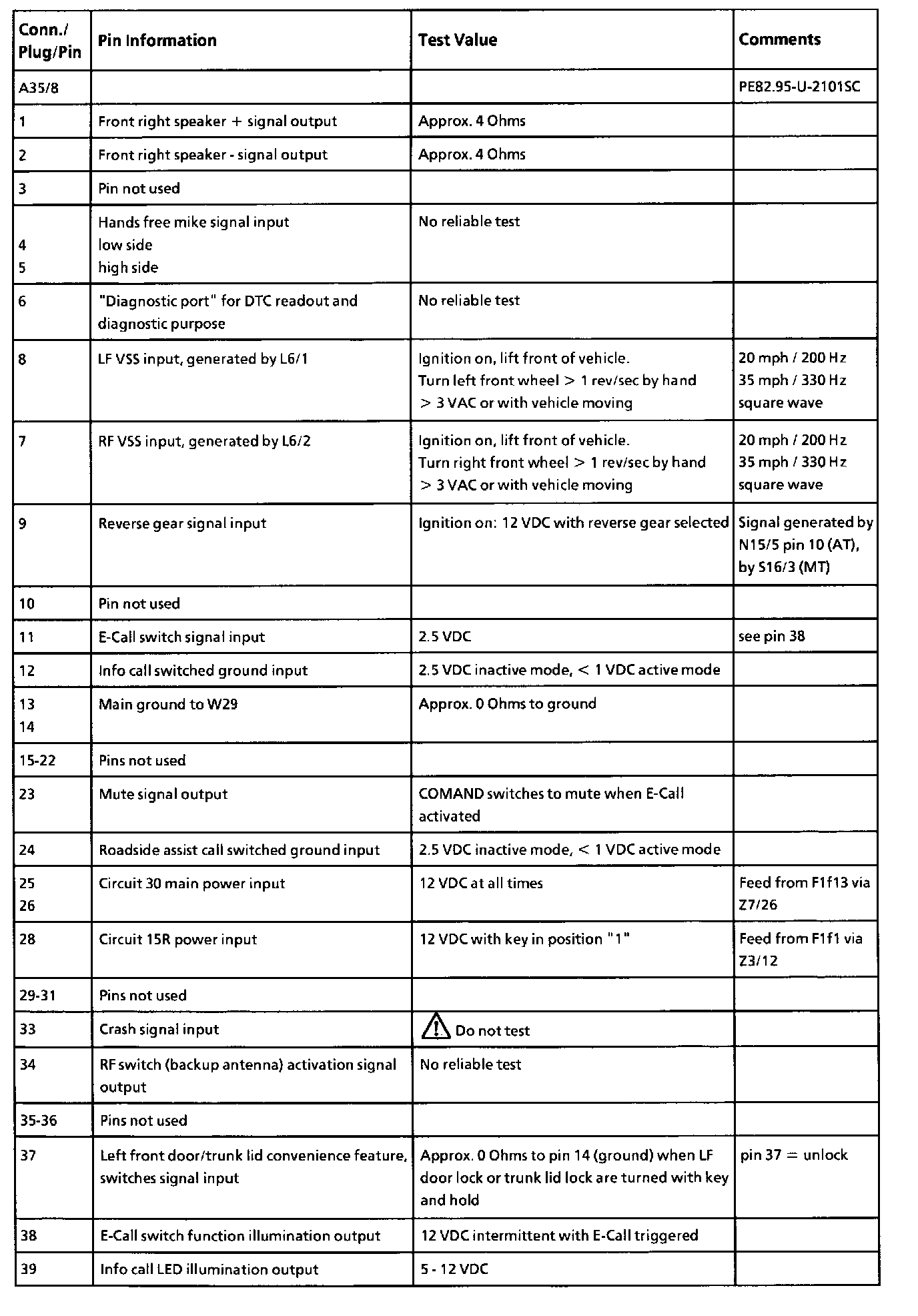

Pin Information, Part 1:

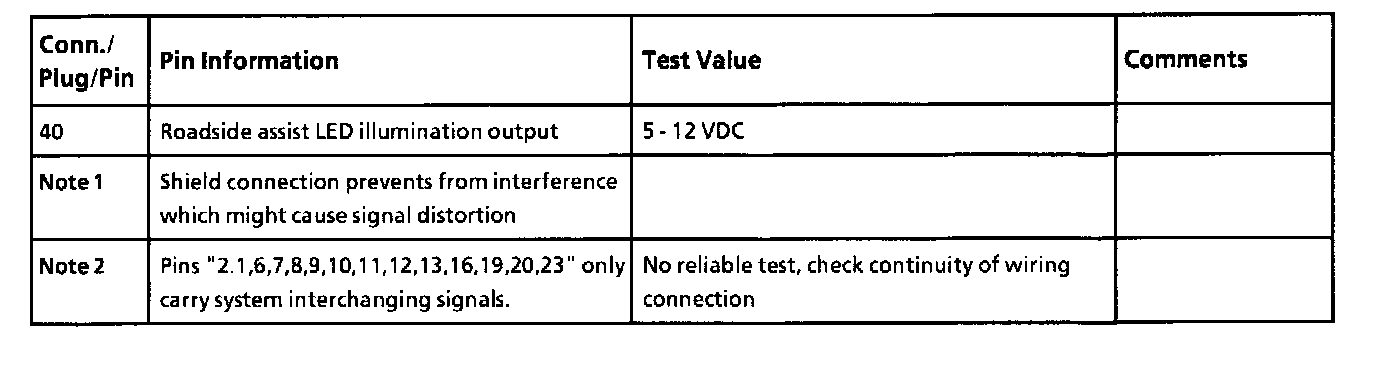

Pin Information, Part 2:
