Condenser HVAC: Service and Repair
Removing and installing condenser

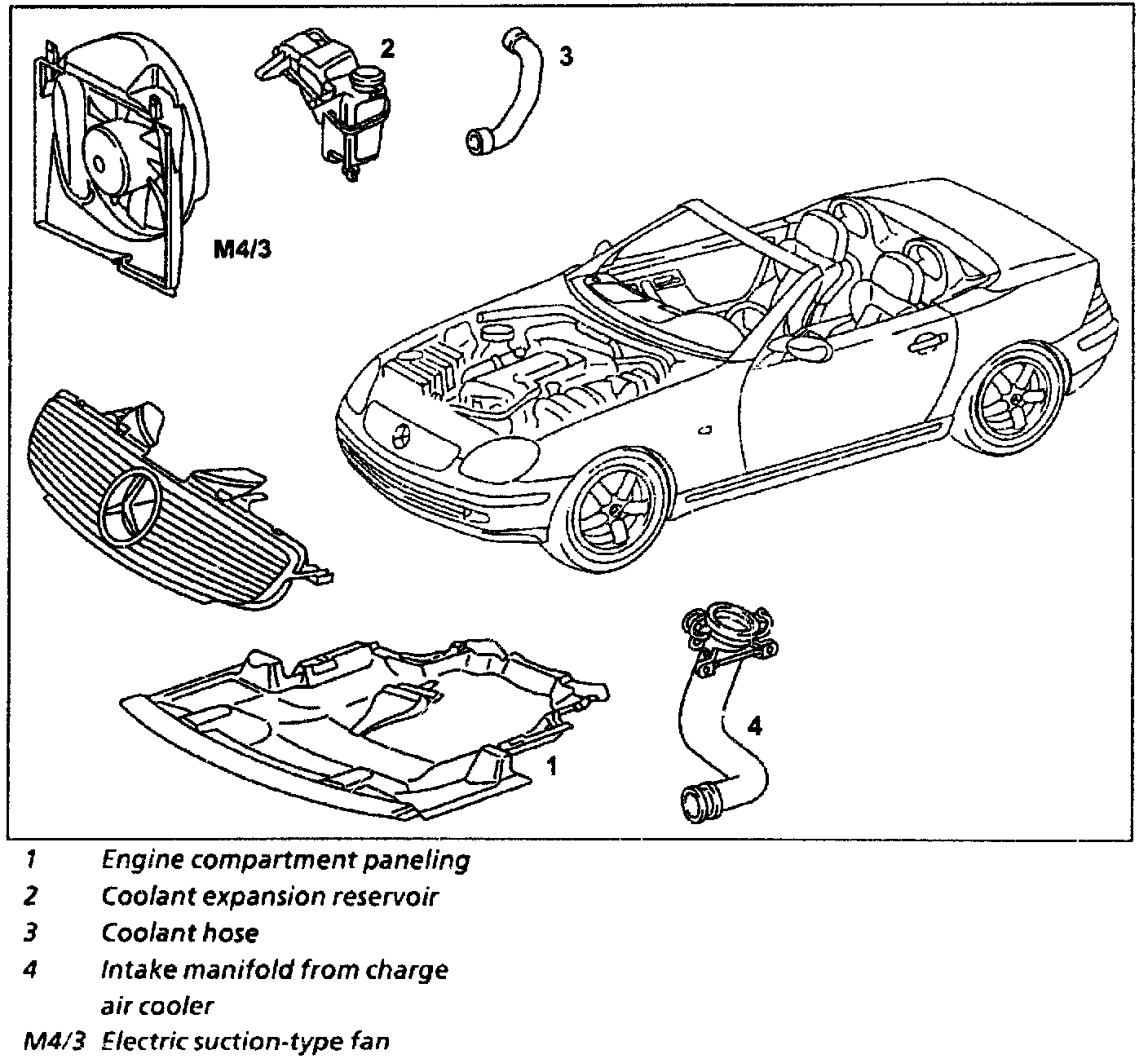

Component Id:

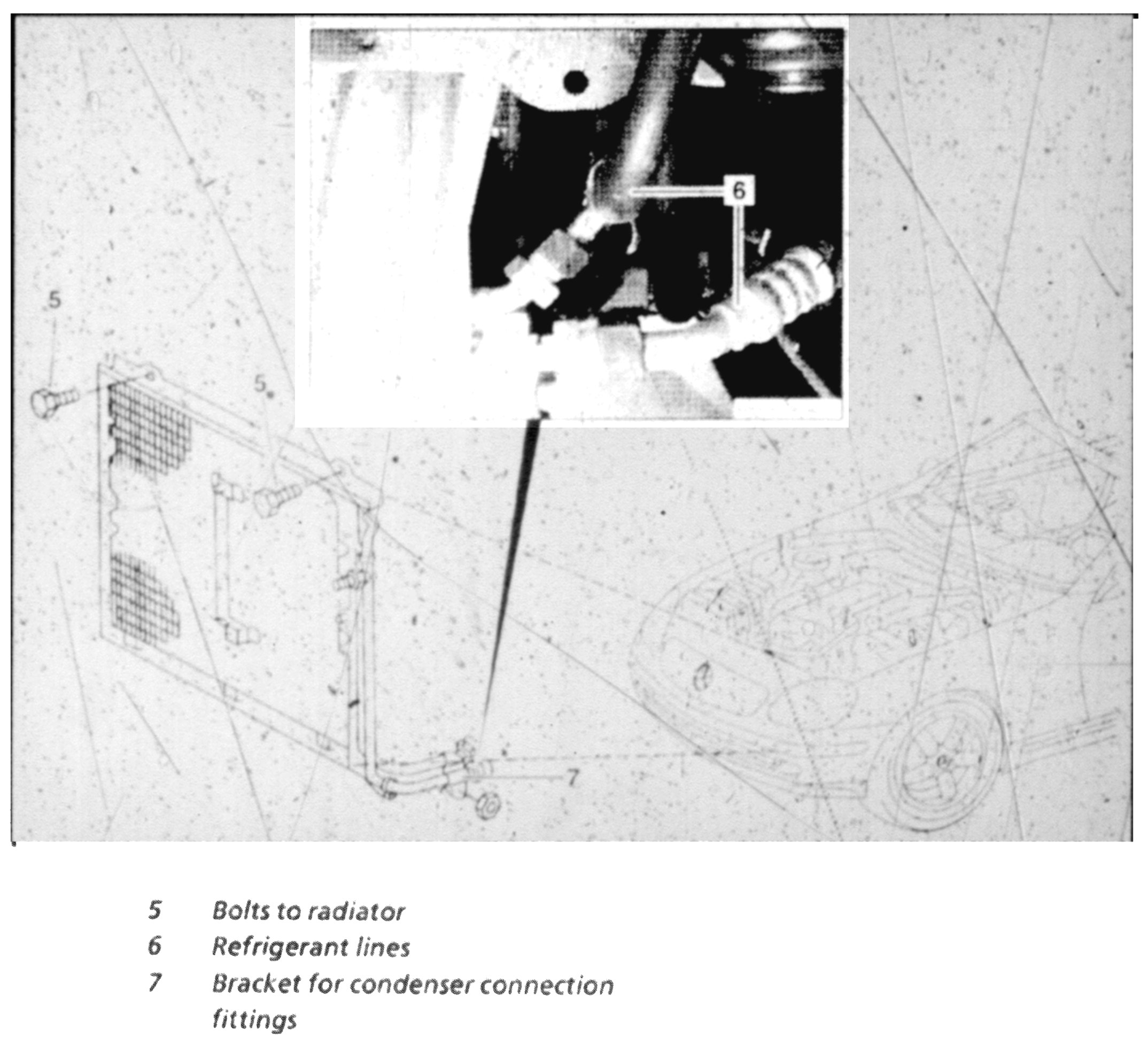

Component Id:

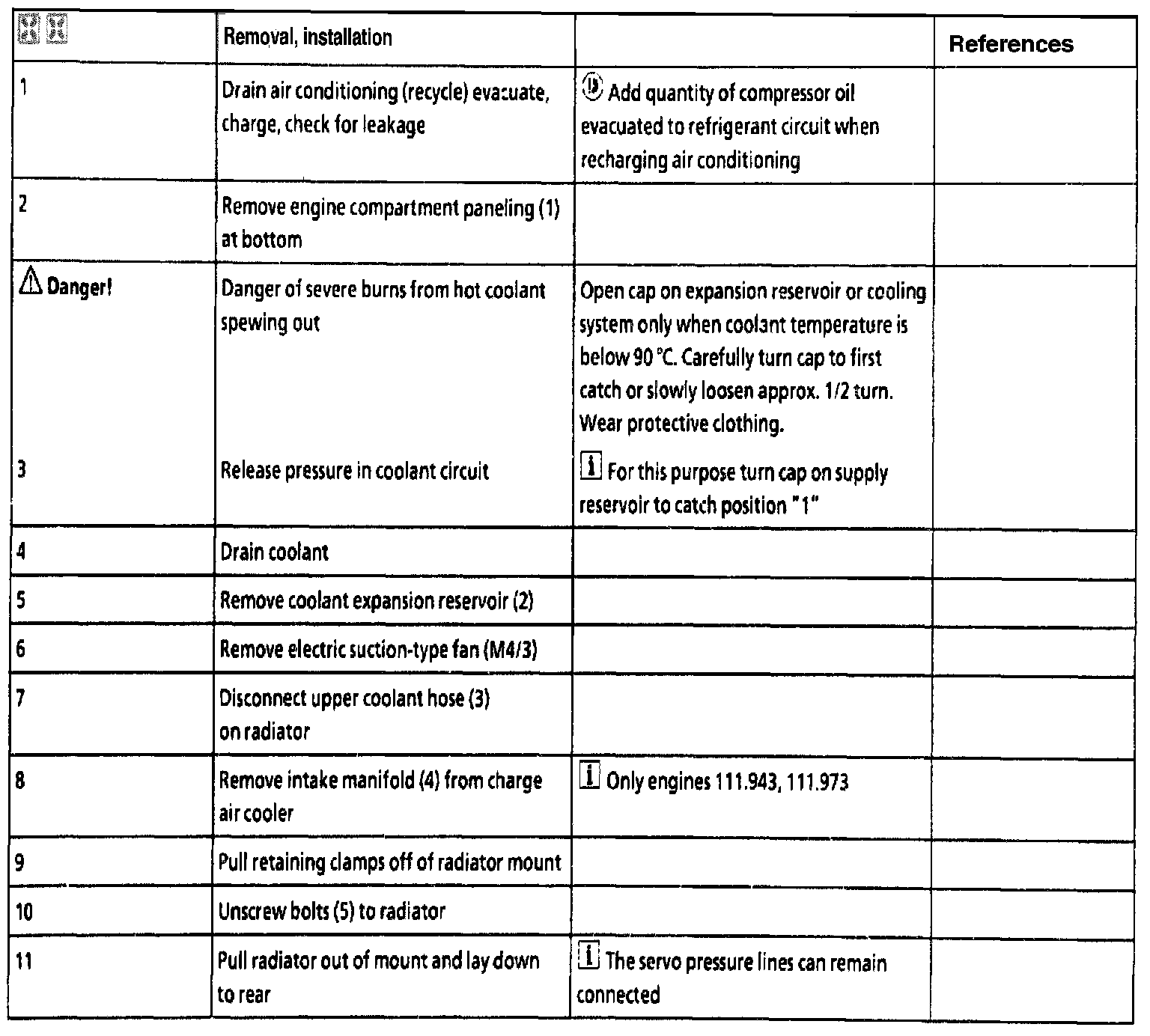

Remove, Install - Steps 1-11:

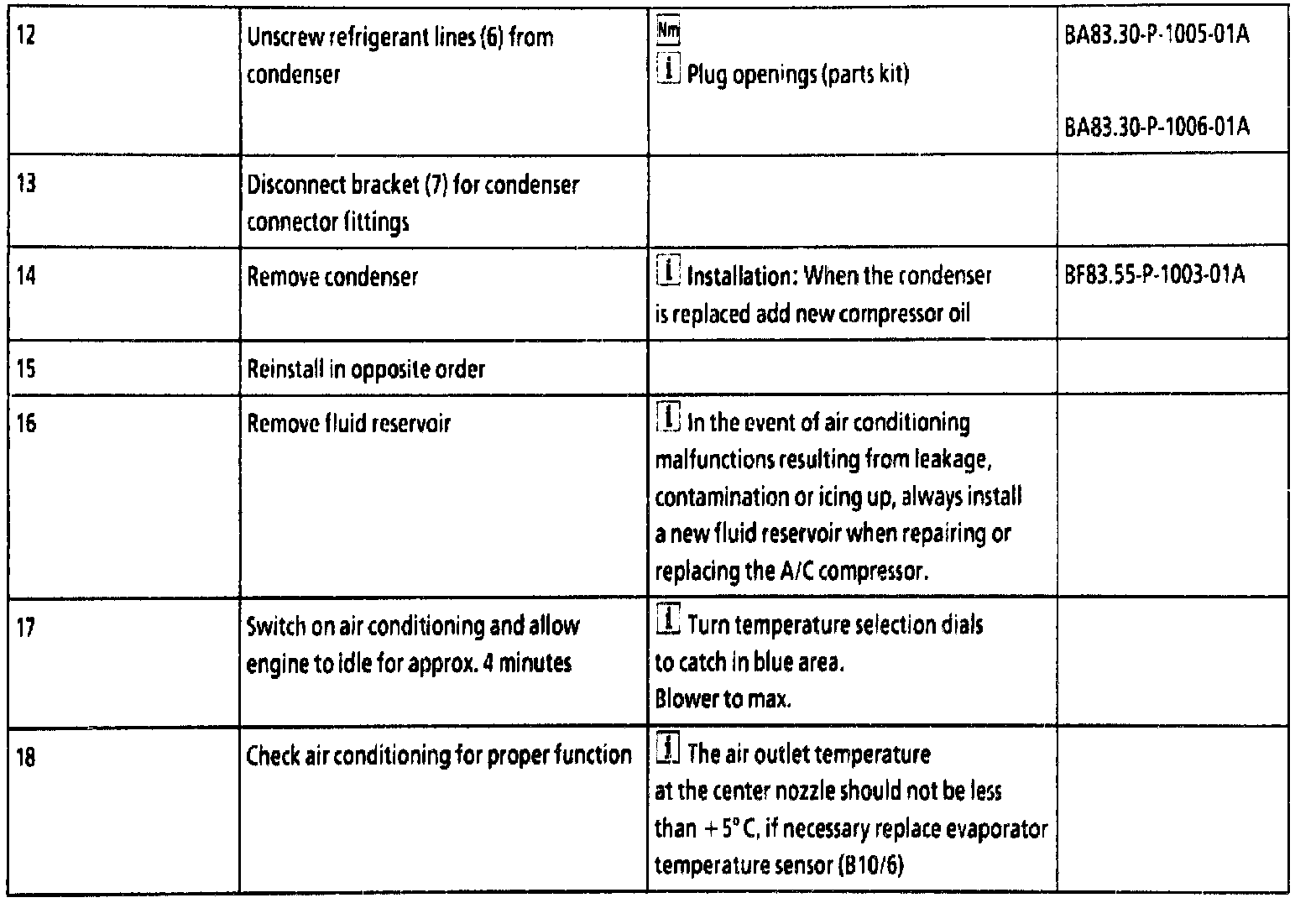

Remove, Install - Steps 12-18:

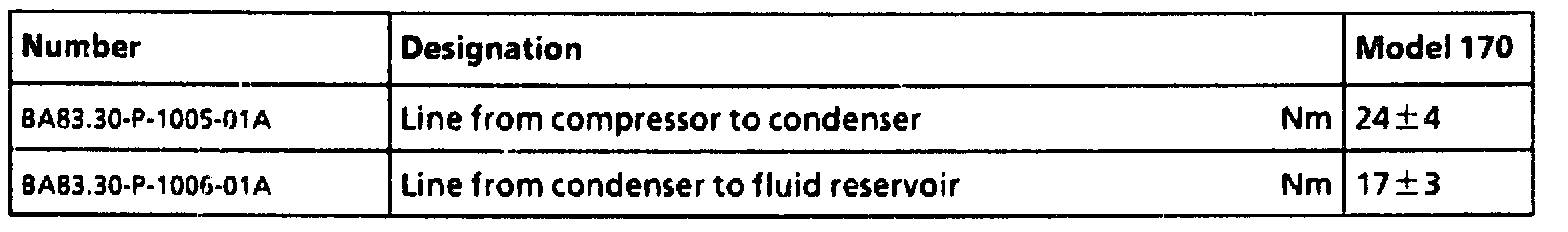

Torque Specs:

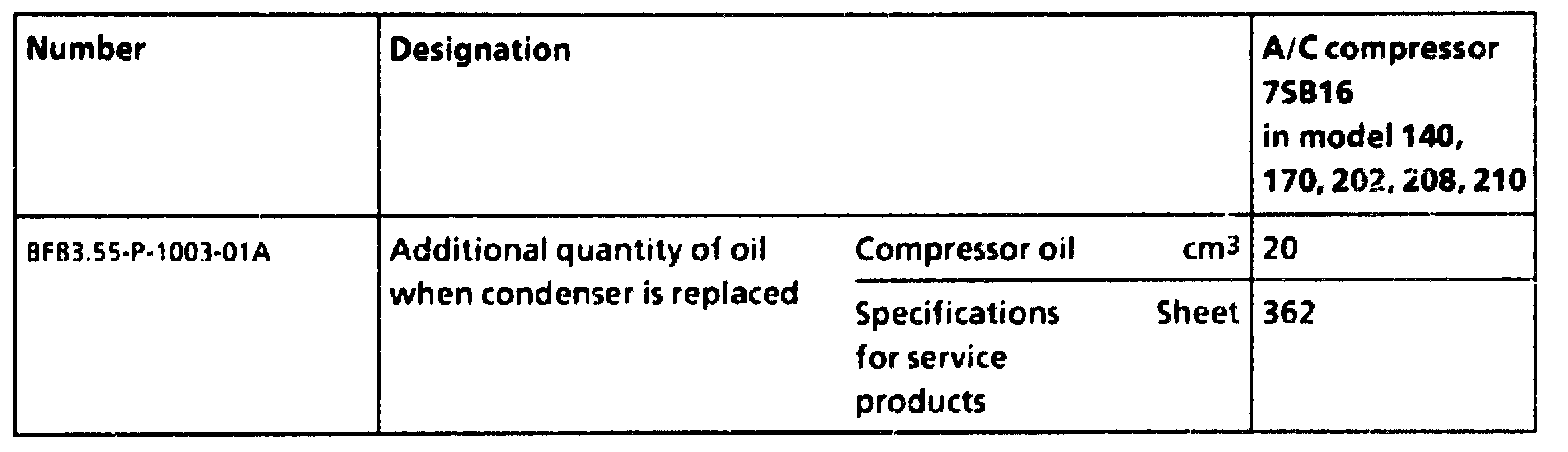

Capacity Specs:
