Home >> Mercedes Benz >> 2004 >> SLK 32 AMG (170.466) V6-3.2L SC (112.960) >> Repair and Diagnosis >> Heating and Air Conditioning >> Expansion Valve >> Service and Repair

Expansion Valve: Service and Repair



Removing and installing expansion valve

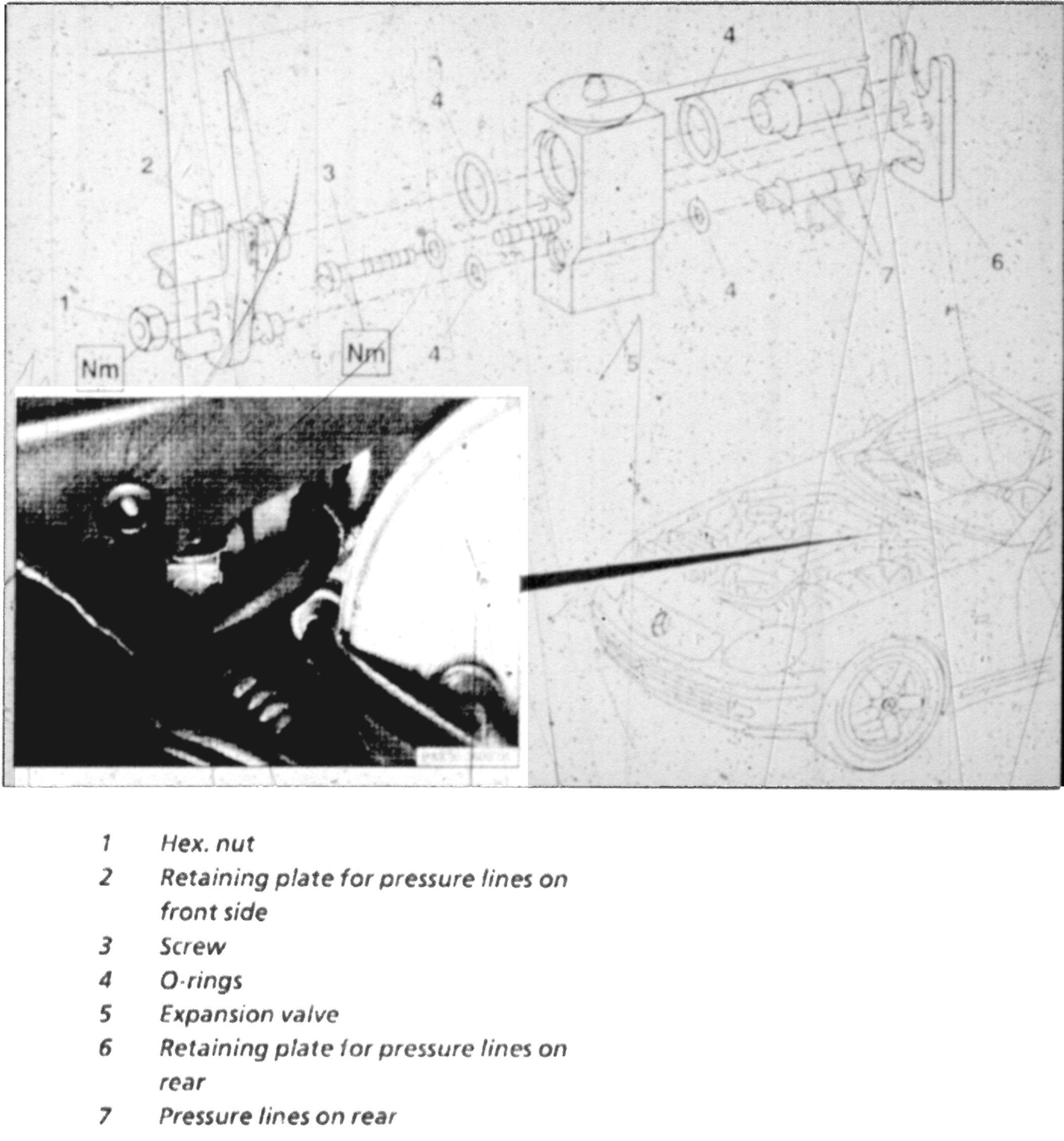

Component ID:

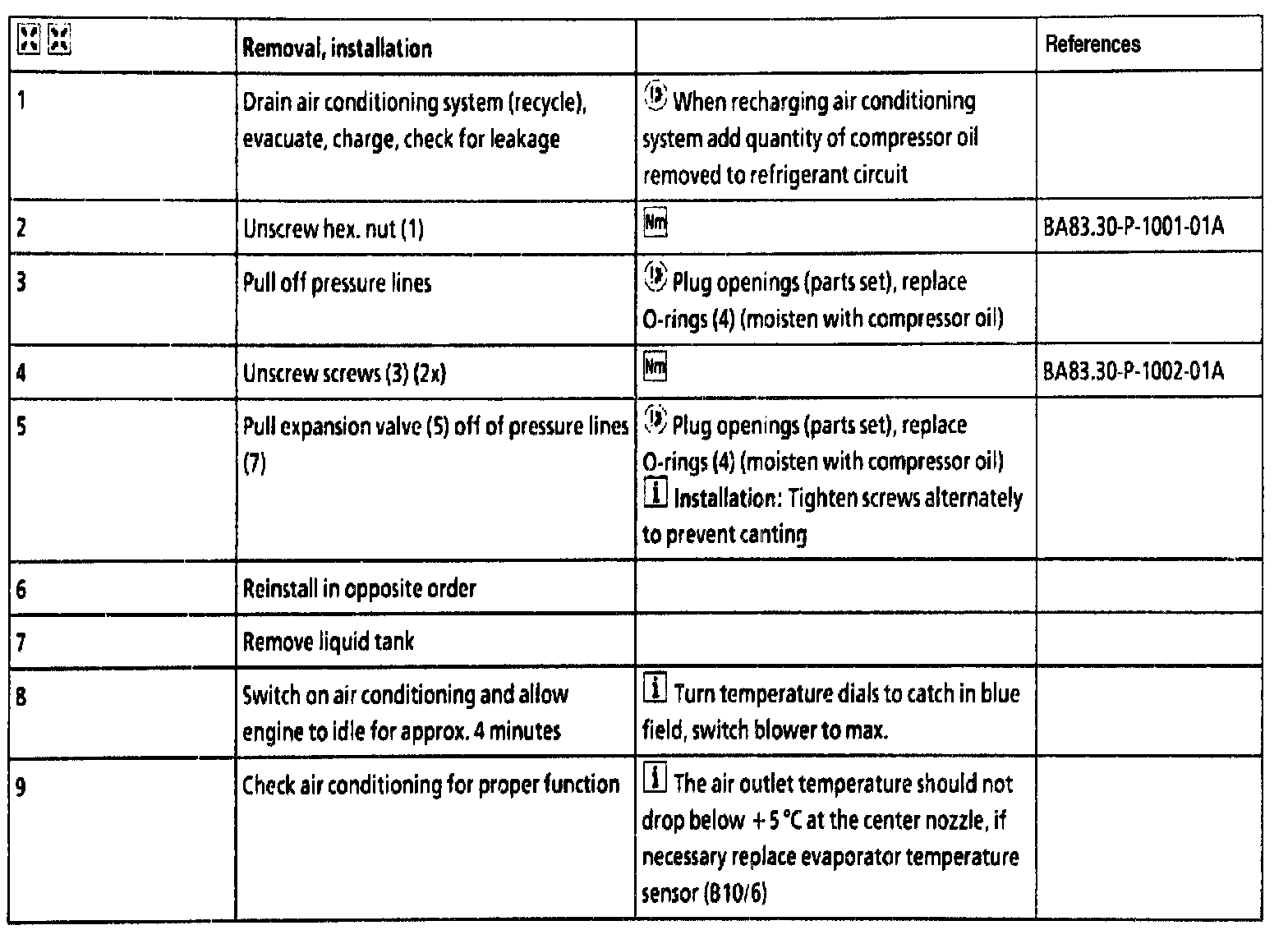

Remove, Install:

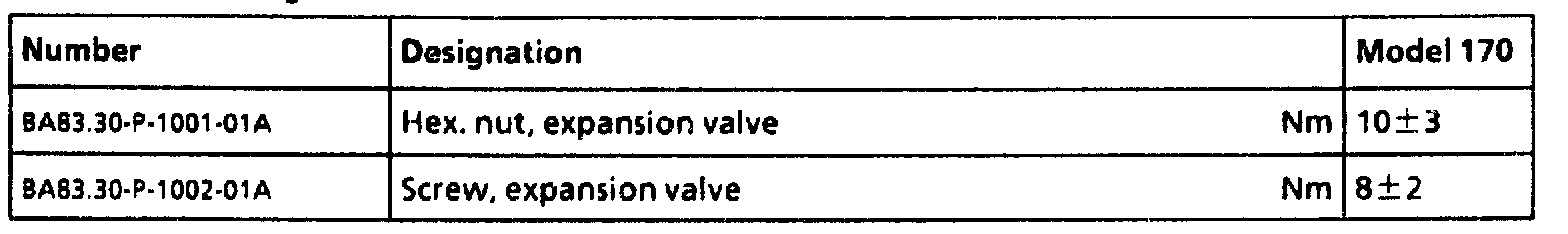

Torque Specs:
