Heater Control Valve: Service and Repair



Removing and Installing Duo Valve

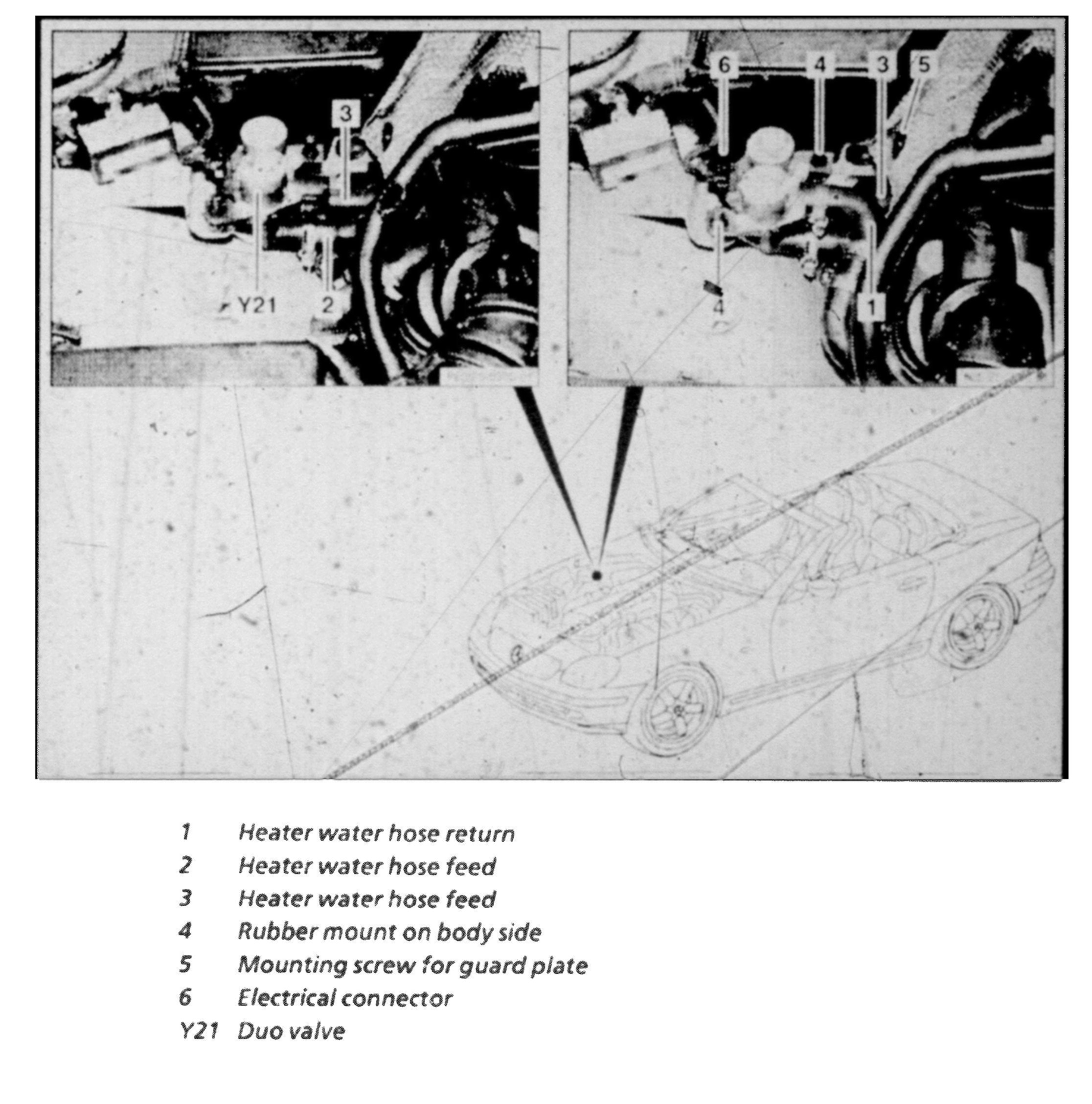

Component Identification

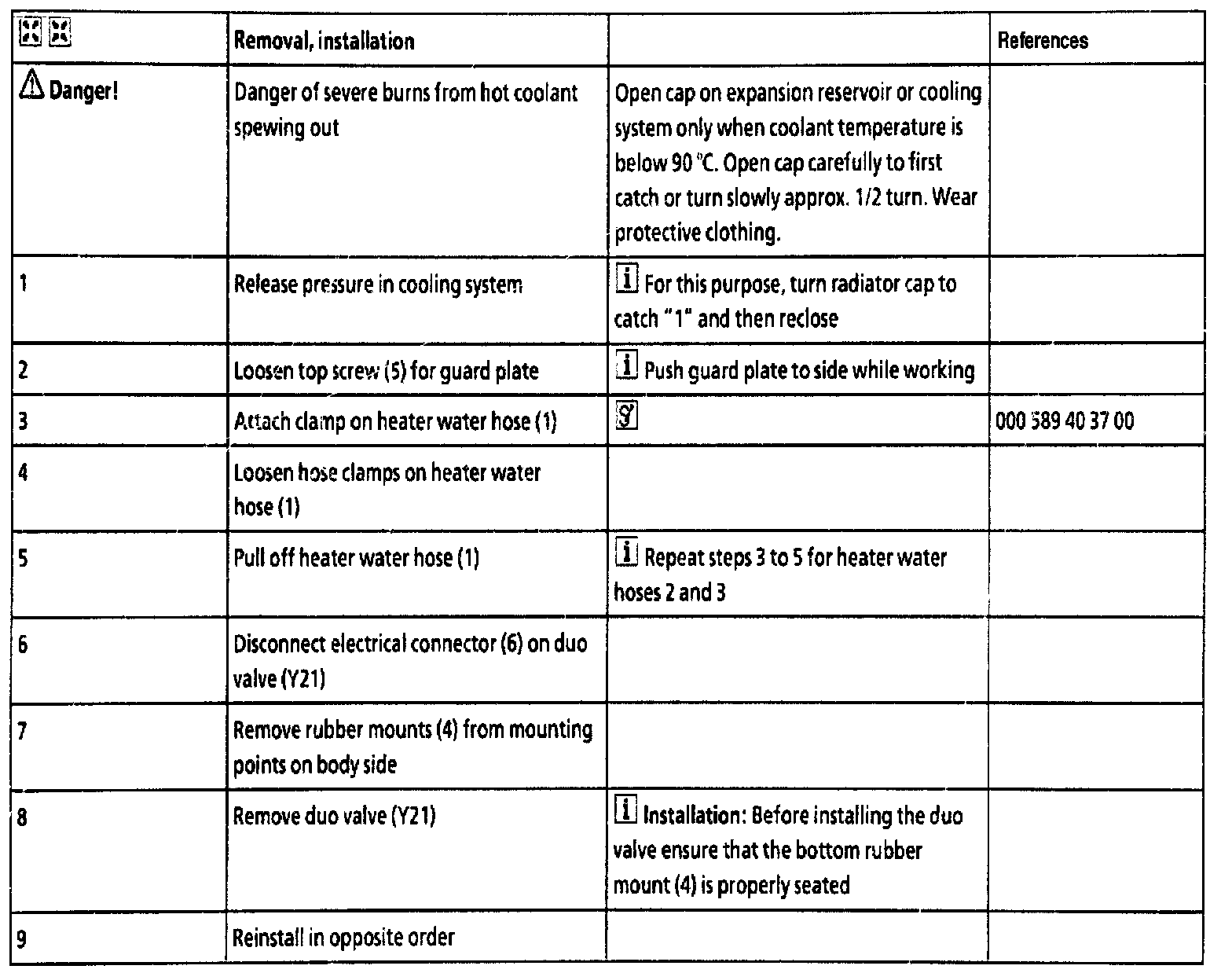

Removal, installation

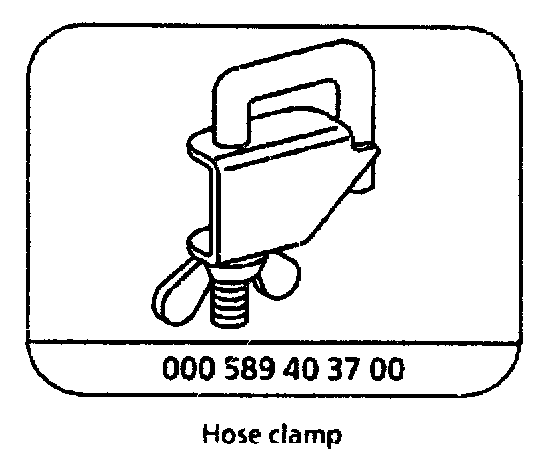

Special tools
