Heated Glass Element: Diagrams
Rear Window Defroster

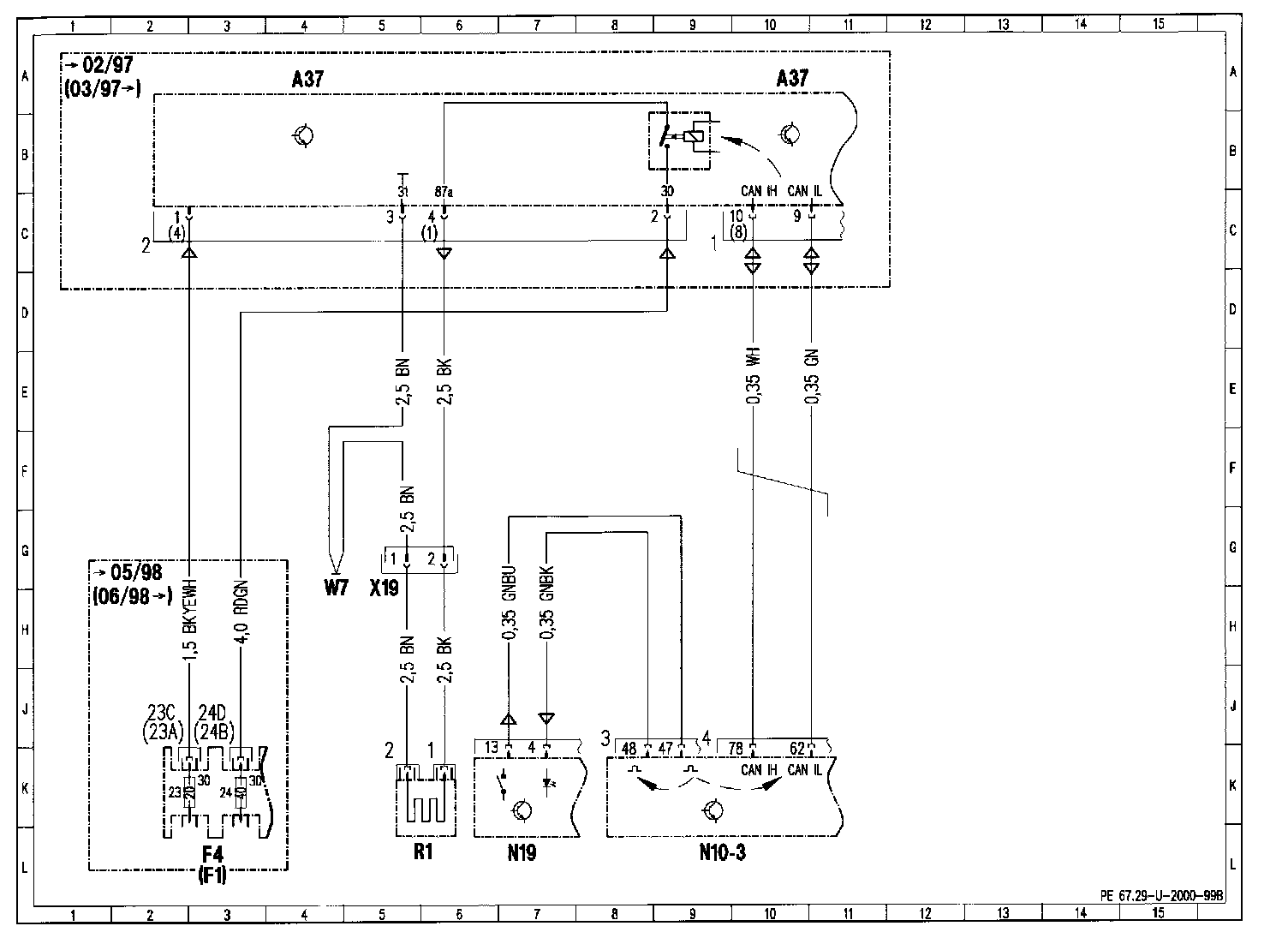

Wiring Diagram

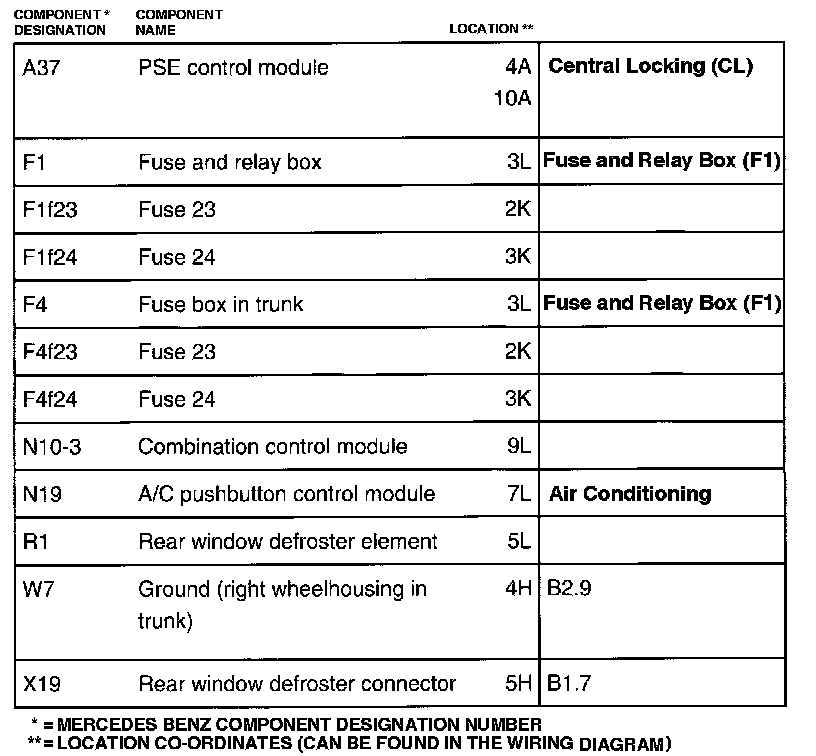

Component Grid Location
A37 - X19:

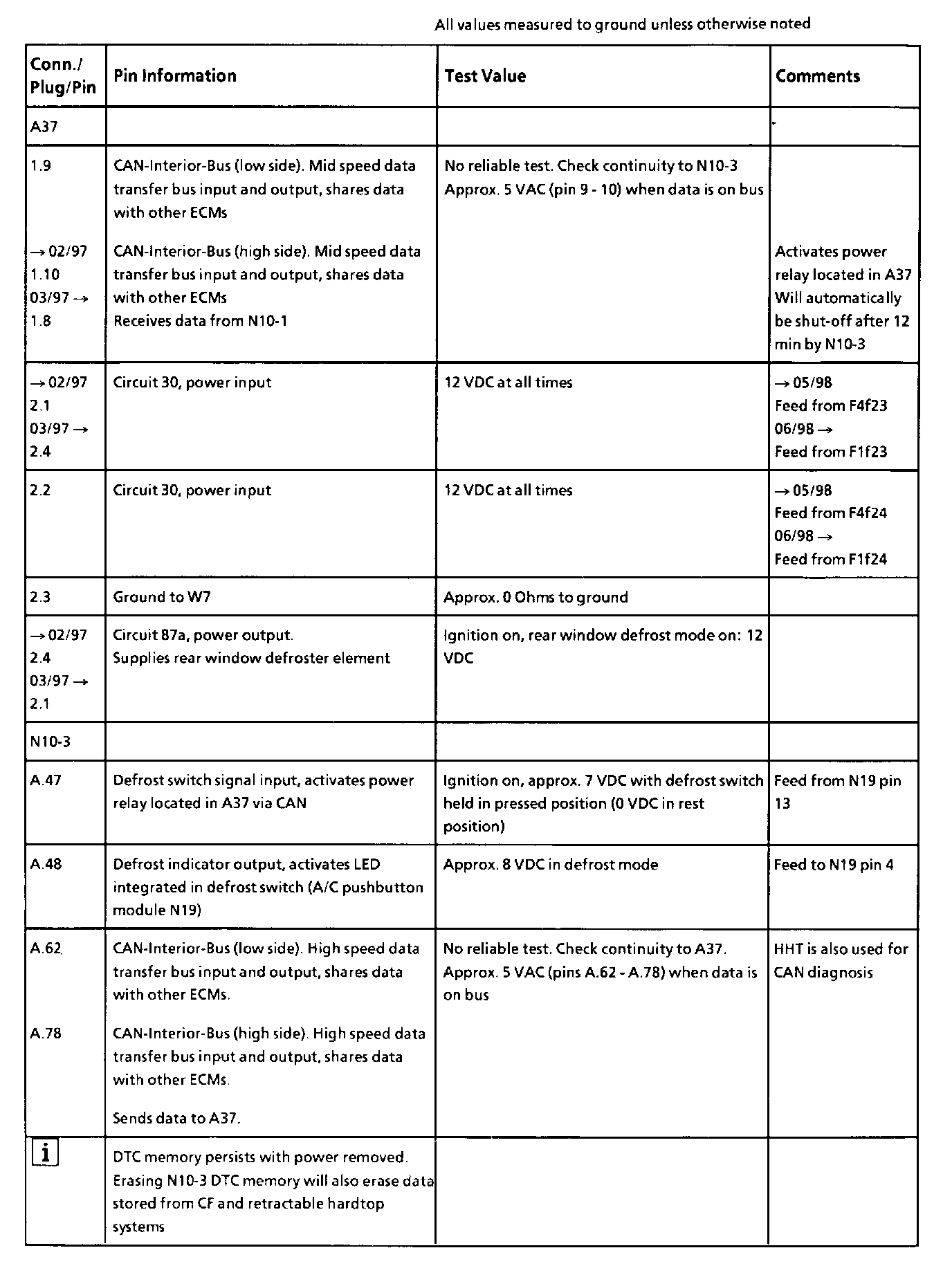

Pin-Out Testing - Component: A37
Connector A - Pin 37 Through A - Pin 78:
Connector Views:
Rear Window Defroster
Wiring Diagram
Component Grid Location
Pin-Out Testing - Component: A37
