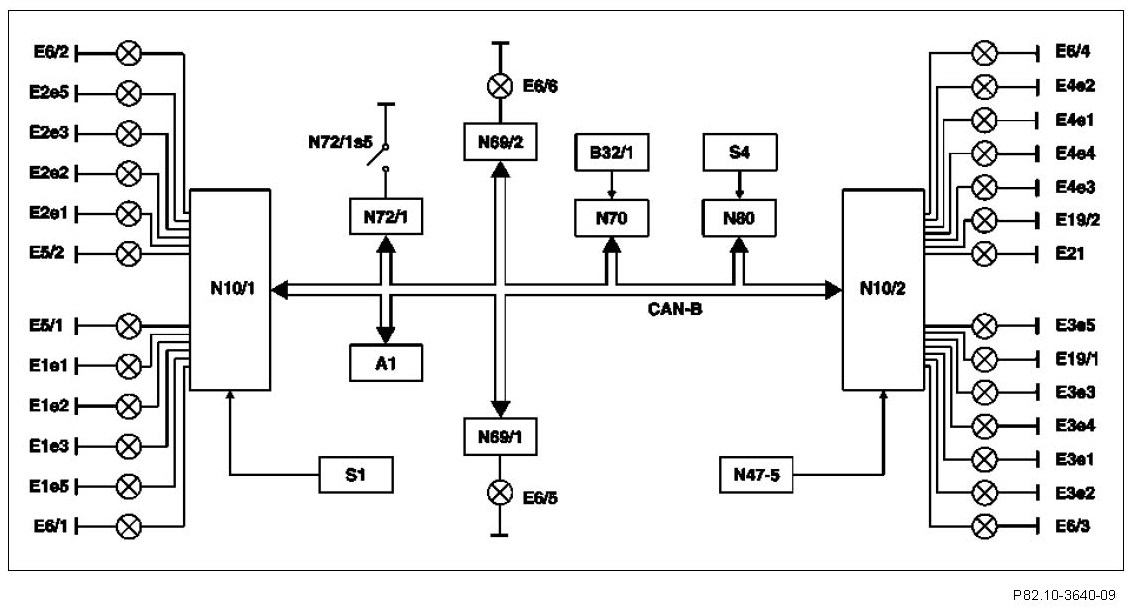

GF82.10-P-0003-01PM Exterior Lights, Interlinkage of Components
GF82.10-P-0003-01PM Exterior Lights, Interlinkage Of Components
MODEL 203.0 /2 /7 as of 1.7.02 up to Model Year 8
except CODE (550) Trailer device
CAN-B Control Area Network bus class B (interior)
A1 Instrument cluster
B32/1 Automatic light switch daylight sensor
E1e1 Left high beam
E1e2 Left low beam
E1e3 Left standing and parking lamp
E1e5 Left turn signal lamp
E2e1 Right high beam
E2e2 Right low beam
E2e3 Right standing and parking lamp
E2e5 Right turn signal lamp
E3e1 Left turn signal lamp
E3e2 Left taillamp and parking lamp
E3e3 Left backup lamp
E3e4 Left stop lamp
E3e5 Left rear fog lamp
E4e1 Right turn signal lamp
E4e2 Right taillamp and parking lamp
E4e3 Right backup lamp
E4e4 Right stop lamp
E5/1 Left fog lamp
E5/2 Right fog lamp
E6/1 Left front side-marker lamp United States of America
E6/2 Right front side-marker lamp United States of America
E6/3 Left rear side-marker lamp United States of America
E6/4 Right rear side-marker lamp United States of America
E6/5 Left outside mirror turn signal lamp
E6/6 Right outside mirror turn signal lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
E21 Center high-mounted stop lamp
N10/1 Front SAM control unit with fuse and relay module
N10/2 Rear SAM control unit with fuse and relay module
N47-5 ESP and BAS control unit
N69/1 Left front door control unit
N69/2 Right front door control unit
N70 Overhead control panel control unit
N72/1 Upper control panel control unit
N72/1s5 Hazard warning system switch
N80 Steering column module
S1 Lamp switch module
S4 Combination switch
Extension with code (550) trailer hitch
CAN-B Control Area Network bus class B (interior)
E3e1 Left turn signal lamp
E3e2 Left taillamp and parking lamp
E3e4 Left stop lamp
E3e5 Left rear fog lamp
E4e1 Right turn signal lamp
E4e2 Right taillamp and parking lamp
E4e3 Right backup lamp
E4e4 Right stop lamp
E19/1 Left license plate lamp
E19/2 Right license plate lamp
N10/2 Rear SAM control unit with fuse and relay module
N28/1 Trailer recognition control unit
X58 Trailer hitch socket (13-pin)
